Customer Satisfy is the eternal pursue of corporation.
Brand Name: | NO |
Certification: | ISO |
Model Number: | K04 |
Minimum Order Quantity: | 1PC |
---|---|
Price: | DISCUSS |
Packaging Details: | neutral packing |
Delivery Time: | 3-7 DAYS |
Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
Supply Ability: | 1000PCS |
1.Model:K04 forward

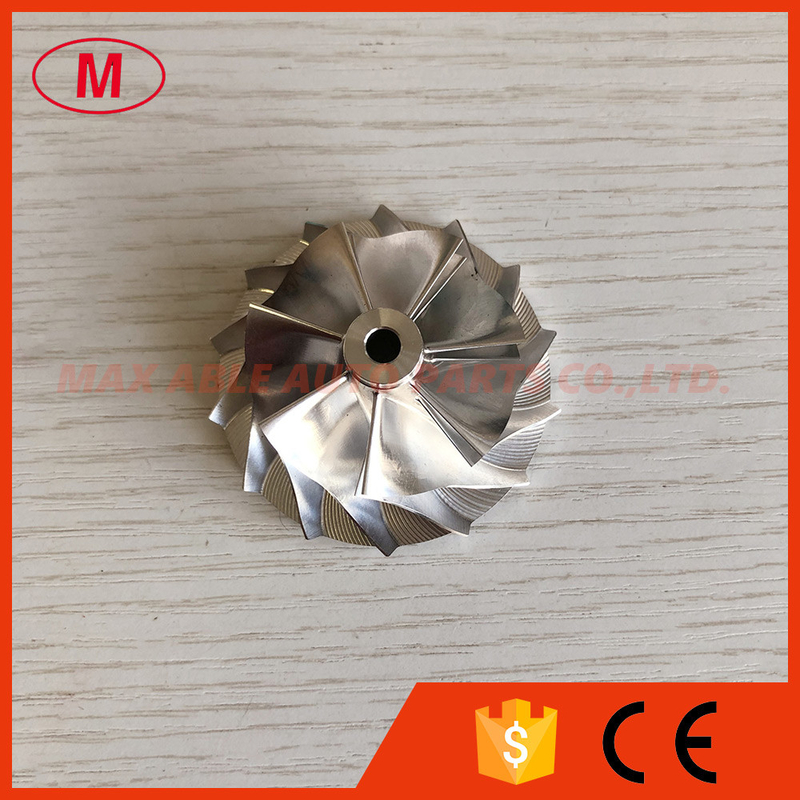

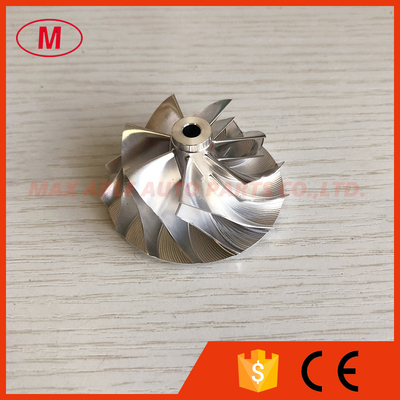

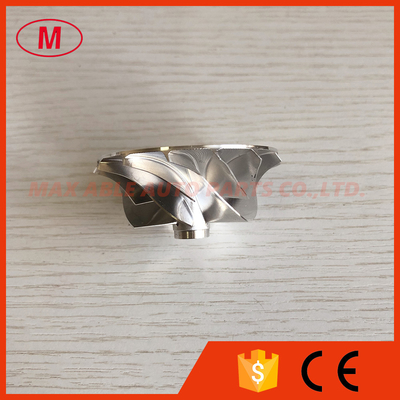

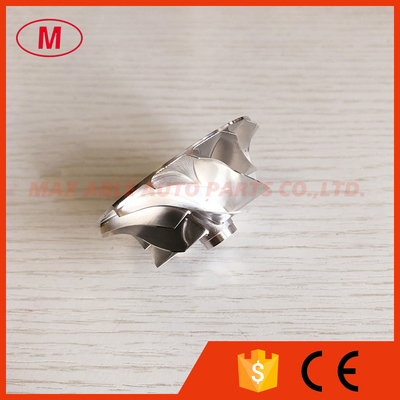

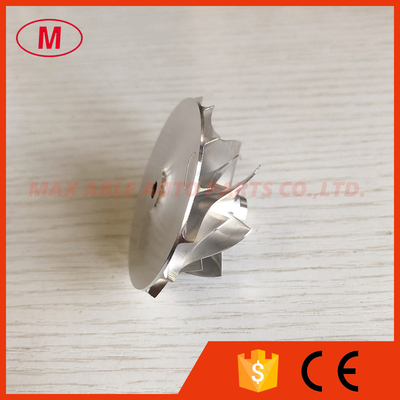

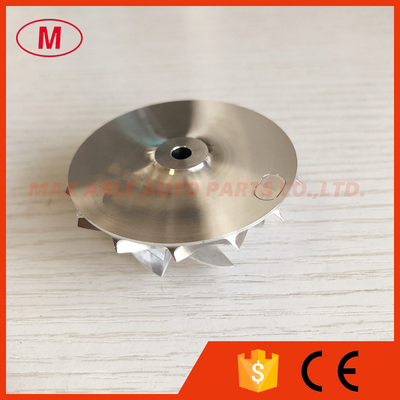

2.K04 39.00/52.00mm 7+7 blades turbo milling/aluminum 2618/billet compressor wheel
3.SIZE:
inducer:39.00mm
Exducer:52.00mm
Nose diameter:10.87mm
Tapered tip exducer:55.00mm
Tip height:3.60mm
Superback:1.80mm
Overall height:25.70mm
bore size :4.61mm
Trailing angle:70
Cutback:0.0
SP Height angle:-5.00
Blades height:19.58mm
Splitter height:13.45mm
7+7 blades
forward rotation
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying.
4.Good quality and competitive price
5.Billet compressor wheel
6.Please send email to me or talk to me on online ,if you want to know more details.
All the compressor wheel have been balanced.
We can produce as your requirement.
