| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | MGT2056 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |
1.Model:MGT2056 reverse

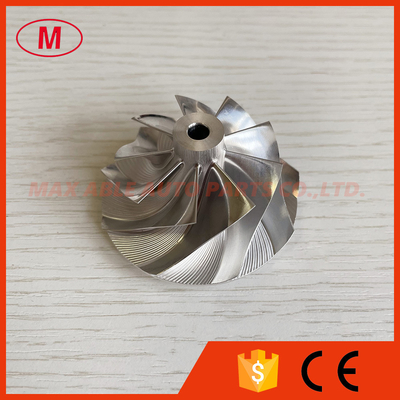

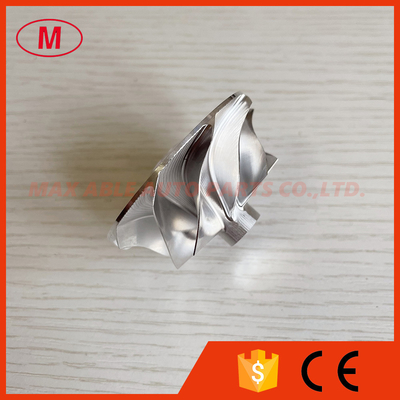

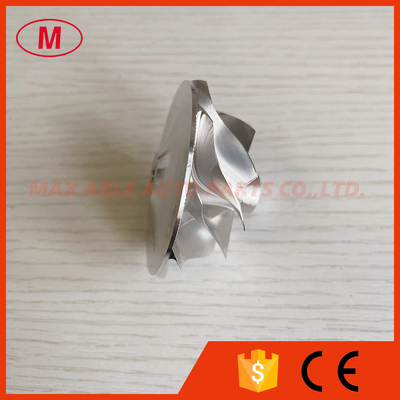

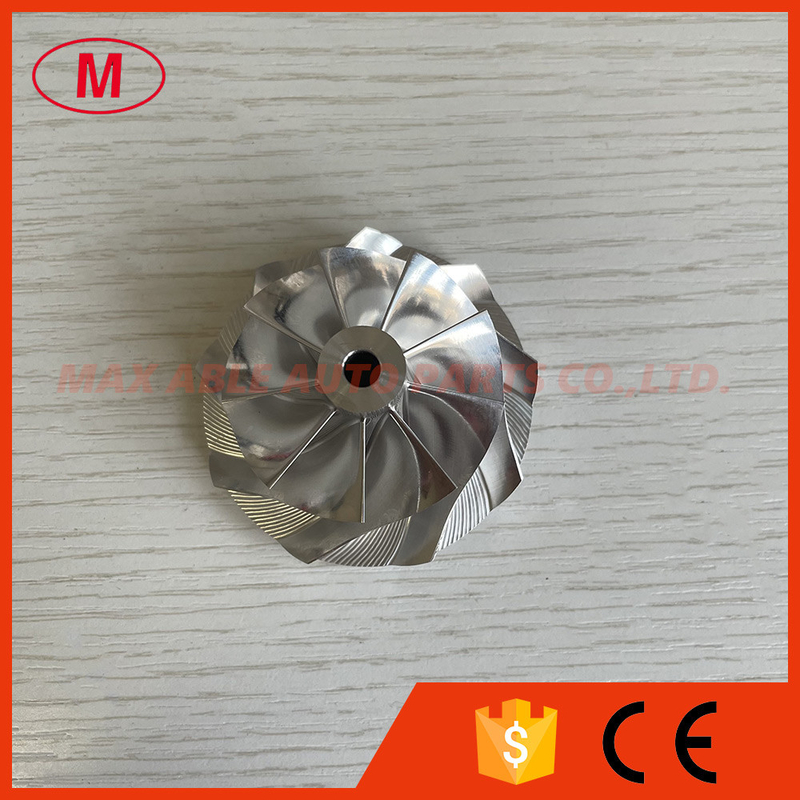

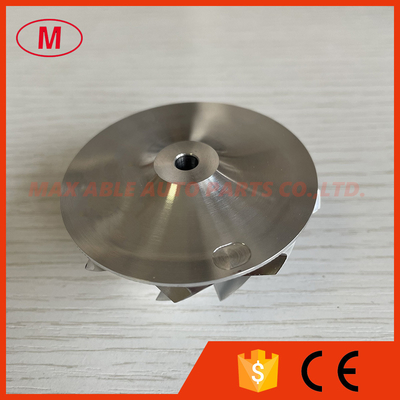

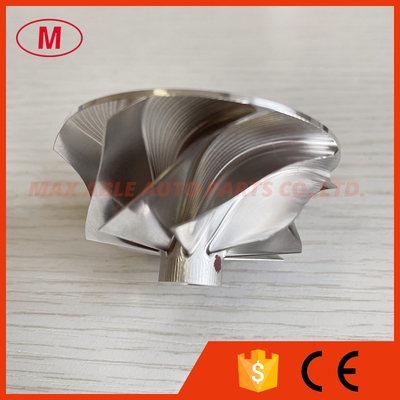

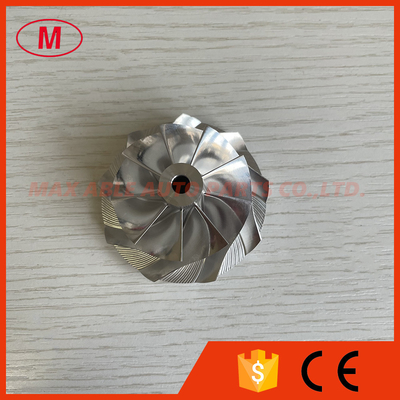

2. MGT2056 reverse 1217-02 42.27/56.02mm 9+0 Blades turbo aluminum 2618/Milling/billet compressor wheel for 851676-0004
3.Size:
Nose diameter:12.45mm
Inducer:42.27mm
Exducer:56.02mm
Tapered tip exducer:57.88mm
Tip height:4.99mm
Trailing angle:60 degree
Superback:3.81mm
Cutback:6.5mm
Overall height:30.90mm
Bore:5.08mm
bore type:through
SP Height angle:0.00
Blades height:21.55mm
Splitter height:0.00mm
9+0 blades
Tapered tip angle:13.6 degree
reverse rotation
It is for OE compressor housing
4.Good quality and competitive price
5.if you want to know more details ,please send email to me !
6.Application:
851676-0004
All the compressor wheels have been balanced.
