| Brand Name: | NO |
| Model Number: | T04E |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
| Size: | 53.87/76.07mm | Type: | Turbochargers |
|---|
1. MODEL:T04E FORWARD

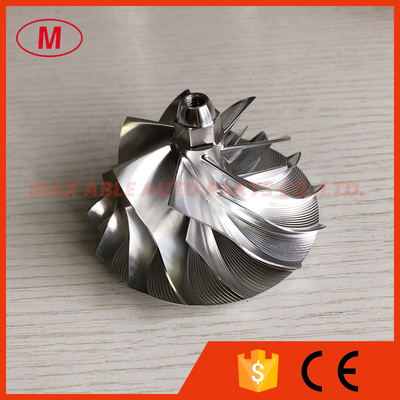

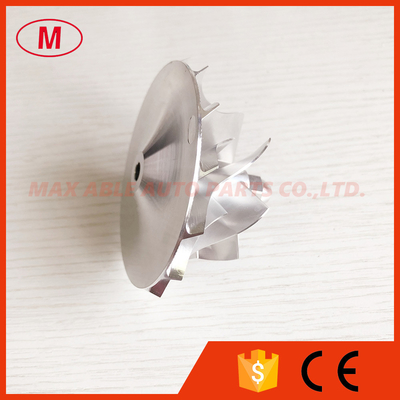

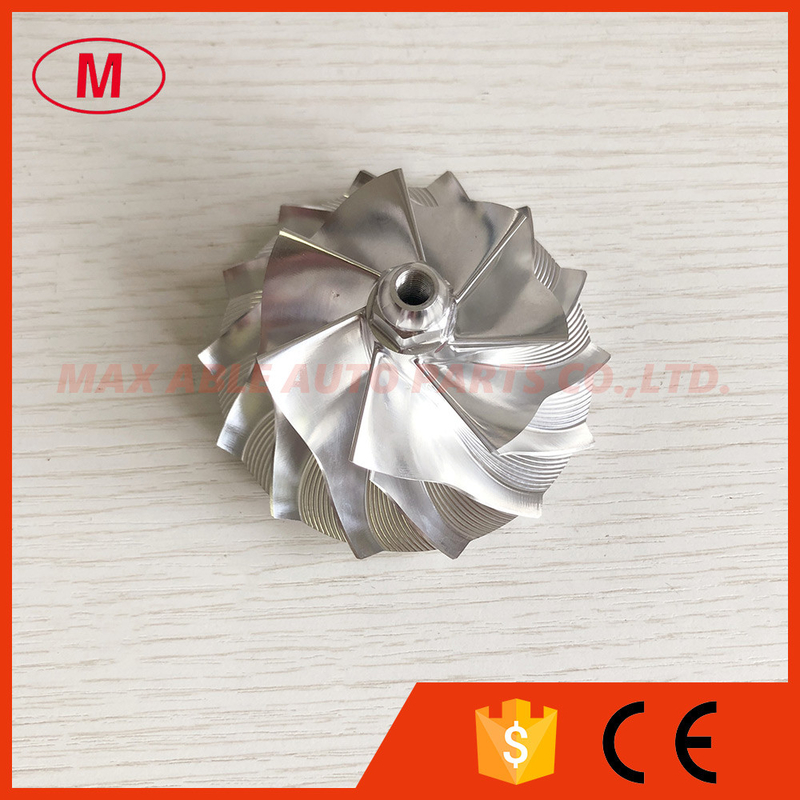

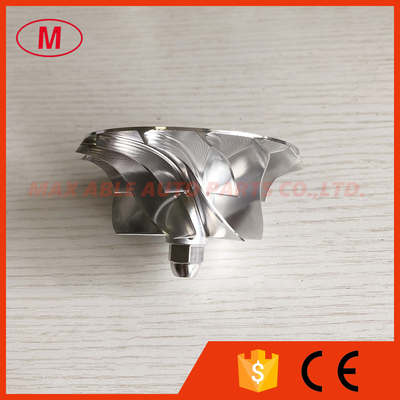

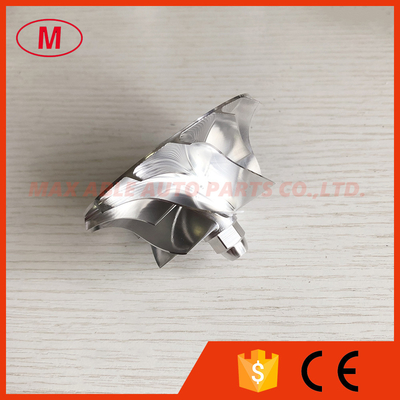

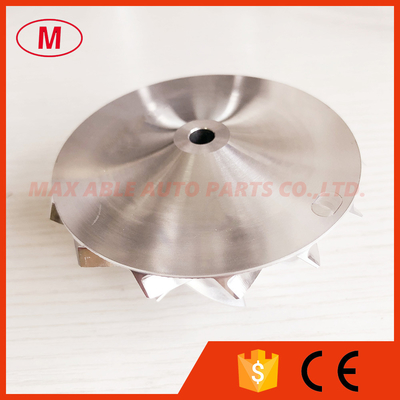

2.T04E 7+7 blades 53.87/76.07mm 448048-0004 high performance Bullet Head turbocharger milling/aluminum 2618/billet compressor wheel for 451567-0001/452240-0001/466575-0001/466575-0002
3.Size:
Nose diameter:15.28mm
inducer:53.87mm
Exduder:76.07mm
Tapered tip exducer:81.22mm
Tip height:5.46mm
Superback:4.97mm
Overall height:51.00mm
bore size :6.35mm
Bore type:Threaded 1/4-28G-LHT
Trailing Angle:45 degree
Cutback:0.0
SP Height angle:-5.80
Blades height:31.69mm
Splitter height:18.00mm
7+7 blades
forward rotation
Tapered tip angle:30 degree
It is fit for OE compressor housing
Application:
451567-0001
452240-0001
466575-0001
466575-0002
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
All the billet compressor wheels have been balanced.
The more models we also have.
