Max Able Auto Parts Co.,Ltd.
Customer Satisfy is the eternal pursue of corporation.
Customer Satisfy is the eternal pursue of corporation.
 |
| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | GT4088R |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:GT4088R forward

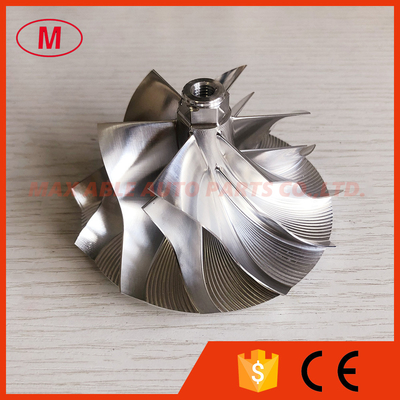

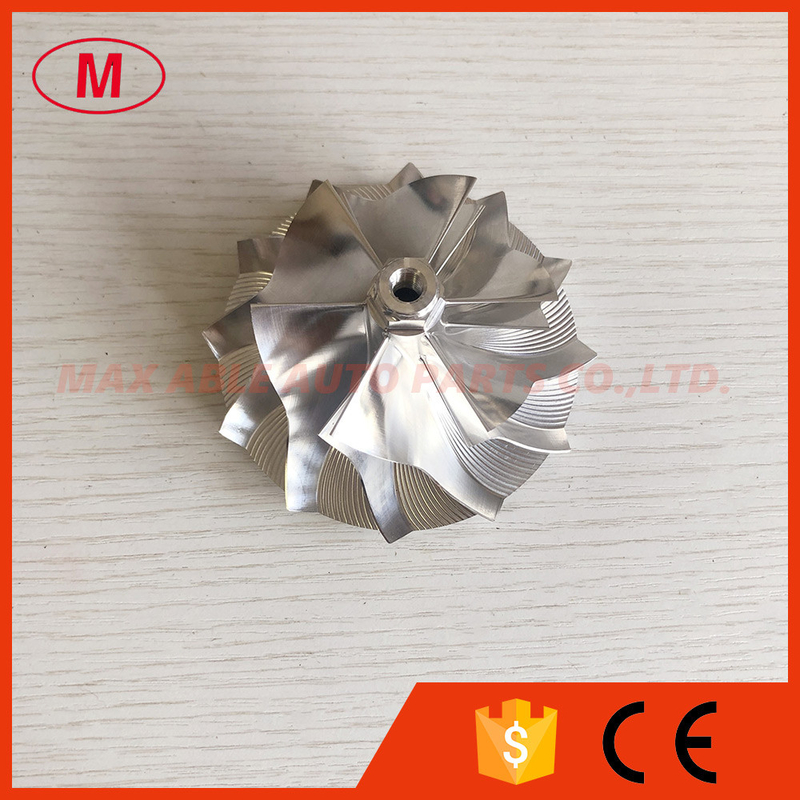

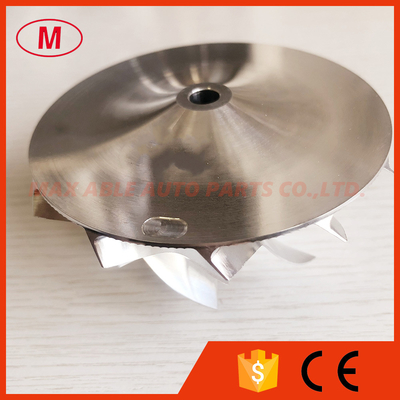

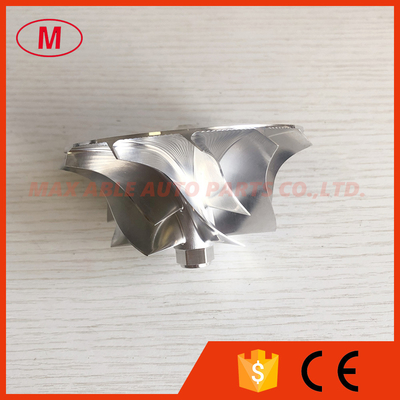

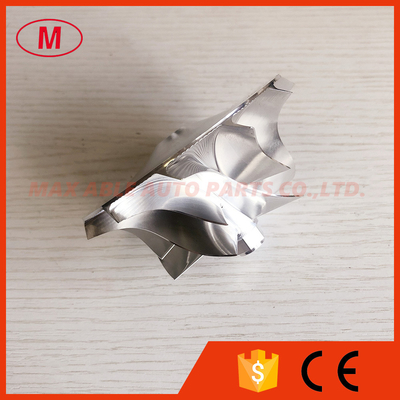

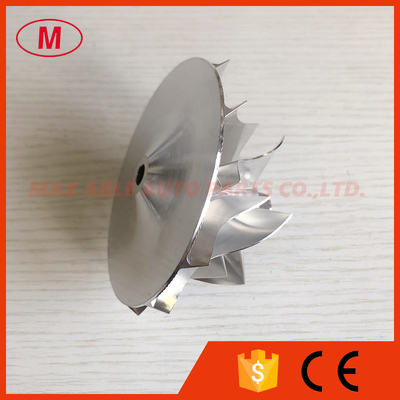

2.GT4088R 63.50/88.25mm 451583-0004 6+6 blades high performance Turbocharger milling/aluminum 2618/billet compressor wheel for racing 751470-5003
3.Size:
Nose diameter:16.07mm
inducer:63.50mm
Exducer:88.25mm
Tapered tip exducer:94.89mm
Tip height :6.75mm
superback:5.30mm
Overall height:53.43mm
Bore size:7.48mm
Trailing Angle:50
Bore type:Threaded-M7x1.0LHT
Cutback:0.0
Splitter height:28.20mm
SP height angle:-7.70
FIT for OE compressor housing
blades height:37.87mm
6+6 blades
forward rotation
Tapered tip angle:30 degree
4.High quality and competitive price.
5.Any questions please send email to me.
