1. MODEL:T04S forward

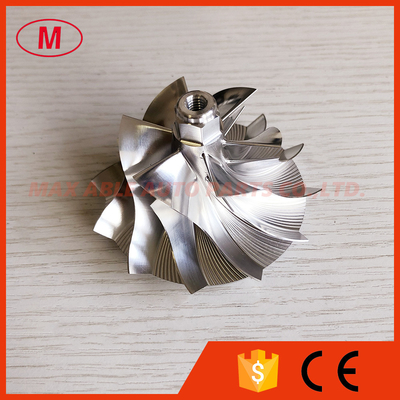

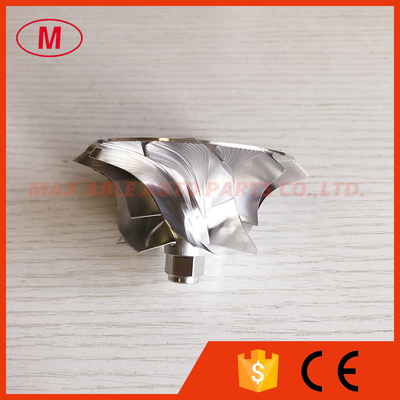

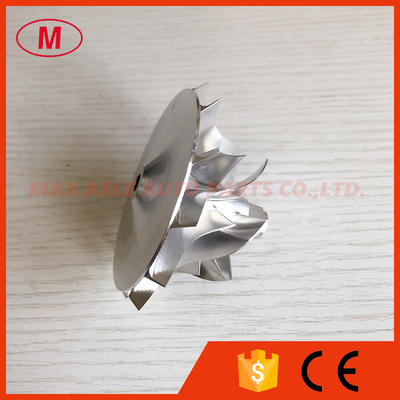

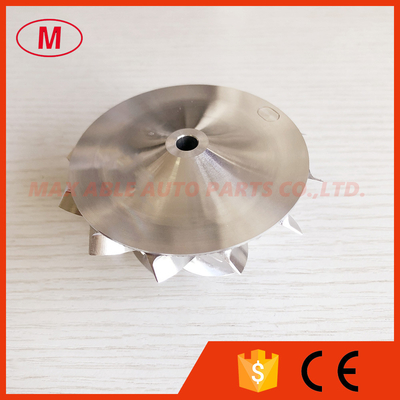

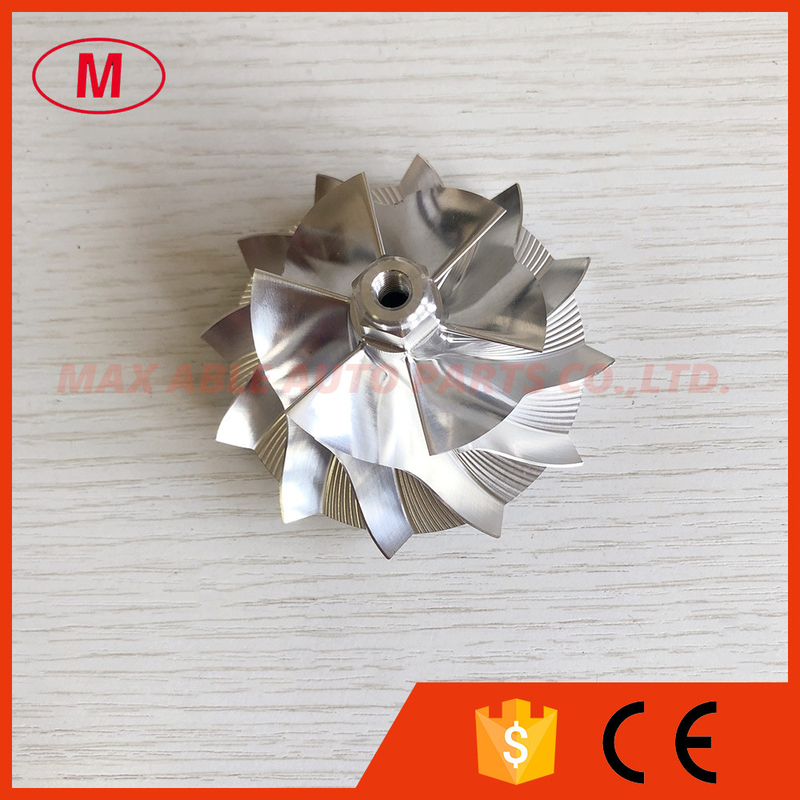

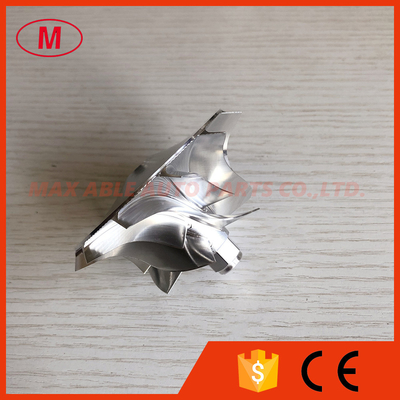

2.T04S 48.80/70.00mm 6+6 blades high performance turbo aluminum 2618/milling/Billet compressor wheel
3.Size:
Nose Diameter:15.00mm
Inducer:48.80mm
Exducer:70.00mm
Tapered tip exducer:79.60mm
Tip height:5.80mm
Superback:4.97mm
Trailing Angle:60 degree
Bore size:6.35mm
Bore type:Threaded-M6x1.0-LHT
Cutback:-8.0
Blade height:33.01mm
Splitter height:23.15mm
SP height angle:-8.00
Overall height:49.00mm
6+6 blades
Forward rotation
It is Custom size ,please check carefully before buying.
Tapered tip Angle:45 degree
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
