| Place of Origin: | CHINA |
| Brand Name: | NO |
| Model Number: | GTX3576 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
1. MODEL:GTX3576 forward

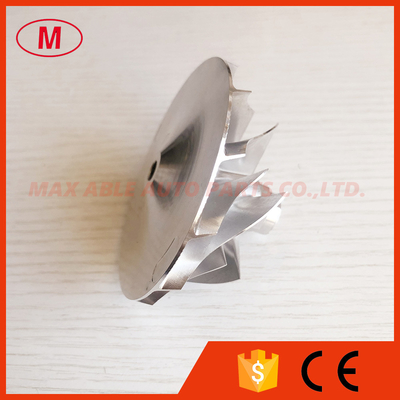

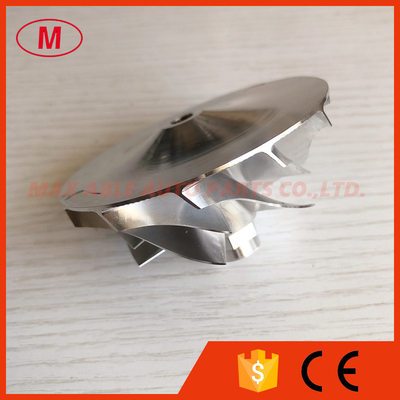

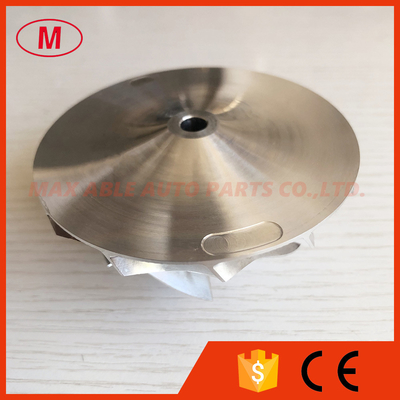

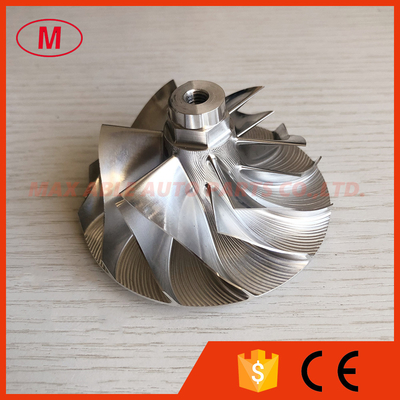

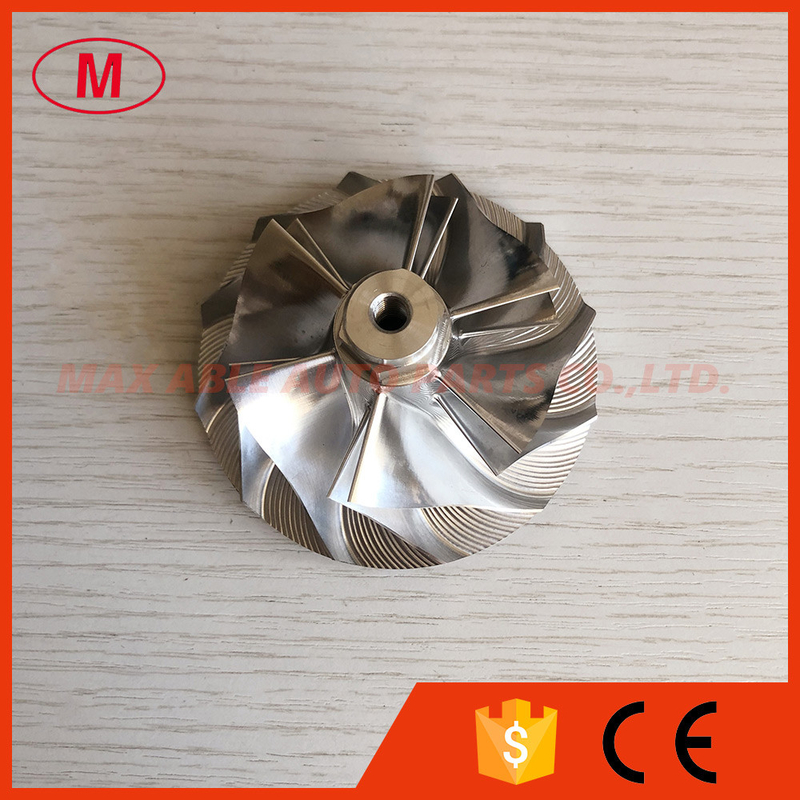

2. GTX3576 434292-0007/9 56.84/76.20mm 6+6 blades Turbocharger Milling/aluminum 2618/billet compressor wheel for 479016/702173
3.Size:
Nose Diameter:19.13mm
inducer:56.84mm
Exducer:76.20mm
Tip height:6.65mm
Overall height:42.83mm
Superback:4.57mm
Bore size:6.35mm
Bore type:Threaded-M6x1.0-LHT
Trailing angle:60
Cutback:0.0
SP Height Angle:-5.50
Blades height:25.84mm
Splitter Height:18.90mm
6+6 blades
Forward rotation
Tapered tip angle:0 degree
Fits OE Compressor Housing
4.High quality and competitive price.
5.Any questions please send email to me.
We have more size ,if you want ,please don't hesitate to contact me
