| Place of Origin: | CHINA |
| Brand Name: | NO |
| Model Number: | GTA4718 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
1. MODEL:GTA4718 forward

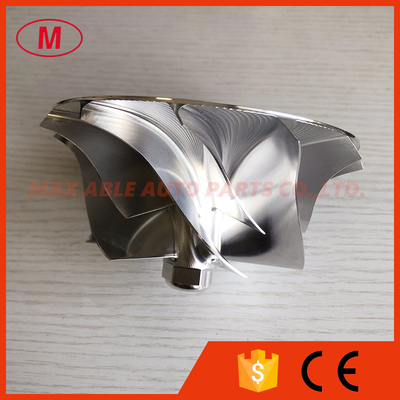

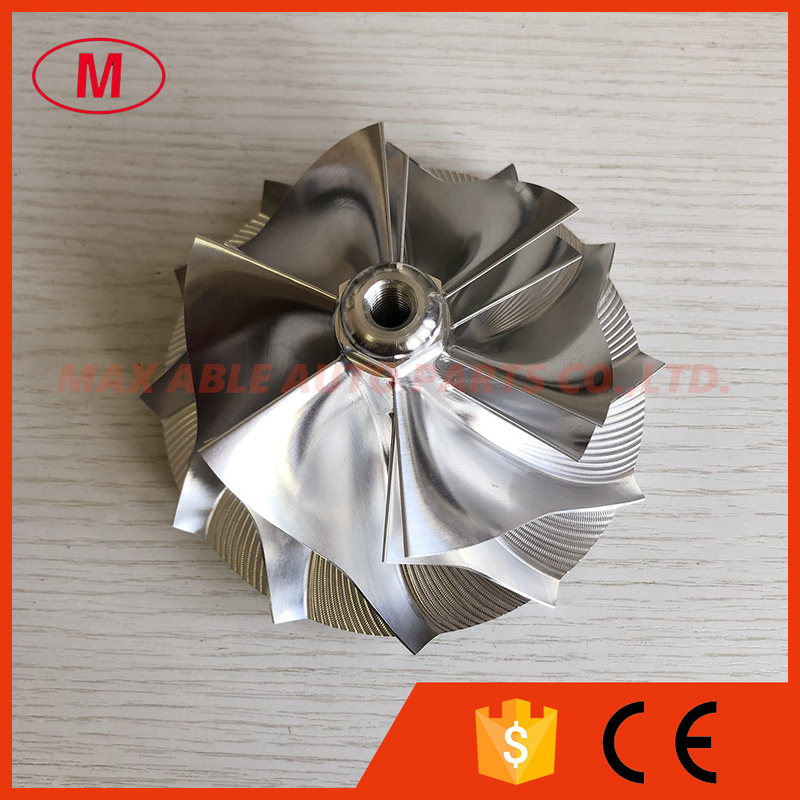

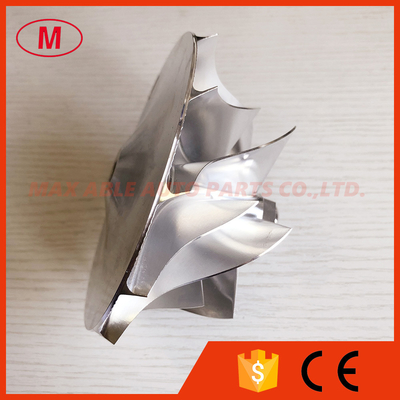

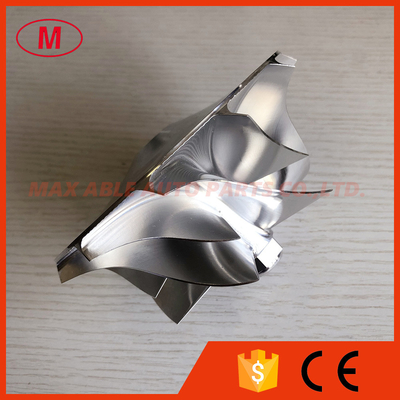

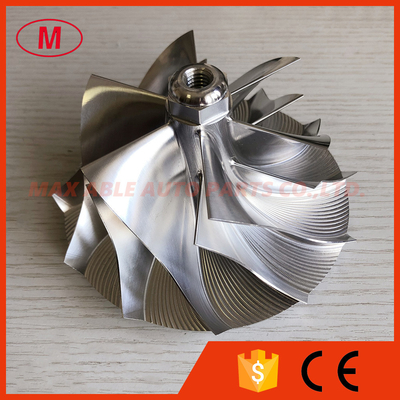

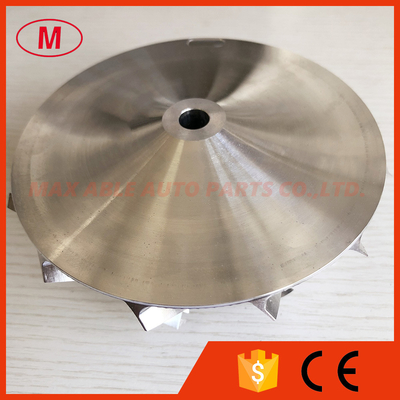

2.GTA4718 763739-0001 87.80/117.57mm 6+6 blades high performance Turbo Billet/aluminun 2618/milling compressor wheel
3.Size:
Nose diameter:22.21mm
inducer:87.80mm
Exduder:117.57mm
Tapered tip exducer:125.43mm
Tip height:7.80mm
Superback:8.08mm
Bore size :9.50mm
Overall height:70.72mm
Bore type:Threaded-M9x1.5-LHT
Cutback:0.0
Trailing Angle:60
Blade height:50.22mm
6+6 blades
Forward rotation
It is for OE compressor housing
Tapered tip angle:30 degree
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
