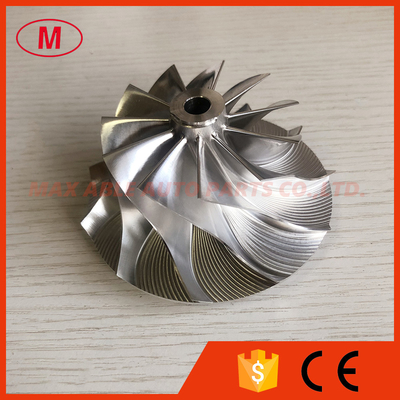

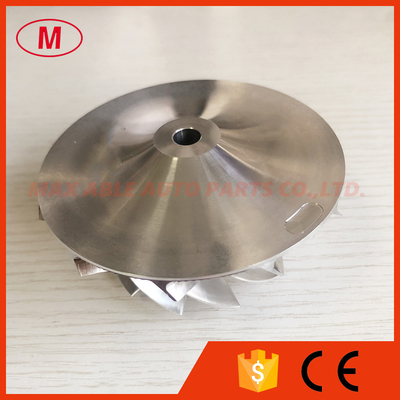

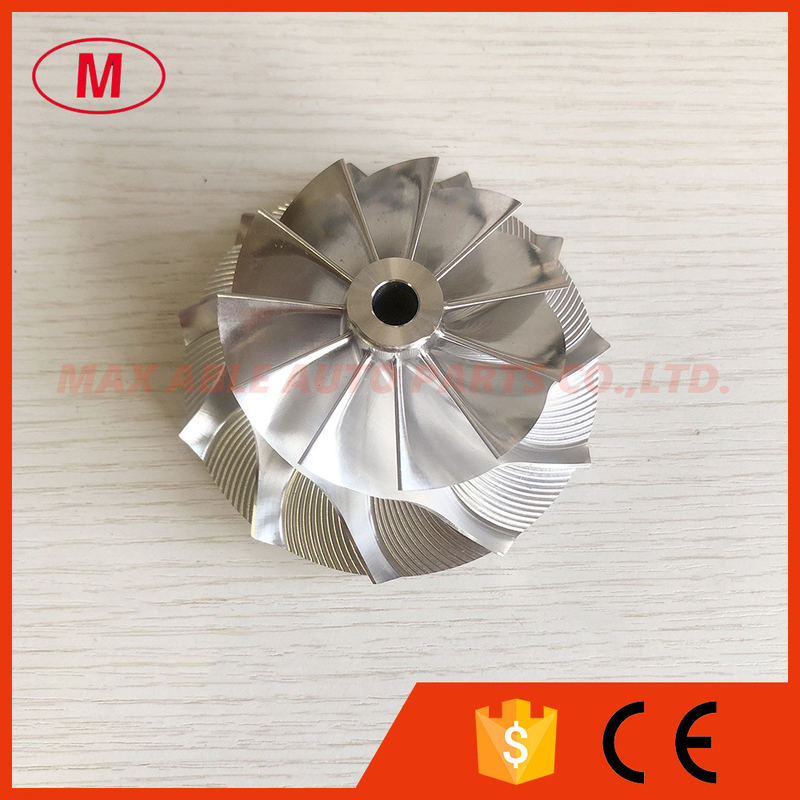

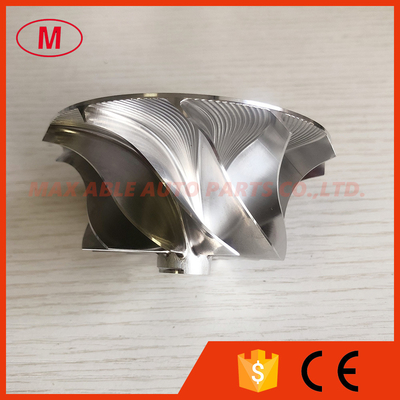

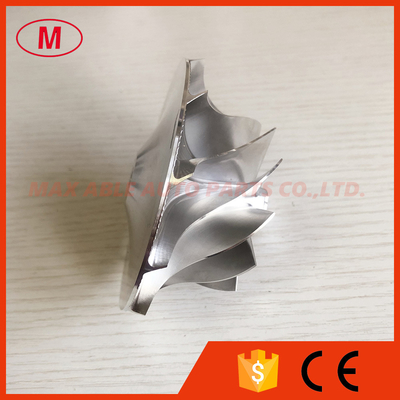

S300 173297 63.00/88.48 mm 11+0 blades turbo milling/aluminum 2618/billet compressor wheel for 177283(S300SX3-63)

1. MODEL:S300 Forward

2. S300 173297 63.00/88.48 mm 11+0 blades turbo milling/aluminum 2618/billet compressor wheel for 177283(S300SX3-63)

3.Size:

Nose Diameter:16.65mm

inducer:63.00mm

Exducer:88.48mm

Tapered tip exducer:92.07mm

Tip height:6.52mm

Superback:6.98mm

Overall height:48.75mm

Bore size:8.01mm

Trailing Angle:45

Cutback:0.0

SP height angle:.0.00

Blade height:36.09mm

Splitter height:0.00mm

11+0 BLADES

Tapered tip angle:18 degree

FIT for OE compressor housing

4.High quality and competitive price.

5.Any questions please send email to me.
