| Brand Name: | NO |
| Model Number: | TD04 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Type: | Turbochargers |
|---|

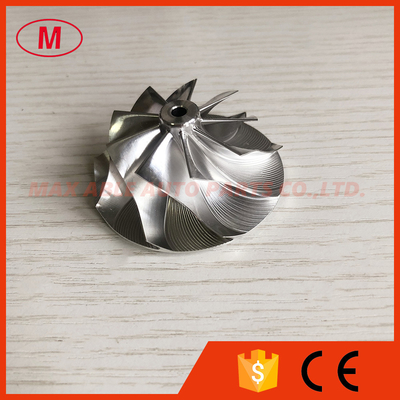

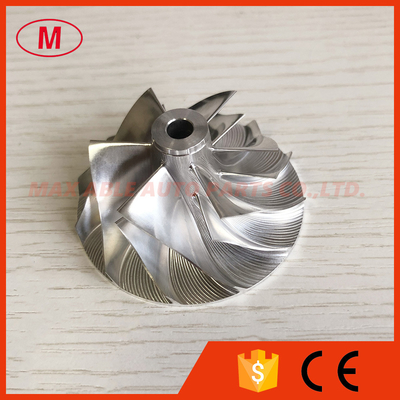

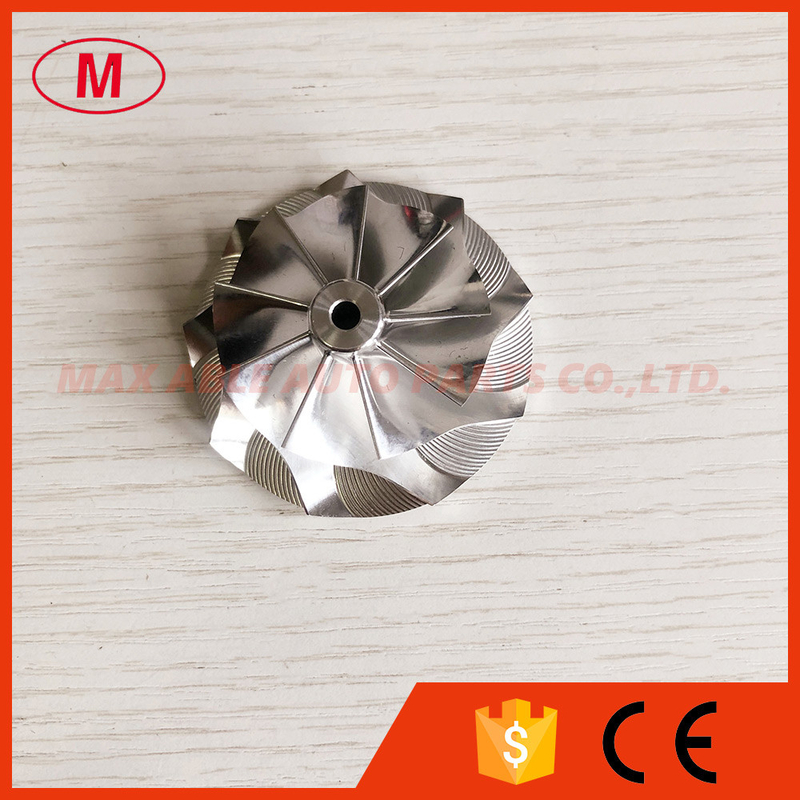

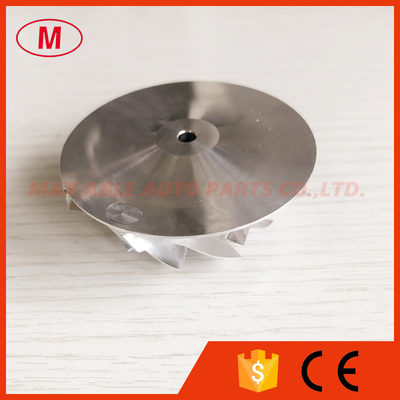

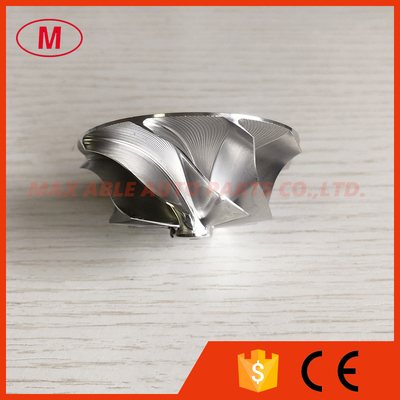

1.Model:TD04 forward
3.Size:
Nose diamter:10.91mm
inducer:40.75mm
Exduder:56.02mm
Tapered tip exducer:57.36mm
Tip height:4.66mm
Superback:1.83mm
bore size :4.00mm
Overall height:25.71mm
Trailing Angle:34
Cutback:6.0
SP height angle:0.00
Blades height:21.17mm
Splitter height:0.00mm
It is custom size,please check carefully before buying.
9+0 blades
Forward rotation
Tapered tip angle:10 degree
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
