| Brand Name: | NO |
| Model Number: | TD04HL |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:TD04HL reverse

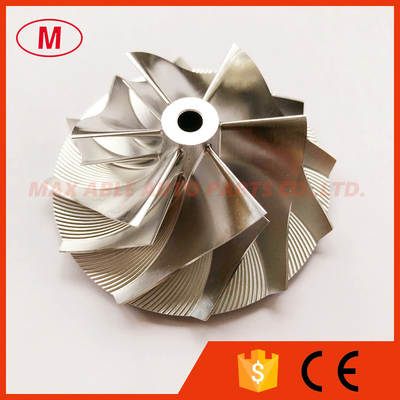

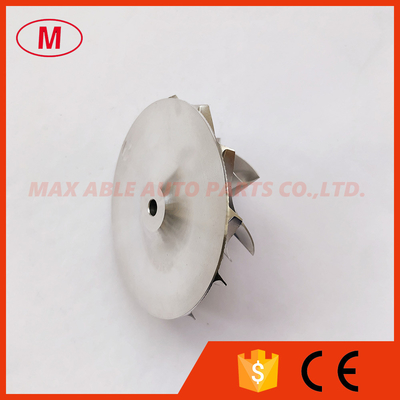

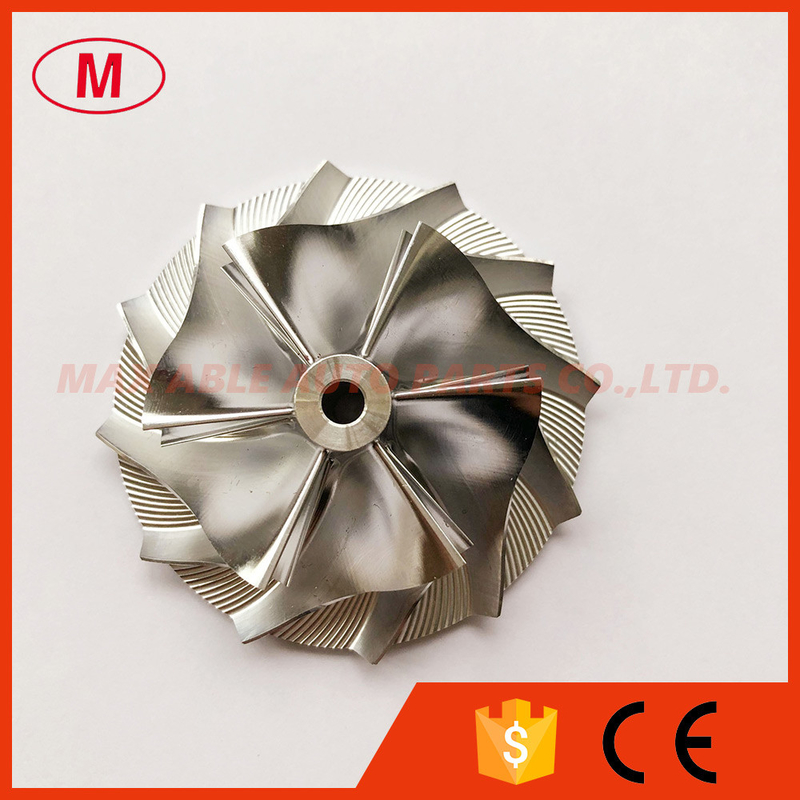

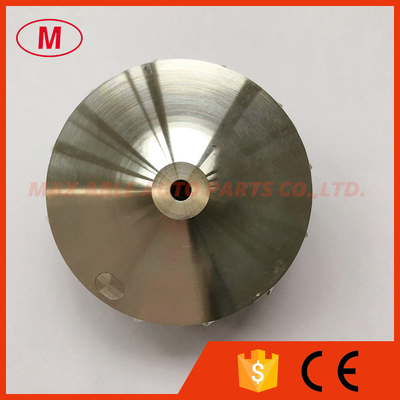

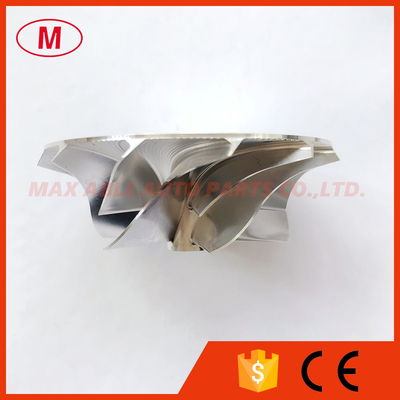

2. TD04HL reverse 47.00/66.00mm 6+6 blades high performance turbo Milling/aluminum 2618/billet compressor wheel
3.Size:
Nose Diameter:11.36mm
inducer:47.00mm
Exducer:66.00mm
Tapered tip exducer:69.48mm
Tip height:4.01mm
Overall height:26.13mm
Superback:1.90mm
Bore size:5.00mm
Trailing angle:60
Cutback:0.0
SP height angle:-3.50
Blades height:22.10mm
Splitter height:14.90mm
6+6 blades
Reverse rotation
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.Any questions please send email to me.
We have more size ,if you want ,please don't hesitate to contact me.
