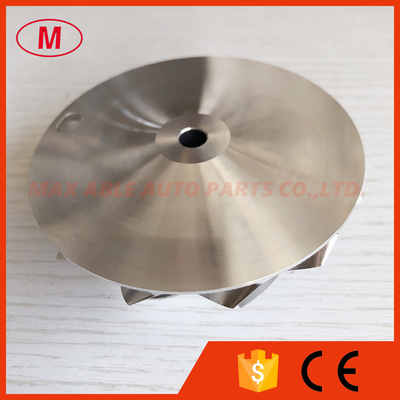

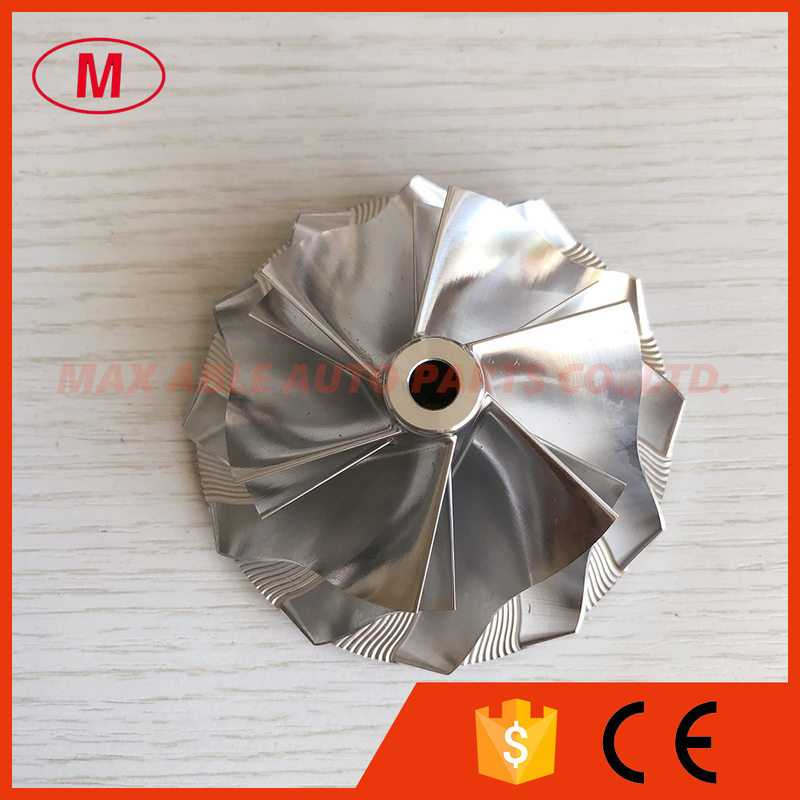

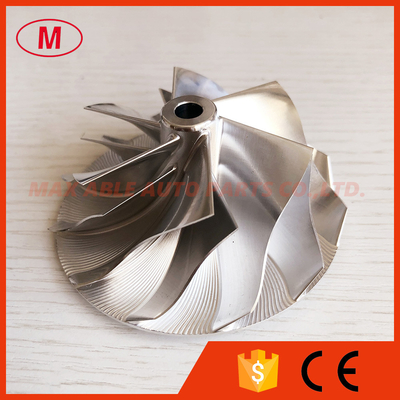

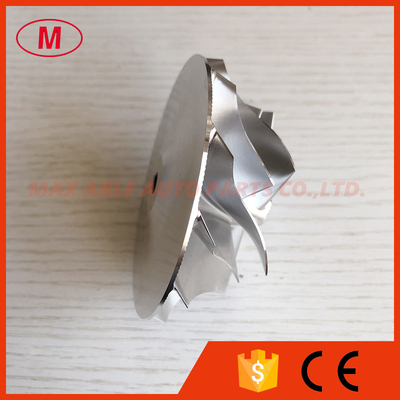

TD05 reverse 58.25/78.00mm 6+6 blades turbocharger milling/aluminum 2618/billet compressor wheel

TD05 reverse 58.25/78.00mm 6+6 blades turbocharger milling/aluminum 2618/billet compressor wheel

    • TD05 reverse 58.25/78.00mm 6+6 blades turbocharger milling/aluminum 2618/billet compressor wheel
    • TD05 reverse 58.25/78.00mm 6+6 blades turbocharger milling/aluminum 2618/billet compressor wheel
    • TD05 reverse 58.25/78.00mm 6+6 blades turbocharger milling/aluminum 2618/billet compressor wheel
    • TD05 reverse 58.25/78.00mm 6+6 blades turbocharger milling/aluminum 2618/billet compressor wheel
    • TD05 reverse 58.25/78.00mm 6+6 blades turbocharger milling/aluminum 2618/billet compressor wheel

    Product Details:

    Brand Name: NO
    Model Number: TD05

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT ,western union ,paypal
    Supply Ability: 1000pcs
    Contact Now
    Detailed Product Description

    1.Model: TD05 reverse
    2.TD05 reverse 58.25/78.00mm 6+6 blades turbocharger milling/aluminum 2618/billet compressor wheel
    3.Size:
    Nose diameter:13.60mm
    Inducer:58.25mm
    exducer:78.00mm
    Tapered tip exducer:79.50mm
    Tip height:7.05mm
    Superback:2.90mm
    bore size :6.50mm
    bore type:through
    Overall height:36.00mm
    Cutback:5.0
    SP Height angle:-2.00
    Trailing Angle:38
    Blades height:30.20mm
    Splitter height:22.50mm
    6+6 blades reverse
    It is custom size ,please check carefully before buying.
    Tapered tip Angle:7.2 degree

    4.High quality and competitive price.
    5.if you want more details, please send email to me.

    All the compressor wheels have been balanced.
