| Brand Name: | NO |
| Model Number: | TF035 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:TF035 forward

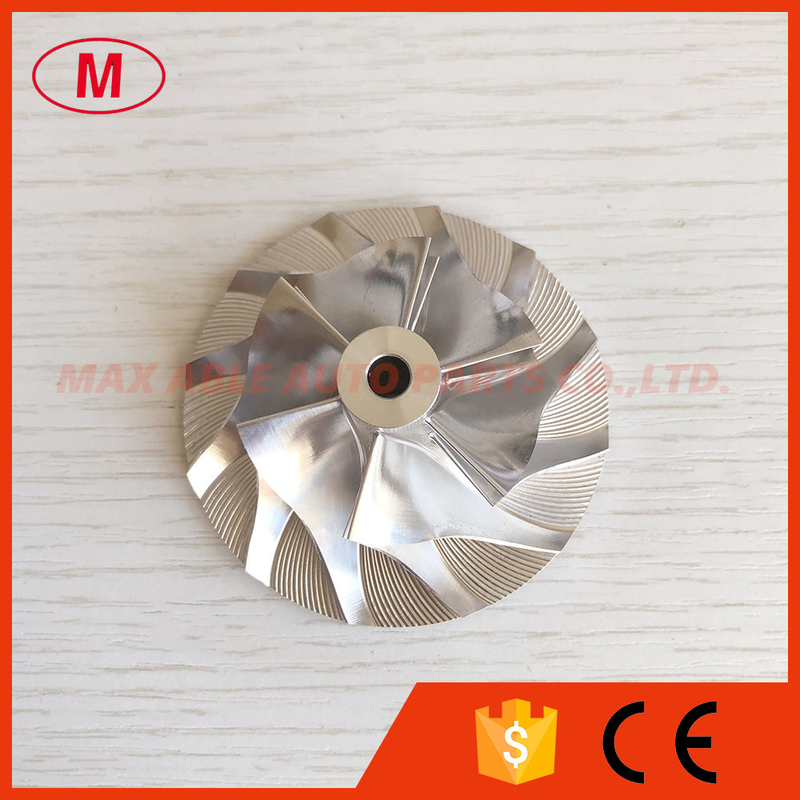

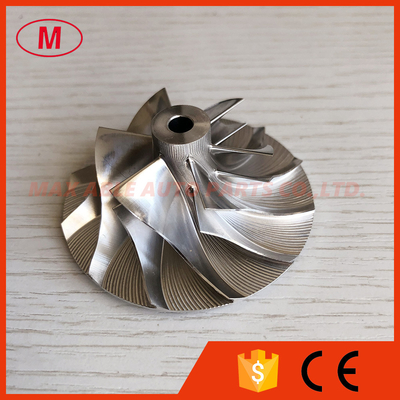

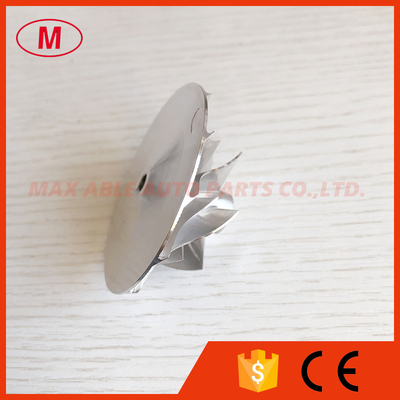

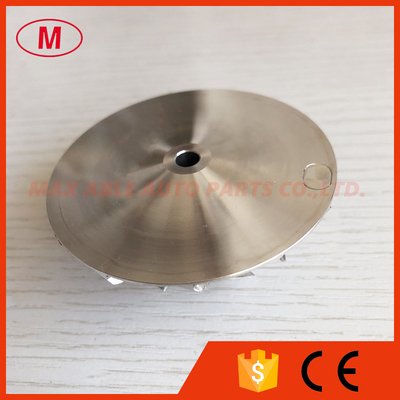

2.TF035 6+6 blades 38.00/59.00mm 49135-05671/320D Upgrade Turbo milling/aluminum 2618/billet compressor wheel for N47D20
3.Size:
Nose diameter:12.08mm
Inducer:38.00mm
Exducer:59.00mm
Tip height:2.81mm
Superback:1.90mm
Overall height:25.30mm
bore size :5.00mm
bore type:through
Trailing angle:35
Cutback:0.0
SP height angle:-3.50
blade height:18.70mm
Splitter height:12.15mm
6+6 Blades
forward rotation
Tapered tip angle:0 degree
It is custom size ,please check carefully before buying
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the compressor wheels have been balanced
we can also produce as your requirement.
