| Brand Name: | NO |
| Model Number: | TD08H |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:TD08H forward

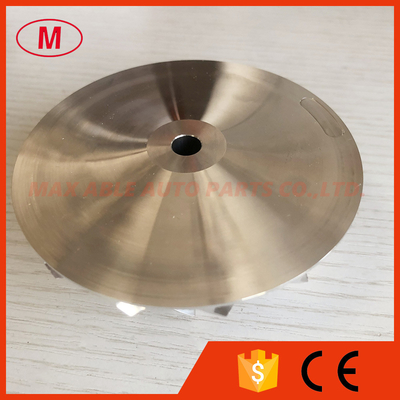

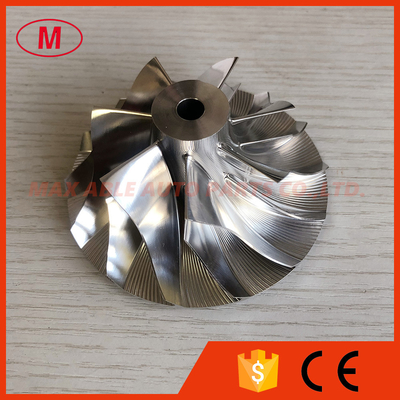

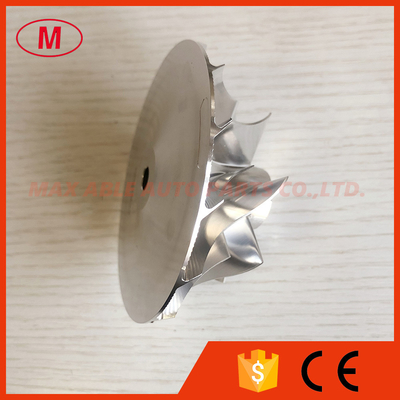

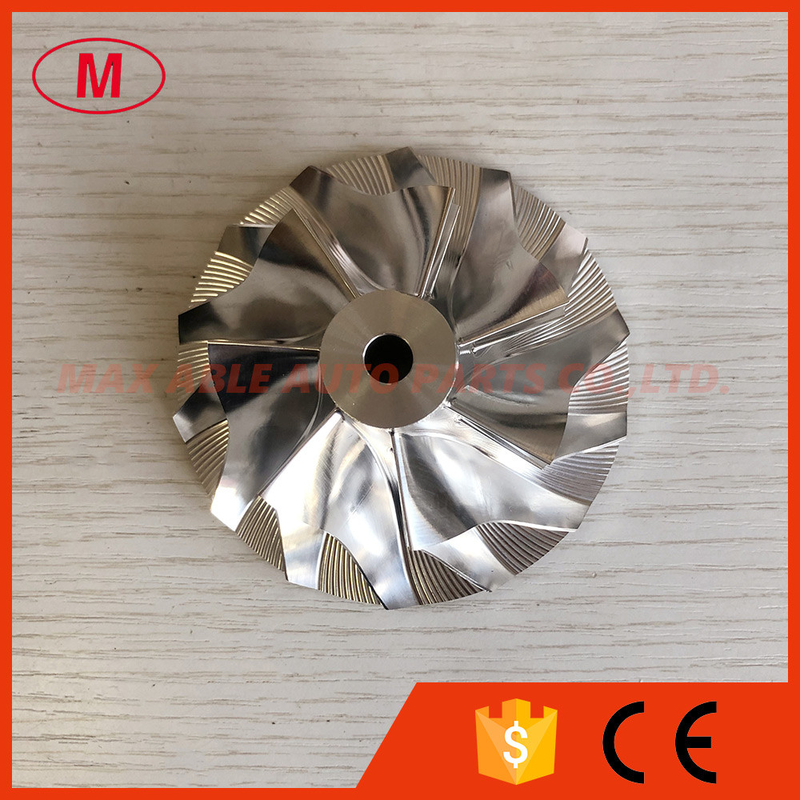

2.TD08H forward 49188-45120 63.30/92.00mm 7+7blades turbo milling/aluminum 2618/billet compressor wheel
3.Size:
Nose diameter:22.57mm
Inducer:63.30mm
Exducer:92.00mm
Tip height:5.95mm
Superback:2.95mm
Overall height:42.20mm
bore size :7.95mm
Trailing Angle:45
Cutback:1.0
SP height angle:0.00
Blade height :32.36mm
Splitter height:20.20mm
7+7 BLADES.
Tapered tip angle: 0 degree
It is for OE compressor housing
forward rotation
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the compressor wheel have been balanced.
