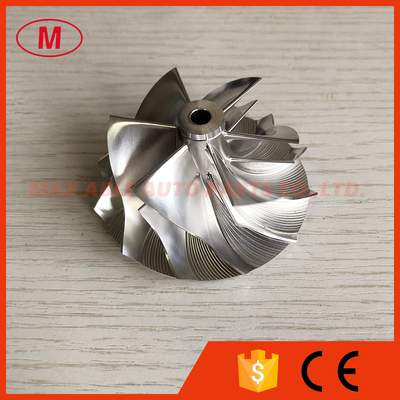

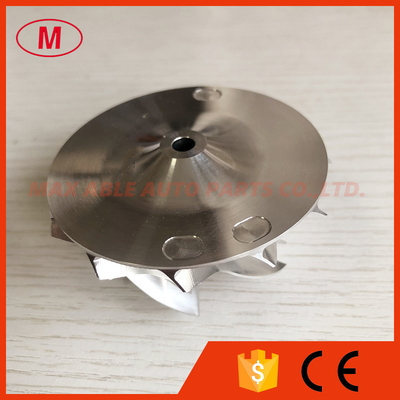

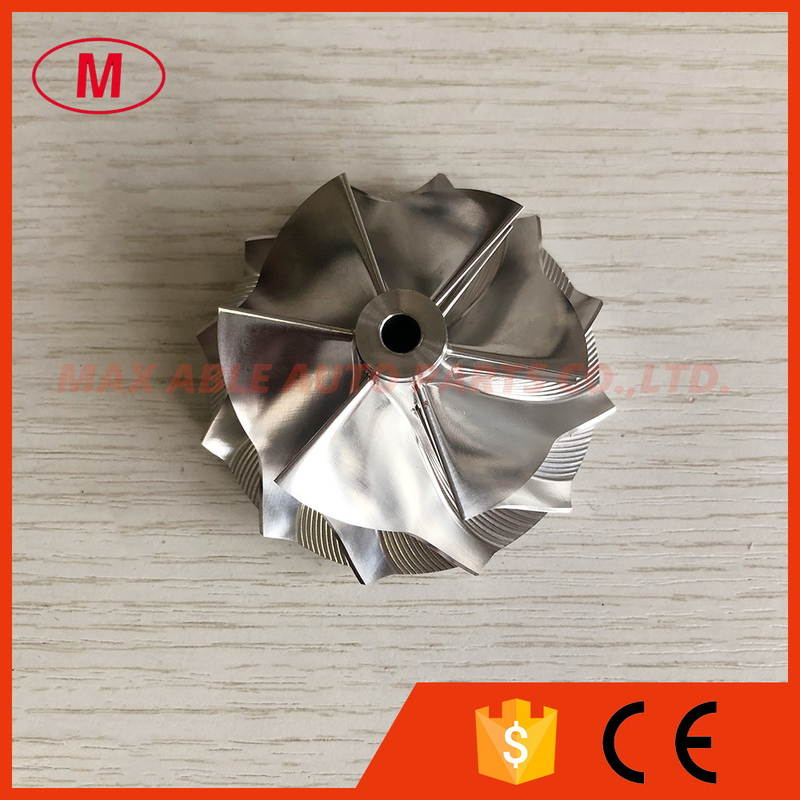

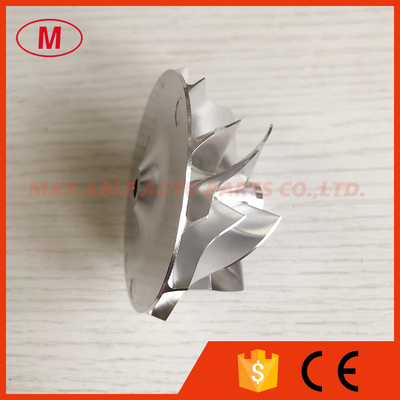

GT15-25 49.62/61.98mm 6+6 blades Turbo Billet/milling/aluminum 2618 compressor wheel

Brand Name:	NO
Model Number:	GT15-25

Contact Now

Detailed Product Description

1. MODEL:GT15-25 forward

2.GT15-25 49.62/61.98mm 6+6 blades Turbo Billet/milling/aluminum 2618 compressor wheel

3.Size:

Nose diameter:12.19mm

Inducer:49.62mm

exducer:61.98mm

Tapered tip exducer:65.90mm

Tip height:4.95mm

Superback:3.71mm

bore size :5.08mm

Overall height:34.00mm

Trailing Angle:45

Cutback:0.0

Tapered tip Angle:27 degree

SP height angle:-3.50

Blade height:25.72mm

Splitter height:17.00

6+6 blades forward

It is Custom size,please check carefully before buying.

4.High quality and competitive price.

5.if you want more details, please send email to me.

We can produce as your requiement ,the minimun order 5pcs.

All the compressor wheel have been balanced.

GT15-25 49.62/61.98mm 6+6 blades Turbo Billet/milling/aluminum 2618 compressor wheel
