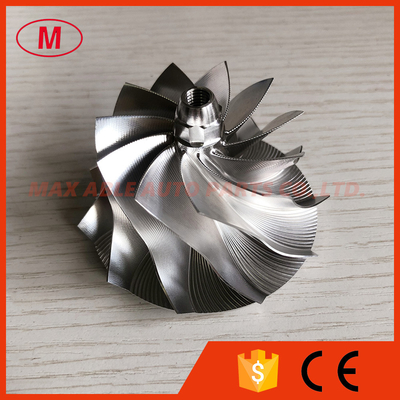

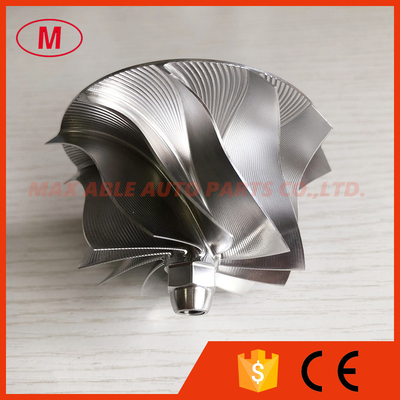

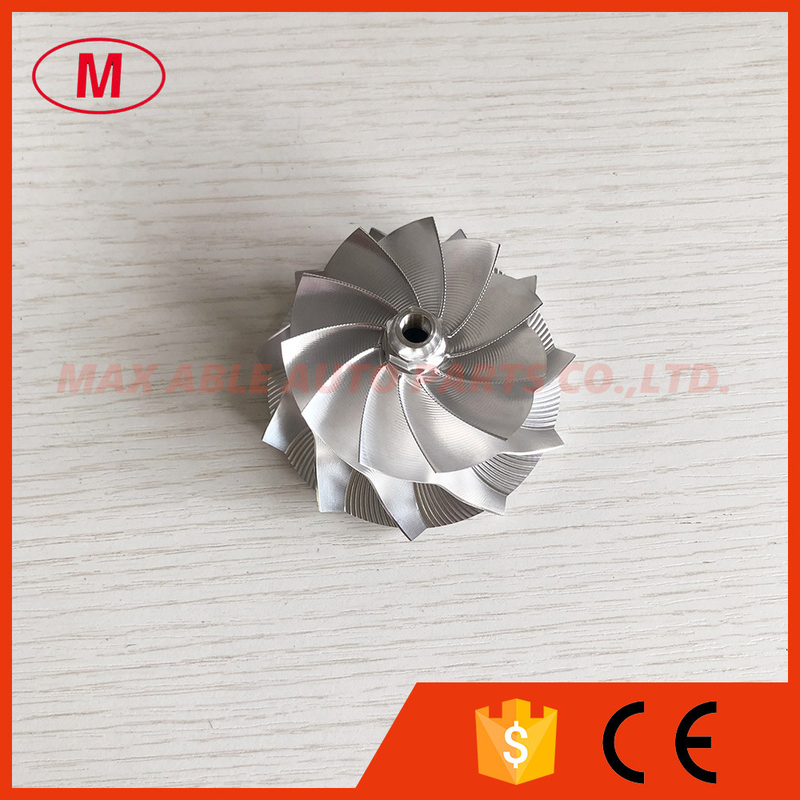

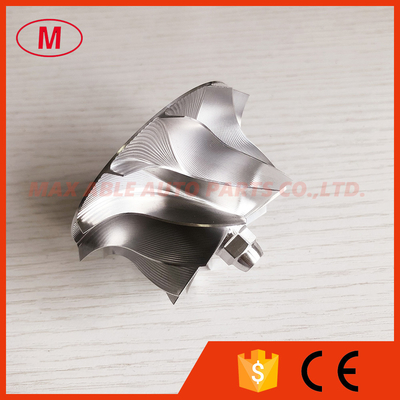

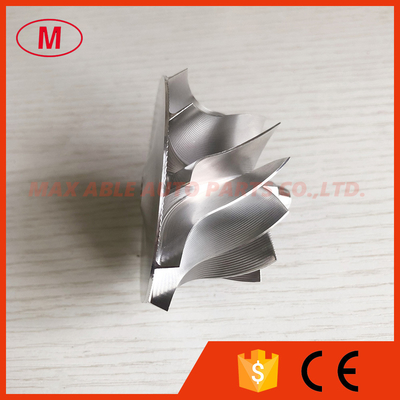

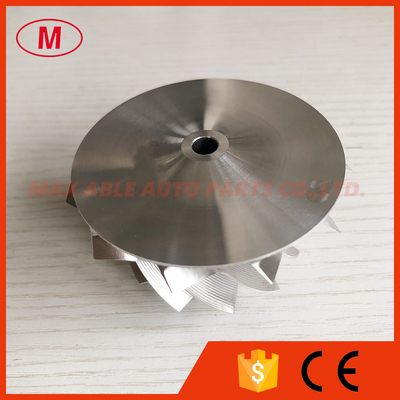

TD05H 52.56/68.01mm 11+0 blades high performance point milling Bullet Head milling/aluminum 2618/billet compressor wheel

TD05H 52.56/68.01mm 11+0 blades high performance point milling Bullet Head milling/aluminum 2618/billet compressor wheel

    • TD05H 52.56/68.01mm 11+0 blades high performance point milling Bullet Head milling/aluminum 2618/billet compressor wheel
    • TD05H 52.56/68.01mm 11+0 blades high performance point milling Bullet Head milling/aluminum 2618/billet compressor wheel
    • TD05H 52.56/68.01mm 11+0 blades high performance point milling Bullet Head milling/aluminum 2618/billet compressor wheel
    • TD05H 52.56/68.01mm 11+0 blades high performance point milling Bullet Head milling/aluminum 2618/billet compressor wheel
    • TD05H 52.56/68.01mm 11+0 blades high performance point milling Bullet Head milling/aluminum 2618/billet compressor wheel
    • TD05H 52.56/68.01mm 11+0 blades high performance point milling Bullet Head milling/aluminum 2618/billet compressor wheel
    • TD05H 52.56/68.01mm 11+0 blades high performance point milling Bullet Head milling/aluminum 2618/billet compressor wheel

    Product Details:

    Brand Name: no
    Certification: ISO
    Model Number: TD05H

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Price: DISCUSS
    Packaging Details: Neutral packing
    Delivery Time: 3-7 DAYS
    Payment Terms: T/T, Western Union, MoneyGram,PAYPAL
    Supply Ability: 1000PCS
    Contact Now
    Detailed Product Description

    1. MODEL:TD05H Forward
    2.TD05H 52.56/68.01mm 11+0 blades high performance point milling Bullet Head turbo milling/aluminum 2618/billet compressor wheel
    3.Size:
    Nose Diameter:13.00mm
    Inducer:52.56mm
    exducer:68.01mm
    Tapered tip exducer:74.21mm
    Tip height:6.37mm
    Superback:2.90mm
    bore size :6.50mm
    Trailing angle:60
    Overall height:47.00mm
    Bore type:Threaded 1/4-28G-LHT
    Cutback:-10.0
    Blade height:34.88mm
    Sp Height angle:0.00
    Splitter height:0.00mm
    11+0 blades forward
    Point milling
    Tapered tip angle:30 degree
    It is custom size ,please check carefully before buying.
    4.High quality and competitive price.
    5.if you want more details, please send email to me.

    All the compressor wheel have been balanced.
    TD05H 52.56/68.01mm 11+0 blades high performance point milling Bullet Head milling/aluminum 2618/billet compressor wheel
    TD05H 52.56/68.01mm 11+0 blades high performance point milling Bullet Head milling/aluminum 2618/billet compressor wheelTD05H 52.56/68.01mm 11+0 blades high performance point milling Bullet Head milling/aluminum 2618/billet compressor wheelTD05H 52.56/68.01mm 11+0 blades high performance point milling Bullet Head milling/aluminum 2618/billet compressor wheelTD05H 52.56/68.01mm 11+0 blades high performance point milling Bullet Head milling/aluminum 2618/billet compressor wheelTD05H 52.56/68.01mm 11+0 blades high performance point milling Bullet Head milling/aluminum 2618/billet compressor wheelTD05H 52.56/68.01mm 11+0 blades high performance point milling Bullet Head milling/aluminum 2618/billet compressor wheelTD05H 52.56/68.01mm 11+0 blades high performance point milling Bullet Head milling/aluminum 2618/billet compressor wheel
