| Brand Name: | no |
| Certification: | ISO |
| Model Number: | RHV4 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | Neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |

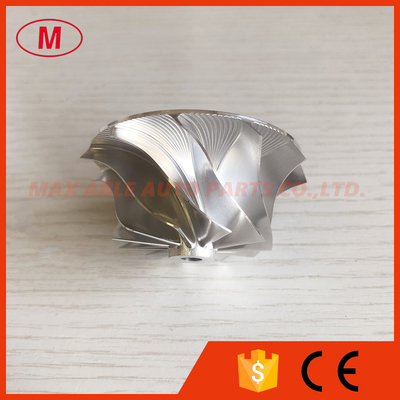

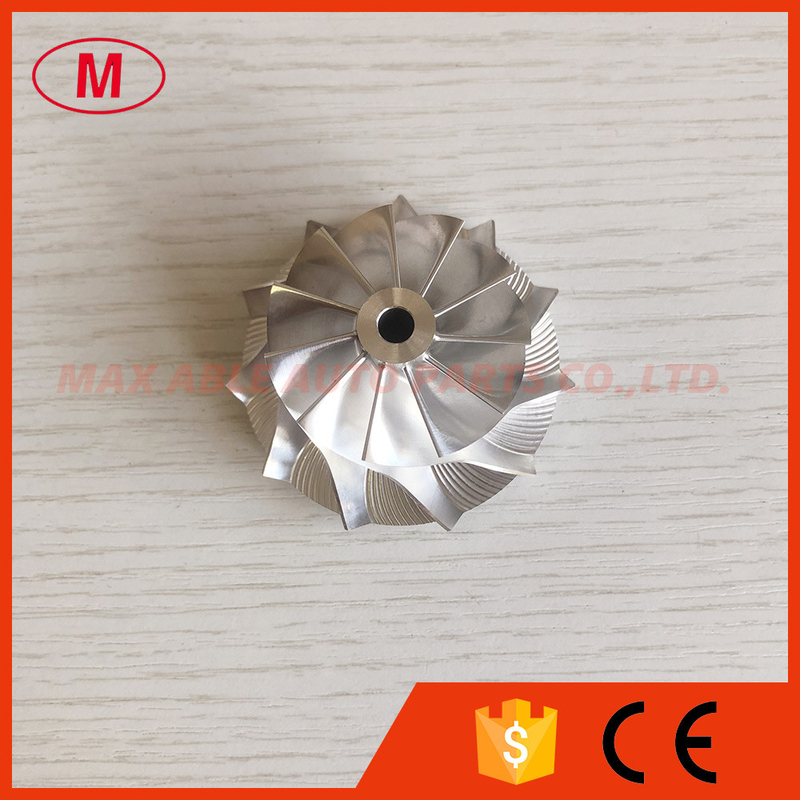

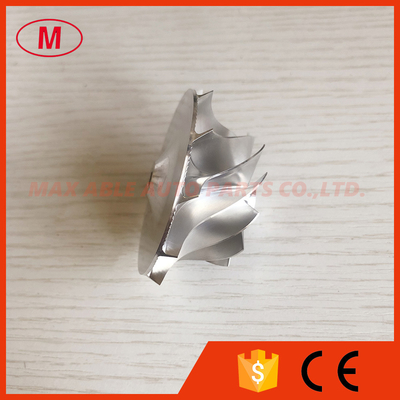

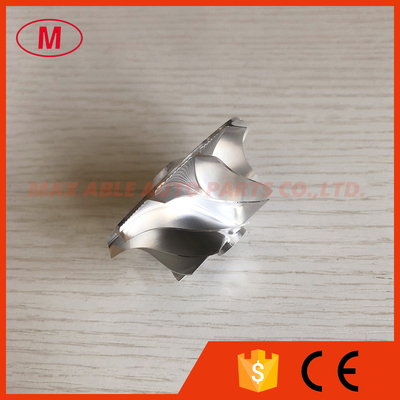

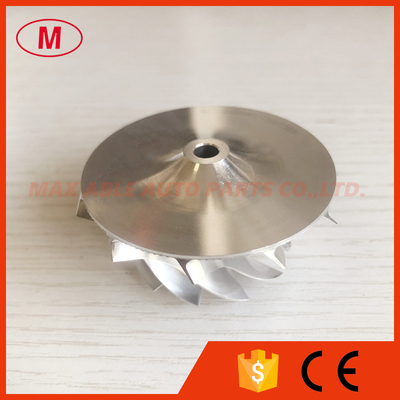

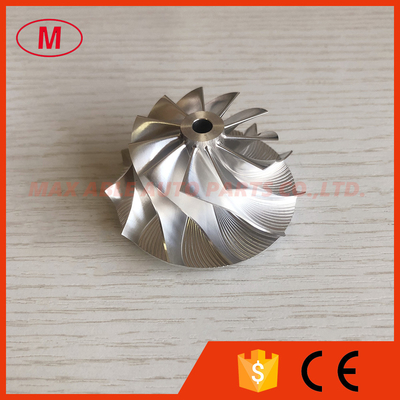

1.Model:RHV4 Forward
3.Size:
Nose diamter:11.00mm
inducer:38.21mm
Exduder:52.50mm
Tapered tip exducer:56.78mm
Tip height:4.71mm
Superback:3.74mm
bore size :5.09mm
bore type:through
Overall height:29.60mm
Trailing Angle:50
Cutback:3.3
SP height angle:0.00
Blades height:23.50mm
Splitter height:0.00
It is for OE compressor housing.
11+0 blades
Forward rotation
Tapered tip angle:30 degree
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
