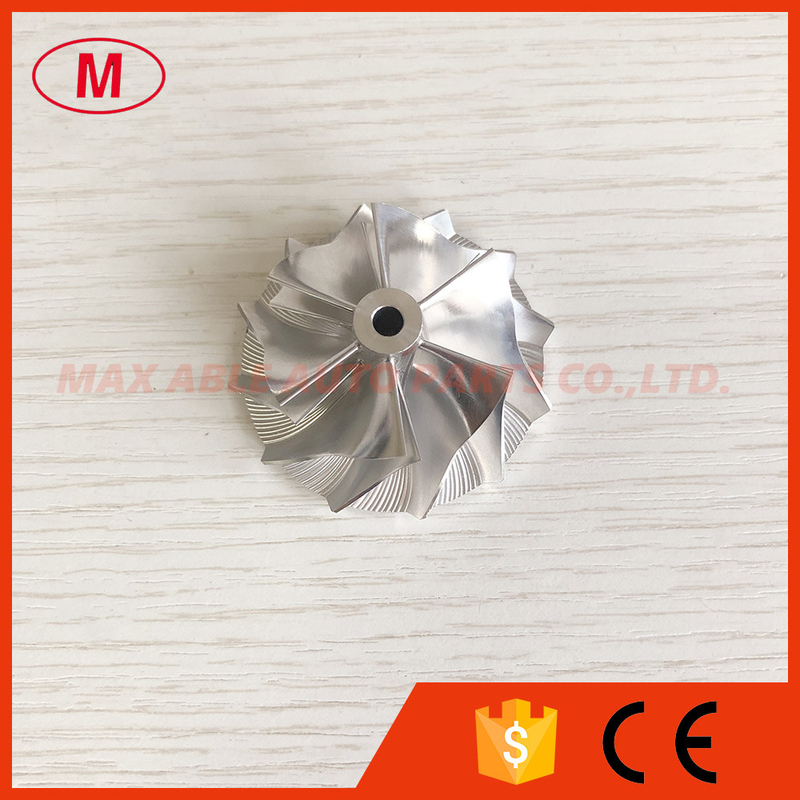

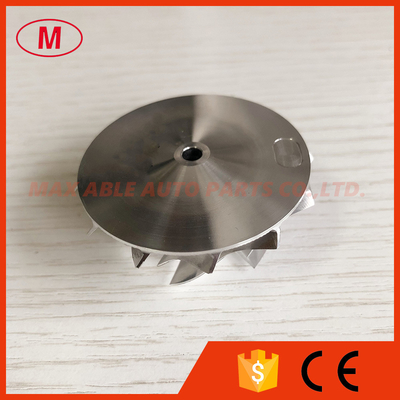

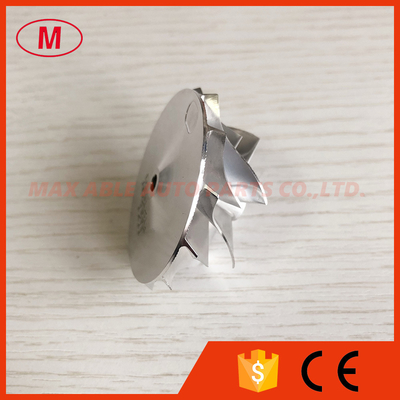

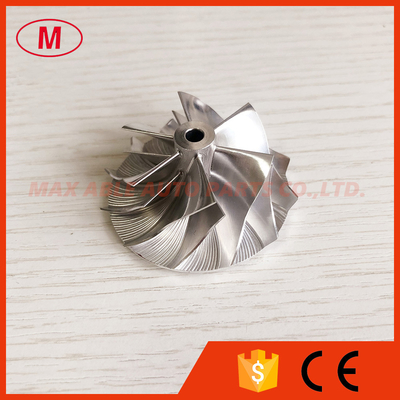

TD03 10T reverse 35.57/46.00mm 6+6 blades high performance turbo milling/aluminum 2618/billet compressor wheel

TD03 10T reverse 35.57/46.00mm 6+6 blades high performance turbo milling/aluminum 2618/billet compressor wheel

    • TD03 10T reverse 35.57/46.00mm 6+6 blades high performance turbo milling/aluminum 2618/billet compressor wheel
    • TD03 10T reverse 35.57/46.00mm 6+6 blades high performance turbo milling/aluminum 2618/billet compressor wheel
    • TD03 10T reverse 35.57/46.00mm 6+6 blades high performance turbo milling/aluminum 2618/billet compressor wheel
    • TD03 10T reverse 35.57/46.00mm 6+6 blades high performance turbo milling/aluminum 2618/billet compressor wheel
    • TD03 10T reverse 35.57/46.00mm 6+6 blades high performance turbo milling/aluminum 2618/billet compressor wheel

    Product Details:

    Brand Name: no
    Certification: ISO
    Model Number: TD03

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Price: DISCUSS
    Packaging Details: Neutral packing
    Delivery Time: 3-7 DAYS
    Payment Terms: T/T, Western Union, MoneyGram,PAYPAL
    Supply Ability: 1000PCS
    Contact Now
    Detailed Product Description

    1.Model:TD03 10T Reverse

    2.TD03 10T reverse 35.57/46.00mm 6+6 blades high performance turbo billet/milling/aluminum 2618 compressor wheel for 49131-07005/49131-07015 N54B30 Twin Turbo

    3.Size:
    Nose diameter:9.13mm
    Inducer:35.57mm
    Exducer:46.00mm
    Tapered tip exducer:49.58mm
    Tip height:4.10mm
    Superback:1.68mm
    Overall height:22.49mm
    Bore size:4.00mm
    bore type:through
    Trailing angle:60
    Cutback:0.0
    SP Height angle:-1.50
    Blade height:18.79mm
    Splitter height:13.30mm
    6+6 blades
    Reverse rotation
    Tapered tip angle:30 degree
    Fits OE Compressor Housing

    4.High quality and competitive price.

    5.if you want more details, please send email to me.

    All the compressor wheels have been balanced

    we can also produce as your requirement.
