Home ProductsBillet compressor wheel

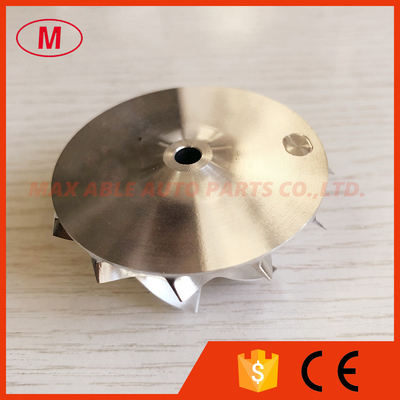

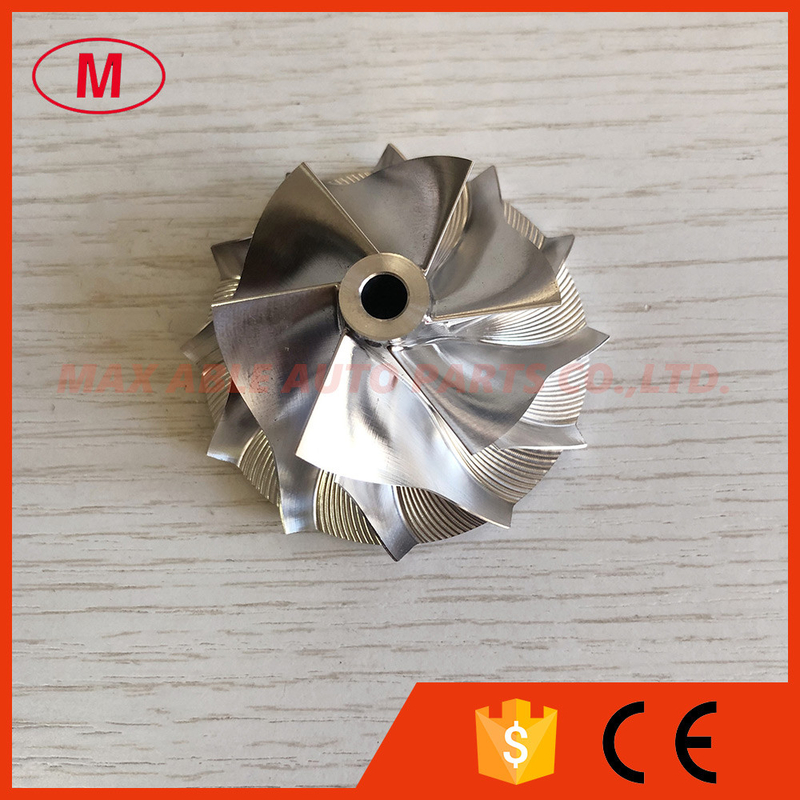

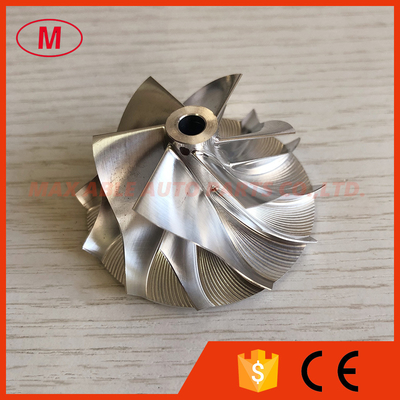

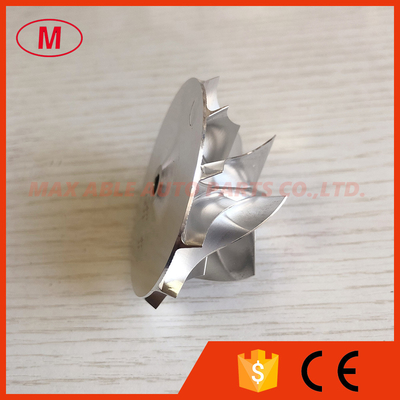

RHF5 39.30/52.50mm 6+6 blades high performance turbo milling/aluminum 2618/billet compressor wheel for 06J145713L

RHF5 39.30/52.50mm 6+6 blades high performance turbo milling/aluminum 2618/billet compressor wheel for 06J145713L

    • RHF5 39.30/52.50mm 6+6 blades high performance turbo milling/aluminum 2618/billet compressor wheel for 06J145713L
    • RHF5 39.30/52.50mm 6+6 blades high performance turbo milling/aluminum 2618/billet compressor wheel for 06J145713L
    • RHF5 39.30/52.50mm 6+6 blades high performance turbo milling/aluminum 2618/billet compressor wheel for 06J145713L
    • RHF5 39.30/52.50mm 6+6 blades high performance turbo milling/aluminum 2618/billet compressor wheel for 06J145713L
    • RHF5 39.30/52.50mm 6+6 blades high performance turbo milling/aluminum 2618/billet compressor wheel for 06J145713L

    Product Details:

    Brand Name: NO
    Certification: ISO
    Model Number: RHF5

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Price: DISCUSS
    Packaging Details: neutral packing
    Delivery Time: 3-7 DAYS
    Payment Terms: T/T, Western Union, MoneyGram,PAYPAL
    Supply Ability: 1000PCS
    Contact Now
    Detailed Product Description

    1.Model:RHF5 Forward

    2.RHF5 39.30/52.50mm 6+6 blades high performance turbocharger billet/milling/aluminum 2618 compressor wheel for 06J145713L /A3 TT Jetta Passat Jiguan Golf 2.0L
    3.Size:
    Nose diameter:10.00mm
    Inducer:39.30mm
    Exducer:52.50mm
    Tapered tip exducer:56.70mm
    Tip height:4.64mm
    Superback:1.53mm
    Overall height:27.50mm
    Bore size:5.09mm
    Trailing angle:60
    Bore Type:Through
    Cutback:3.5
    SP Height angle:4.50
    Blade height:23.80mm
    Splitter hieght:12.20mm
    6+6 blades
    Forward rotation
    Tapered tip angle:30 degree
    Fits OE Compressor Housing
    4.High quality ,competitive price and good service.
    5.We can also produce as your requirement.
    All the compressor wheel have been balanced.
    6.If you want more details, please send email to me or talk to me online.
    We will try our best to meet your needs.
