| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | TD05H |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:TD05H 20G upgrade forward

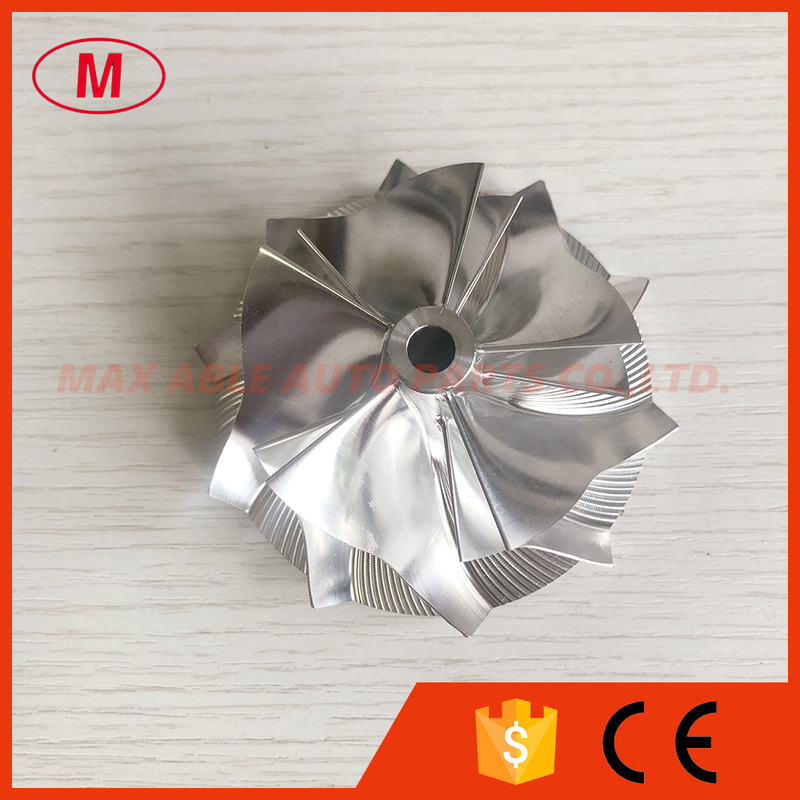

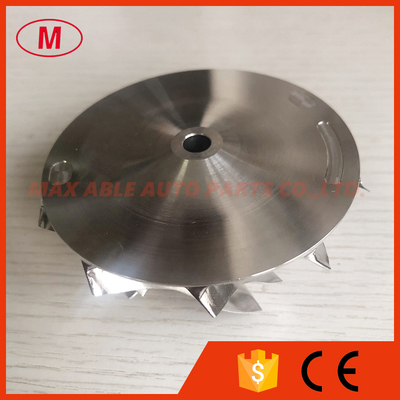

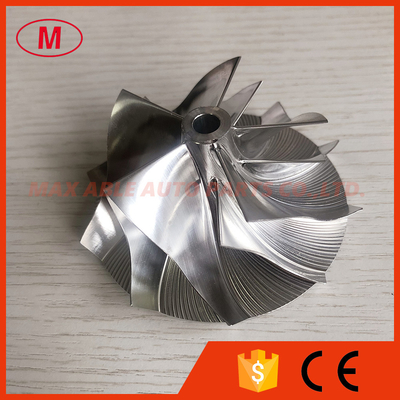

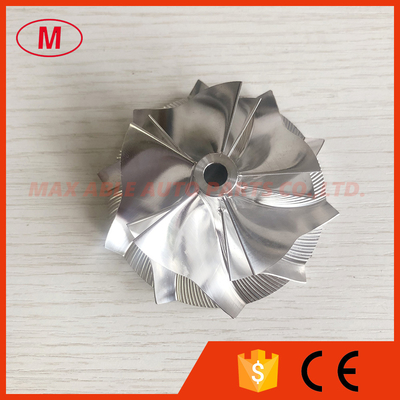

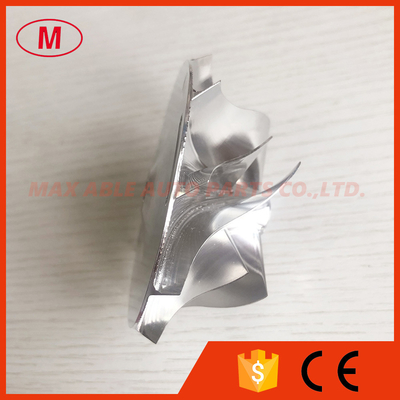

2.TD05H 20G upgrade forward 56.58/73.04mm 5+5 blades Turbocharger Billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:12.04mm
inducer:56.58mm
Inducer:73.04mm
Tapered tip exducer:79.34mm
Tip height:6.87mm
Superback:2.90mm
Overall height:35.04mm
bore size :6.50mm
Trailing angle:45
Cutback:0.0
Blade height:30.66mm
5+5blades
forward rotation
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying
4.High quality and competitive price.
5.if you want more details, please send email to me.
