Model Number: | B03G |
Minimum Order Quantity: | 1PC |
---|---|
Packaging Details: | neutral packing |
Delivery Time: | 3-7 days |
Payment Terms: | TT ,western union ,paypal |
Supply Ability: | 1000pcs |
1. MODEL:B03G forward

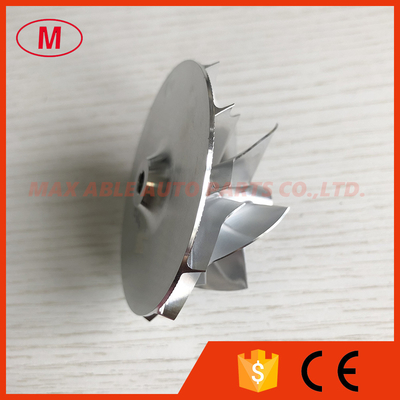

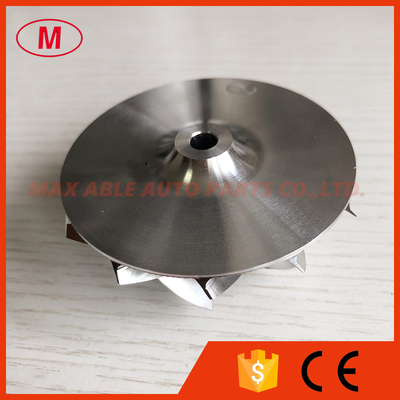

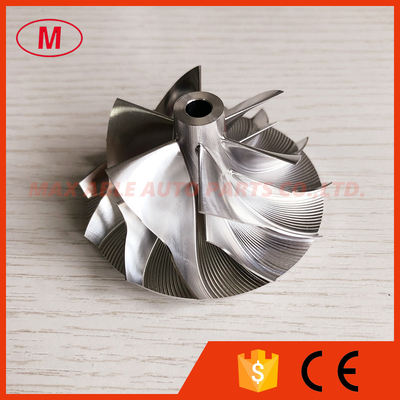

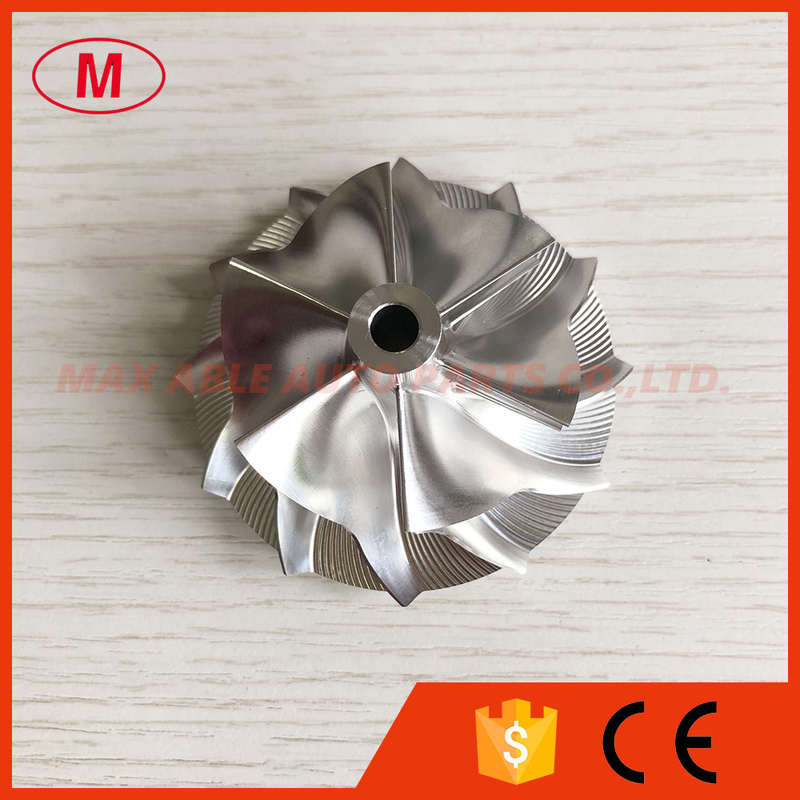

2. B03G 46.00/61.00mm 6+6 blades turbo billet/milling/aluminum 2618 Compressor wheel
Size:
Nose diameter:10.94mm
inducer:46.00mm
Exducer:61.00mm
Tapered tip exducer:64.70mm
Tip height:4.45mm
Superback:4.00mm
Overall height:33.50mm
Bore size:5.61mm
Trailing angle:60
Cutback:0.0
SP height angle:0.00
Blade height:23.40mm
Splitter height:13.00mm
6+6 blades
Forward rotation
Tapered tip angle:28.2 degree
It is custom size ,please check carefully before buying.
3.High quality and competitive price.
4.Any questions please send email to me,we have many size.
All the compressor wheel have been balanced.
