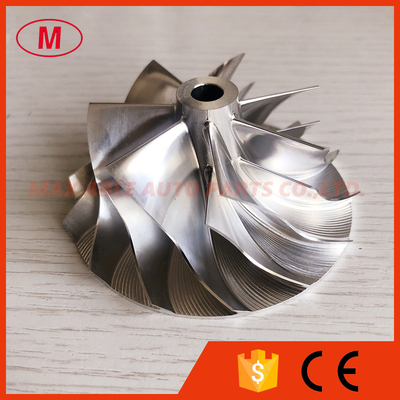

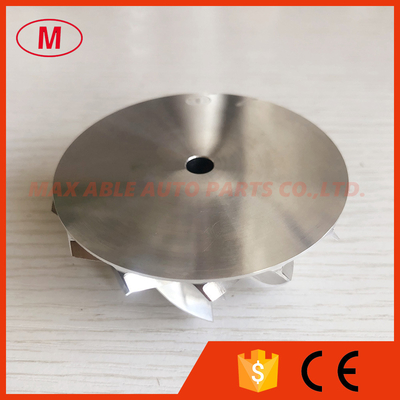

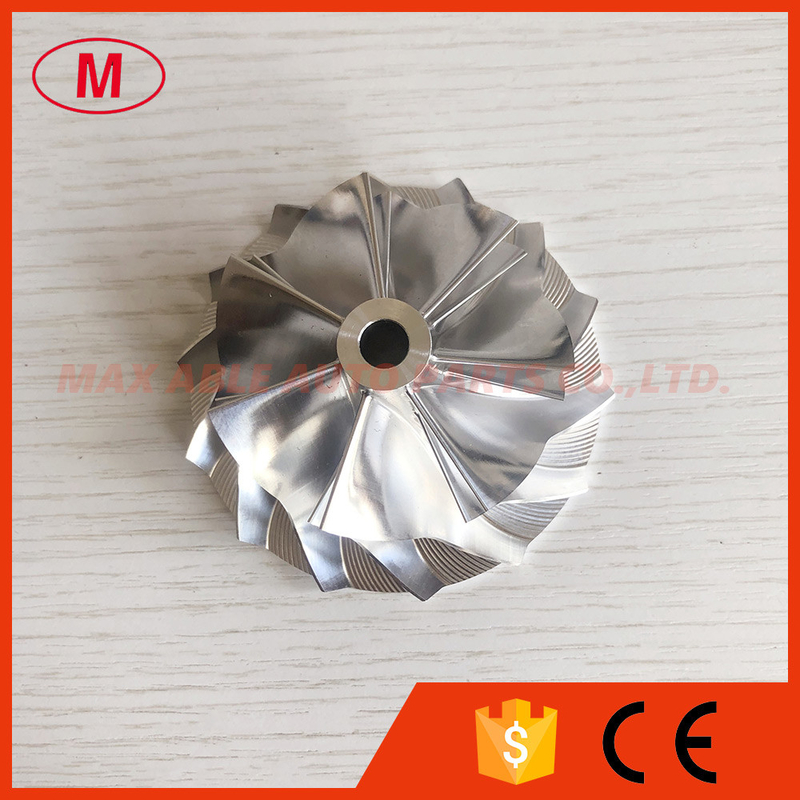

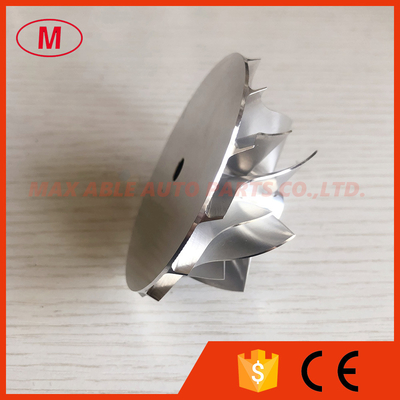

K26 55.00/72.00mm 7+7 blades turbocharger billet/milling/aluminum 2618 compressor wheel

Model Number:	k26

Contact Now

Detailed Product Description

1.Model:K26 Forward

2.K26 55.00/72.00mm 7+7 blades turbocharger billet/milling/aluminum 2618 compressor wheel

3.Size:

Nose diameter:13.50mm

Inducer:55.00mm

Exducer:72.00mm

Tapered tip exducer:75.00mm

Tip height:5.00mm

Superback:0.00mm

Overall height:32.00mm

Bore size:7.02mm

Trailing angle:50

Cutback:2.0

SP Height angle:-6.50

Blade height:28.36mm

Splitter height:19.80mm

7+7 blades

Forward rotation

Tapered tip angle:22.9 degree

It is custom size,please check carefully before buying.

4.High quality ,competitive price and good service.

5.We can also produce as your requirement.

All the compressor wheel have been balanced.

6.If you want more details, please send email to me or talk to me online.

We will try our best to meet your needs.
