Model Number: | CT26 |
Minimum Order Quantity: | 1PC |
---|---|
Packaging Details: | neutral packing |
Delivery Time: | 3-7 DAYS |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 100PCS |
1. MODEL:CT26 forward

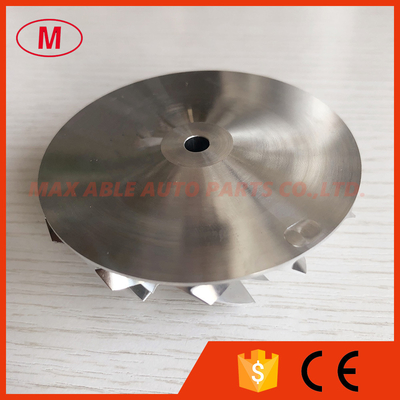

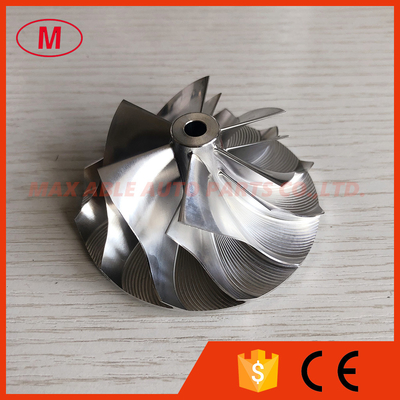

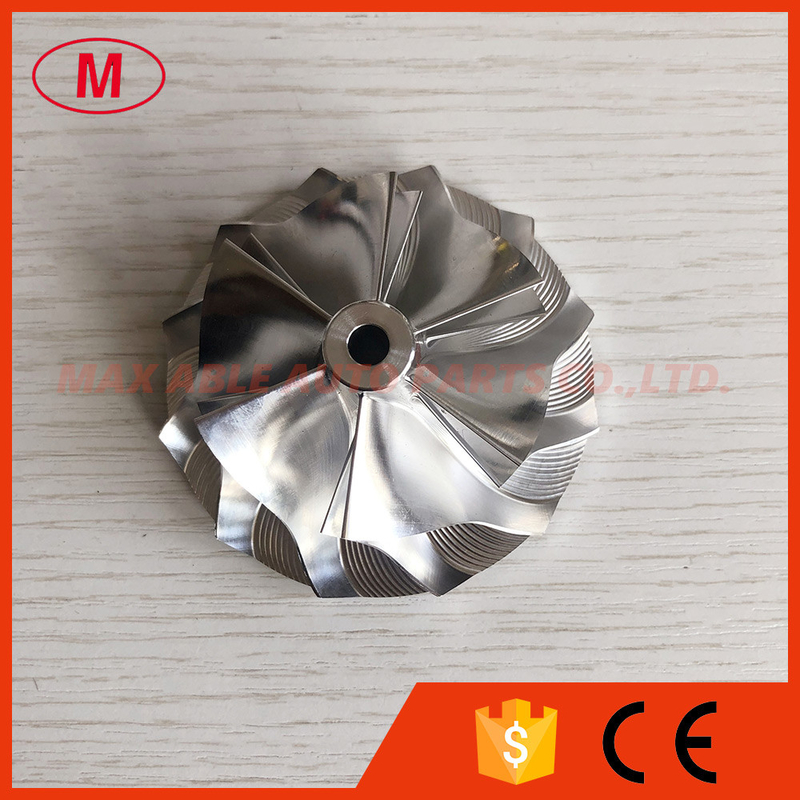

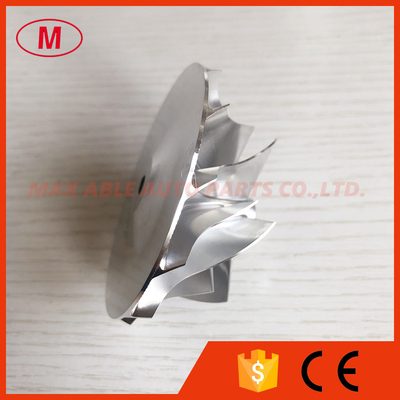

2. CT26 52.75/72.00mm 6+6 blades Turbo aluminum 2618/milling/Billet compressor wheel
3.Size:
Nose diameter:13.00mm
inducer:52.75mm
exducer:72.00mm
Tapered tip exducer:73.50mm
Tip height:5.95mm
Superback:2.20mm
bore size :5.70mm
bore type:through
Overall height:33.05mm
Trailing angle:41 degree
Cutback:3.5mm
SP height angle:-3.00
Splitter height :21.00mm
Blade height:28.00mm
6+6 blades
Tapered tip angle:8.6 degree
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.Any questions please send email to me.
All the billet compressor wheels have been balanced.
