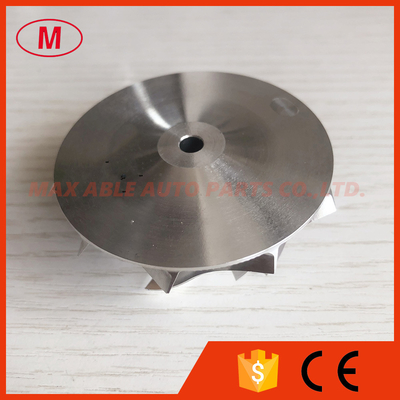

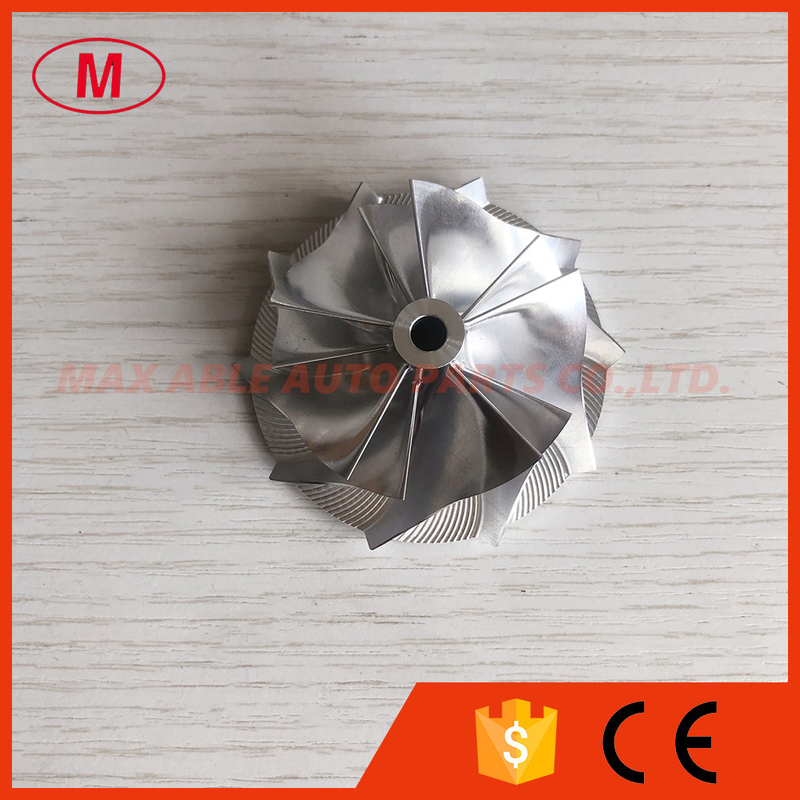

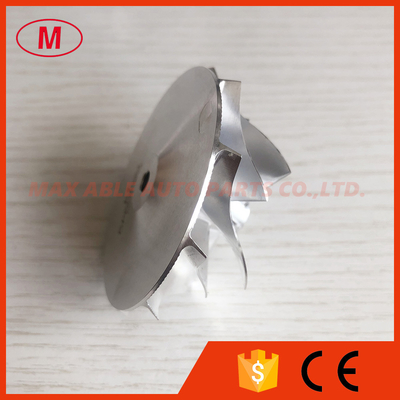

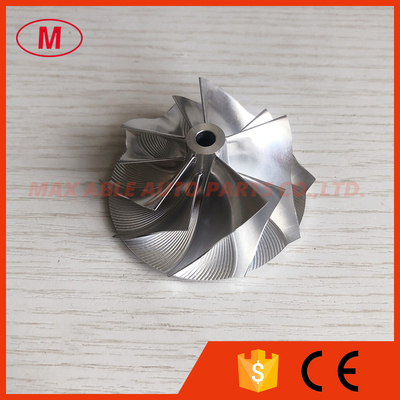

TD04HL 19T reverse 46.02/58.00mm 5+5 blades 49189-X Turbocharger milling/aluminum 2618/billet compressor wheel

TD04HL 19T reverse 46.02/58.00mm 5+5 blades 49189-X Turbocharger milling/aluminum 2618/billet compressor wheel

    • TD04HL 19T reverse 46.02/58.00mm 5+5 blades 49189-X Turbocharger milling/aluminum 2618/billet compressor wheel
    • TD04HL 19T reverse 46.02/58.00mm 5+5 blades 49189-X Turbocharger milling/aluminum 2618/billet compressor wheel
    • TD04HL 19T reverse 46.02/58.00mm 5+5 blades 49189-X Turbocharger milling/aluminum 2618/billet compressor wheel
    • TD04HL 19T reverse 46.02/58.00mm 5+5 blades 49189-X Turbocharger milling/aluminum 2618/billet compressor wheel
    • TD04HL 19T reverse 46.02/58.00mm 5+5 blades 49189-X Turbocharger milling/aluminum 2618/billet compressor wheel

    Product Details:

    Brand Name: NO
    Certification: ISO
    Model Number: TD04HL

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT ,western union ,paypal
    Supply Ability: 1000
    Contact Now
    Detailed Product Description
    Size: 46.02/58.00mm Type: Turbochargers

    1. MODEL:TD04HL 19T reverse
    2.TD04HL 19T reverse 46.02/58.00mm 5+5 blades 49189-X high performance Turbocharger Billet/milling/aluminum 2618 compressor wheel
    3.Size:
    Inducer:46.02mm
    exducer:58.00mm
    Nose diameter:10.05mm
    Tapered tip exducer:62.58mm
    Tip height:4.97mm
    Superback:1.90mm
    Overall height:26.13mm
    bore size :5.00mm
    bore type:through
    Trailing angle:70
    Cutback:0.0
    SP height angle:-4.50
    Blade height:22.40mm
    Splitter height:17.35mm
    5+5 blades
    reverse rotation
    Tapered tip angle:30 degree
    It is for OE compressor housing
    4.High quality and competitive price.
    5.if you want more details, please send email to me.

    All the compressor wheels have been balanced.
    We can produce as your requirement.
