| Model Number: | GT15-25 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:GT15-25 forward

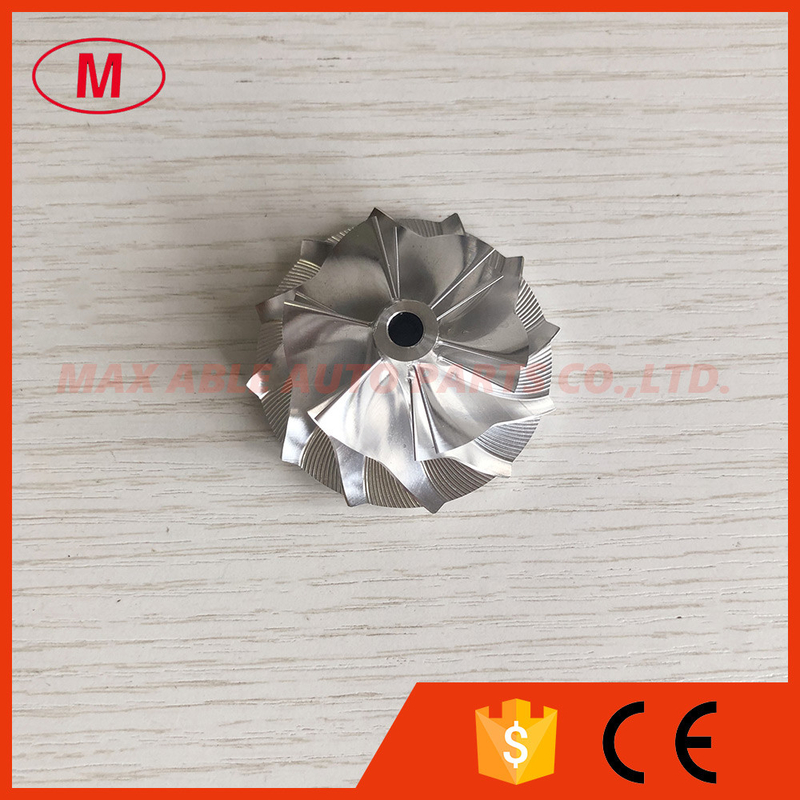

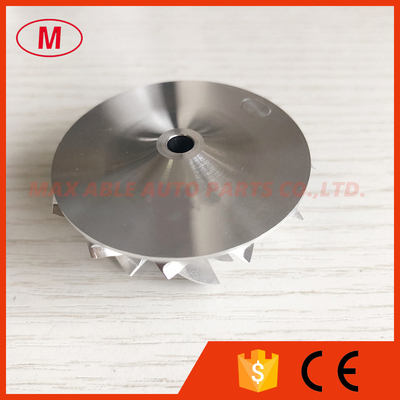

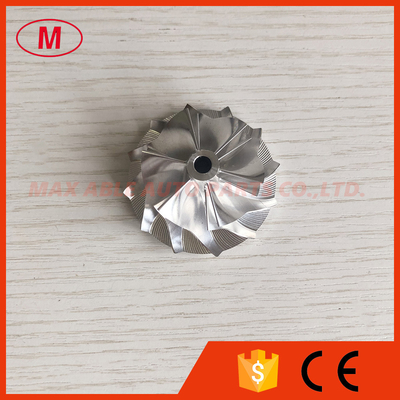

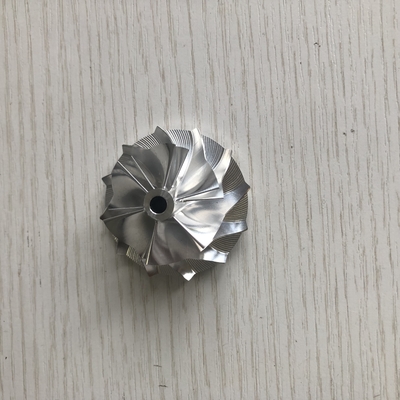

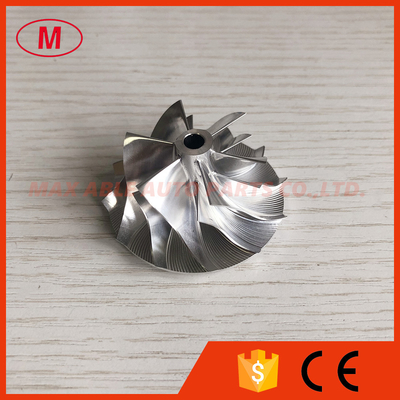

2.GT15-25 36.39/49.00mm 6+6 blades 702489-0005C high performance turbo billet/milling/aluminum 2618 compressor wheel for 717382-0002/717478-0004/0005/0006/7214021-0003/0004/0005/0006/724495-0002/0003/729853-0001/750431-0004/0006/0007/0009/0010/0012/0015/753556-0002/0006/753847-0002/0006/756047-0002/0004/0005/760698-0002/0003/0004/760774-0002/0003/765993-0004
3.Size:
Nose diameter:9.57mm
inducer:36.39mm
Exduder:49.00mm
Tapered tip exducer:52.00mm
Tip height:3.60mm
Superback:2.40mm
Overall height:24.89mm
bore size :5.08mm
bore type:through
Trailing Angle:55 degree
Cutback:0.00
Blade height:20.30mm
SP height angle:-6.70
Splitter height:14.40mm
Tapered Tip Angle:30 degree
6+6 blades
Forward rotation
Fit for OE compressor housing
Application:
717382-0002
717478-0004/0005/0006
7214021-0003/0004/0005/0006
724495-0002/0003
729853-0001/750431-0004/0006/0007/0009/0010/0012/0015
753556-0002/0006
753847-0002/0006
756047-0002/0004/0005
760698-0002/0003/0004
760774-0002/0003
765993-0004
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
