| Model Number: | TD0435 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:TD0435 Forward

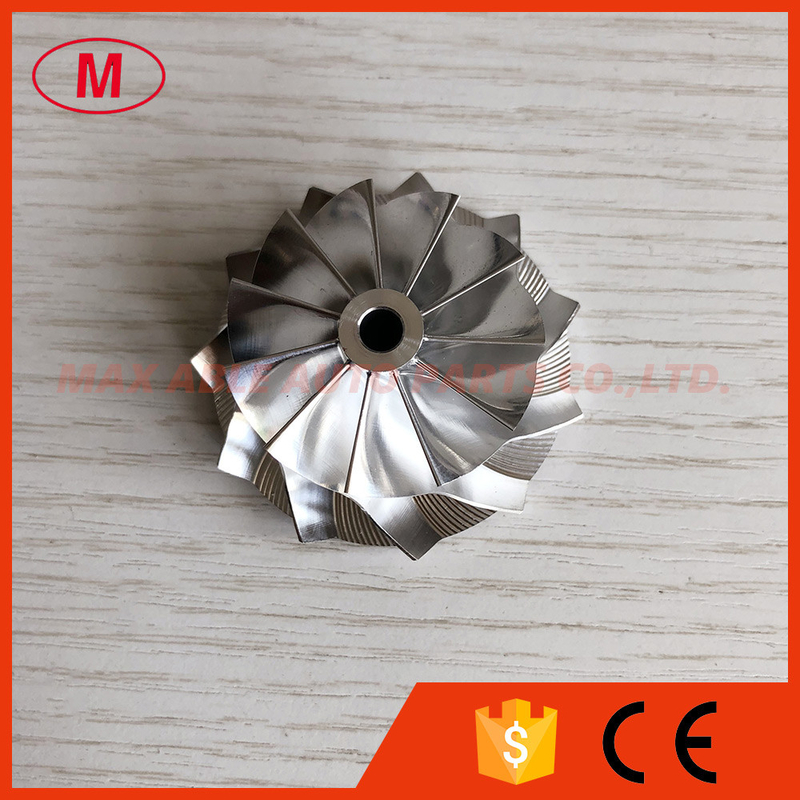

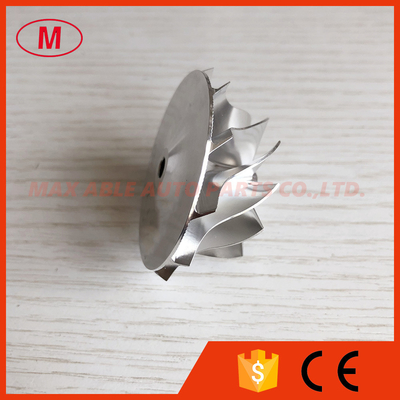

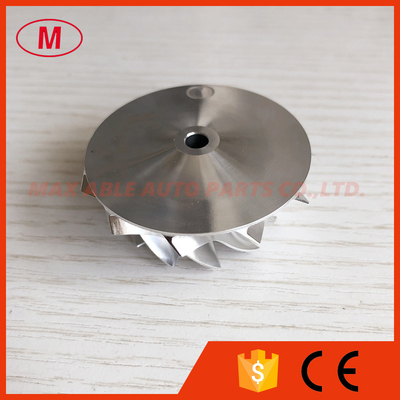

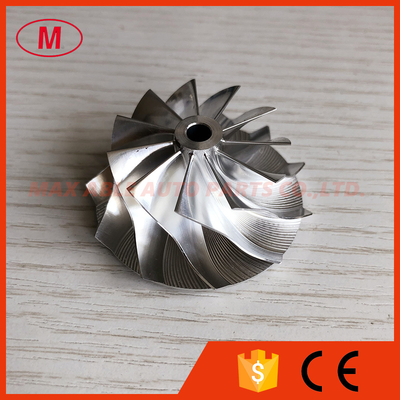

2.TD0435 49135-00016 12T-SB 37.80/49.00mm 11+0 blades high performance Turbo Billet/Milling/aluminum 2618 compressor wheel for 49135-02100/04121
3.Size:
Nose Diameter:9.97mm
inducer:37.80mm
Exducer:49.00mm
Tapered tip exducer:53.01mm
Tip height:4.47mm
Overall height:24.00mm
Superback:1.90mm
Bore size:5.00mm
bore type:through
Trailing Angle:45 degree
Cutback:0.0
SP height angle:0.00
Blade height:20.40mm
Splitter height:0.00
Tapered tip Angle:30 degree
11+0 blades
Fit for OE compressor housing
Forward rotation
4.High quality and competitive price.
5.Any questions please send email to me.
We have more size ,if you want ,please don't hesitate to contact me.
