Model Number: | TD05H 20G |
Minimum Order Quantity: | 1PC |
---|---|
Price: | USD68/PC |
Packaging Details: | neutral packing |
Delivery Time: | 3-7 DAYS |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 1000PCS /MONTHS |
1. MODEL:TD05H 20G reverse

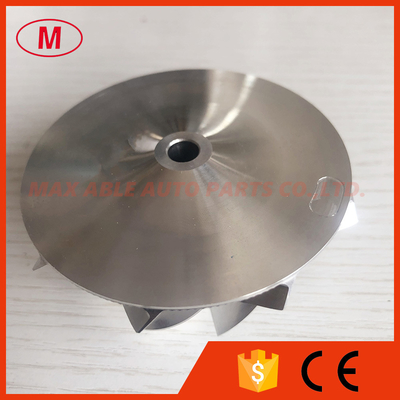

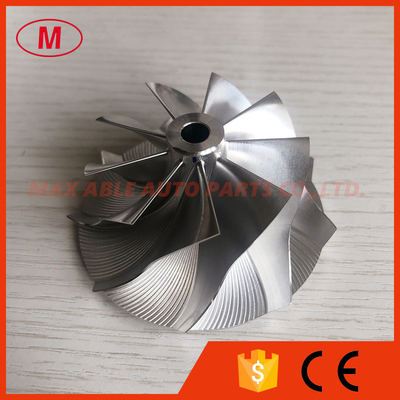

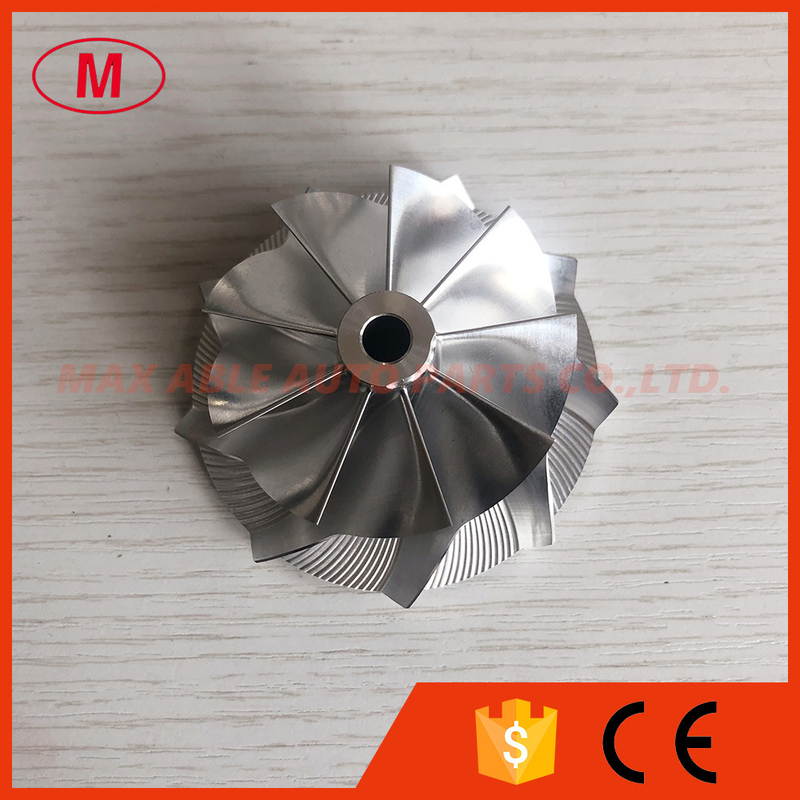

2.TD05H 20G reverse 52.56/68.01mm 49179-43400 9+0 blades high performance Turbo Billet/milling/aluminum 2618 compressor wheel for MITSUBISHI
3.Size:
Nose diameter:13.51mm
Inducer:52.56mm
Exducer:68.01mm
Tapered tip exducer:73.05mm
Tip height:5.37mm
Superback:2.90mm
Overall height:35.00mm
bore size :6.50mm
bore type:through
Trailing Angle:45
Cutback:0.0
sp Height angle:0.00
Blade height :28.90mm
Splitter height:0.00
Tapered tip Angle:30 degree
9+0 BLADES.
reverse rotation
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the compressor wheels have been balanced.
6.Material:Aluminum 2618
