| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | TD04 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |

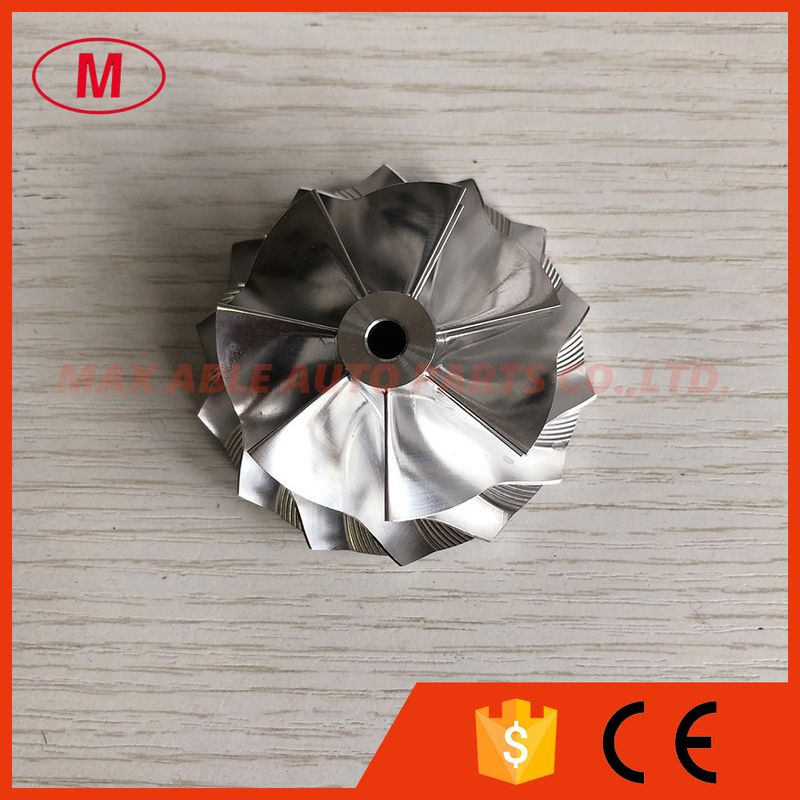

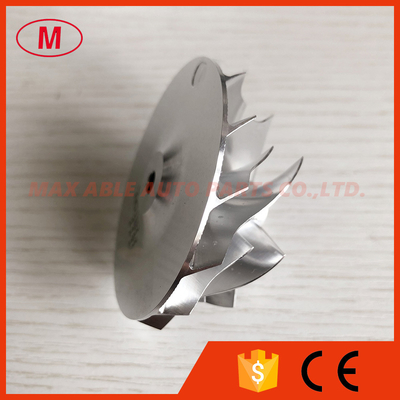

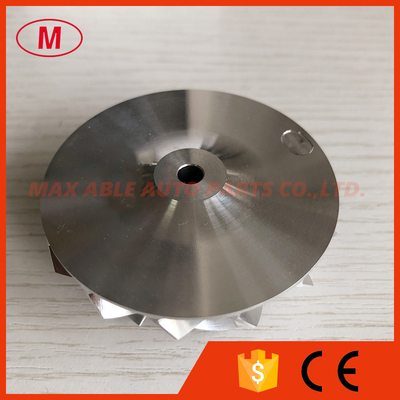

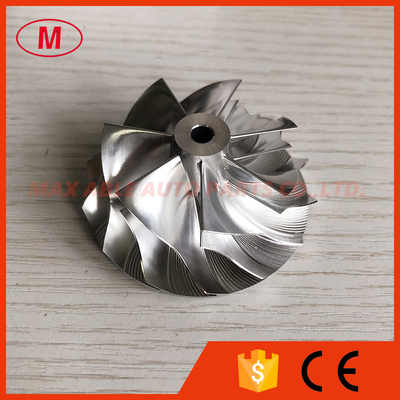

1.Model:TD04 FORWARD
3.Size:
Nose diamter:12.75mm
inducer:46.25mm
Exduder:57.81mm
Tapered tip exducer:60.11mm
Tip height:5.95mm
Superback:1.90mm
Overall height:26.50mm
bore size :5.00mm
bore type:through
Trailing Angle:45 degree
Cutback:2.2
SP height angle:-6.30
Splitter height:14.55
Blade height:22.35mm
Tapered tip angle:13.6 degree
It is custom size,please check carefully before buying.
7+7 blades
Forward rotation
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
