| Place of Origin: | CHINA |
| Brand Name: | NO |
| Model Number: | T04E |
| Minimum Order Quantity: | 10pcs |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT/western union/paypal |
| Supply Ability: | 10000pcs |
1. MODEL:T04E reverse

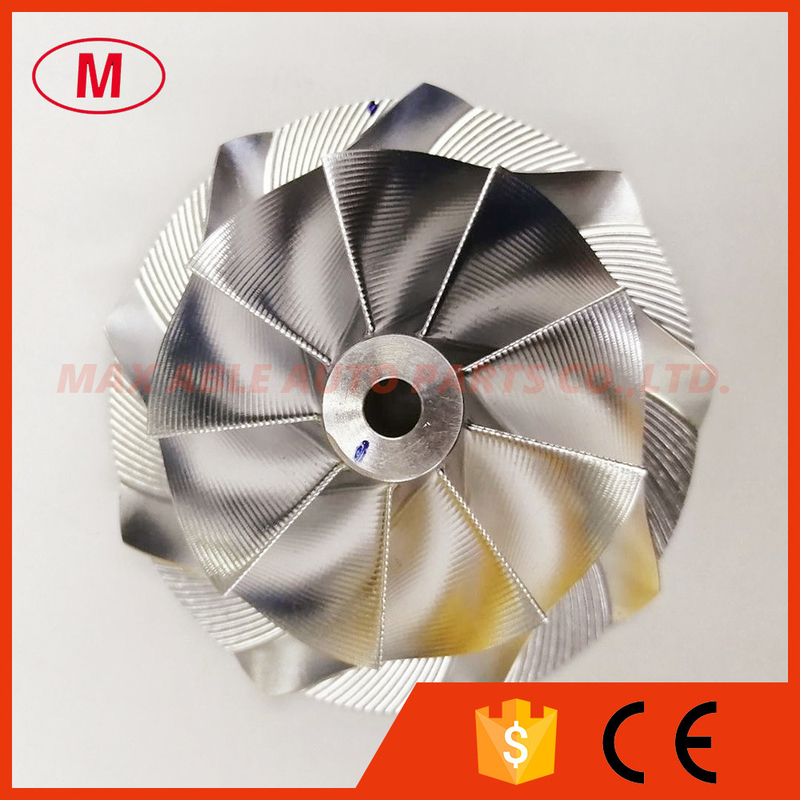

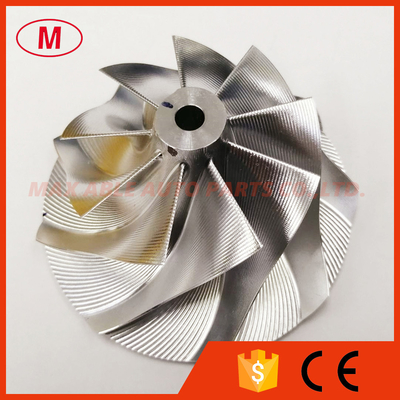

2. T04E reverse 59.00/80.00mm 9+0 BLADES Point milling Turbo aluminum 2618/milling/Billet compressor wheel .
3.Size:
Nose diameter:16.00mm
Inducer:59.00mm
Exducer:80.00mm
Tapered tip exducer :82.55mm
Tip height:5.64mm
Superback:2.35mm
Overall height:35.77mm
Bore size:6.35mm
Trailing angle:35
Cutback:6.5
SP Height angle:0.00
Blades height:29.00mm
Splitter height:0.00mm
9+0 blades
Reverse rotation
Tapered tip angle:15.1 degree
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.Any questions please send email to me.
All the compressor wheel have been balanced.
