TD04HL 19T reverse 46.02/58.00mm 6+6 blades 49189-X Turbocharger milling/aluminum 2618/billet compressor wheel

China TD04HL 19T reverse 46.02/58.00mm 6+6 blades 49189-X Turbocharger milling/aluminum 2618/billet compressor wheel supplier
TD04HL 19T reverse 46.02/58.00mm 6+6 blades 49189-X Turbocharger milling/aluminum 2618/billet compressor wheel supplier TD04HL 19T reverse 46.02/58.00mm 6+6 blades 49189-X Turbocharger milling/aluminum 2618/billet compressor wheel supplier TD04HL 19T reverse 46.02/58.00mm 6+6 blades 49189-X Turbocharger milling/aluminum 2618/billet compressor wheel supplier TD04HL 19T reverse 46.02/58.00mm 6+6 blades 49189-X Turbocharger milling/aluminum 2618/billet compressor wheel supplier

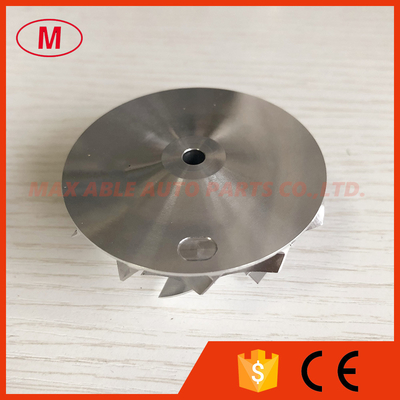

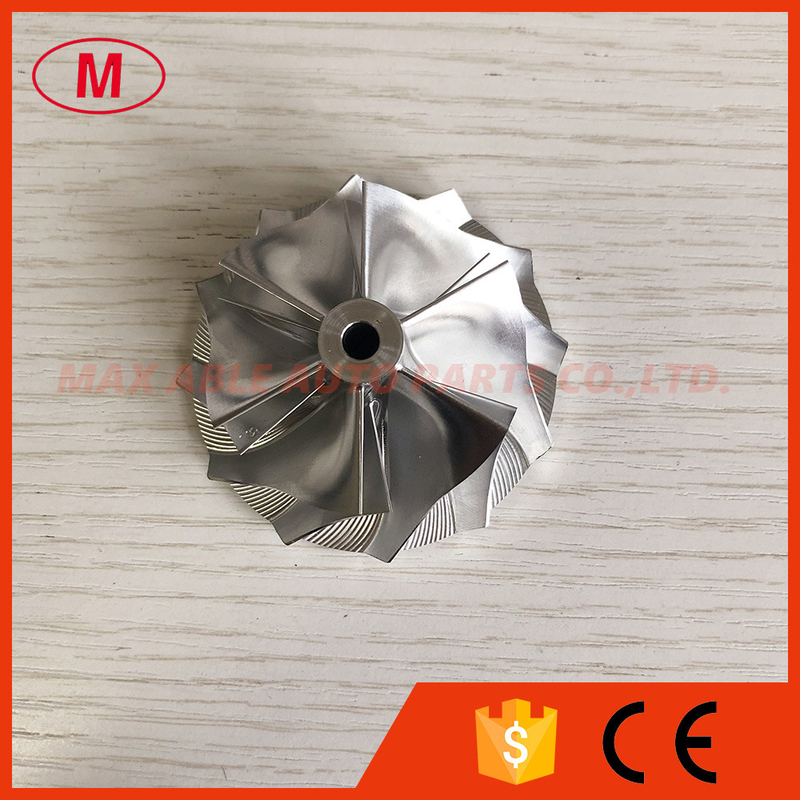

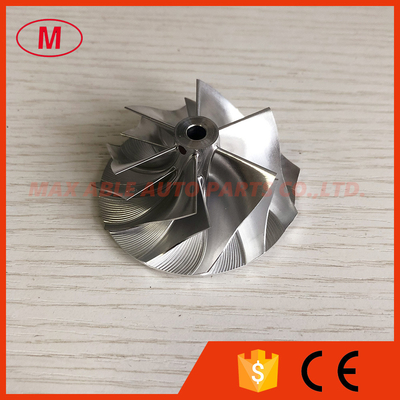

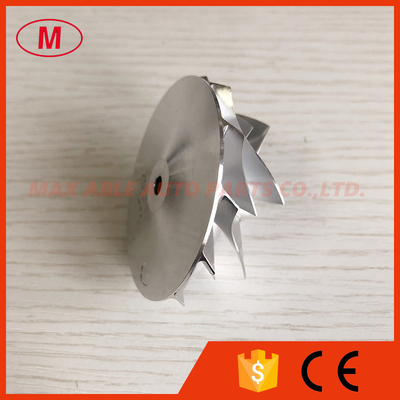

Large Image :  TD04HL 19T reverse 46.02/58.00mm 6+6 blades 49189-X Turbocharger milling/aluminum 2618/billet compressor wheel

Product Details:

Brand Name: NO
Certification: ISO
Model Number: TD04HL 19T

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Packaging Details: neutral packing
Delivery Time: 3-7 days
Payment Terms: TT ,western union ,paypal
Supply Ability: 1000pcs
Contact Now
Detailed Product Description

TD04HL 19T reverse 46.02/58.00mm 6+6 blades 49189-X Turbocharger milling/aluminum 2618/billet compressor wheelTD04HL 19T reverse 46.02/58.00mm 6+6 blades 49189-X Turbocharger milling/aluminum 2618/billet compressor wheelTD04HL 19T reverse 46.02/58.00mm 6+6 blades 49189-X Turbocharger milling/aluminum 2618/billet compressor wheelTD04HL 19T reverse 46.02/58.00mm 6+6 blades 49189-X Turbocharger milling/aluminum 2618/billet compressor wheel1. MODEL:TD04HL 19T reverse
2.TD04HL 19T reverse 46.02/58.00mm 6+6 blades 49189-X BILLET Turbocharger Billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose Diameter:11.37mm
Inducer:46.02mm
exducer:58.00mm
Tapered tip exducer:60.77mm
Tip height:5.26mm
Superback:1.90mm
bore size :5.0mm
Overall height:26.13mm
Trailing angle:60
Cutback:0.0
Blade height:22.10mm
Sp height angle:-3.50
Splitter height:14.90mm
6+6 blades
Reverse rotation
It is for OE compressor housing
Tapered tip angle:18 degree
4.High quality and competitive price.
5.if you want more details, please send email to me.

All the compressor wheel have been balanced.
skype : maxabledieselparts
wechat/whatsapp:+86-18018657719
TD04HL 19T reverse 46.02/58.00mm 6+6 blades 49189-X Turbocharger milling/aluminum 2618/billet compressor wheel
