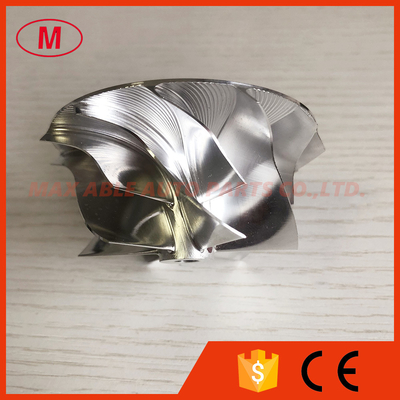

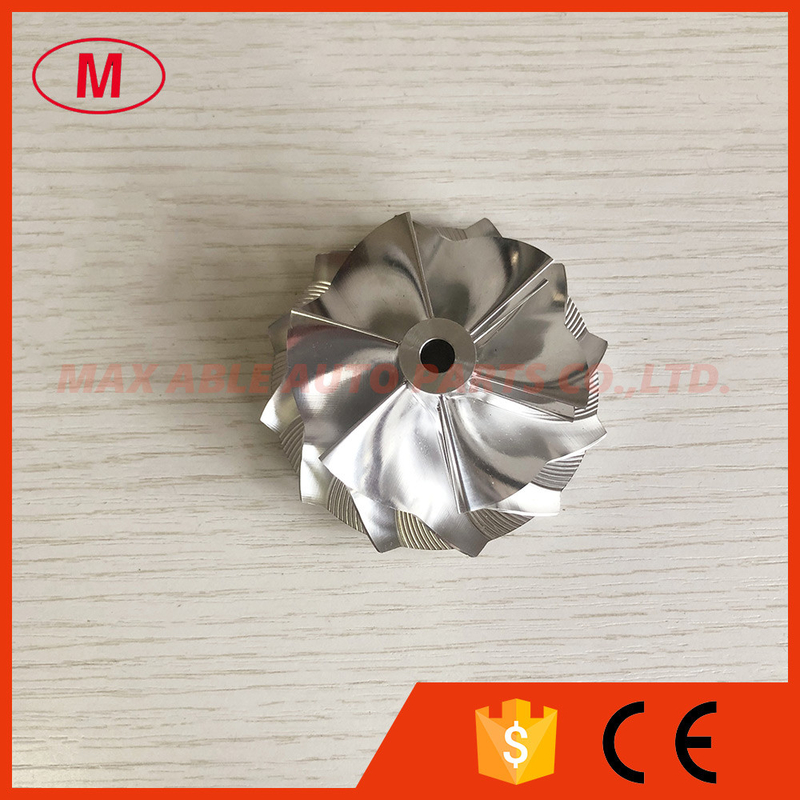

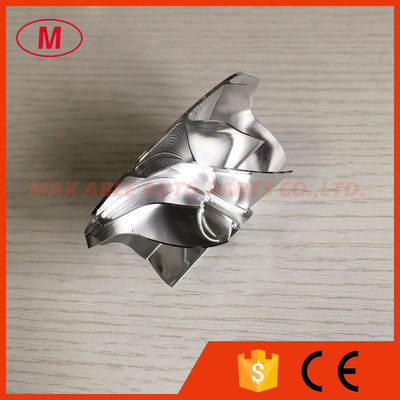

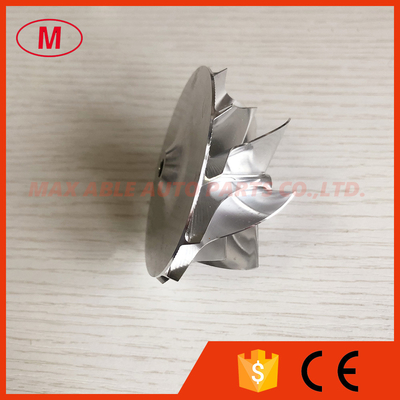

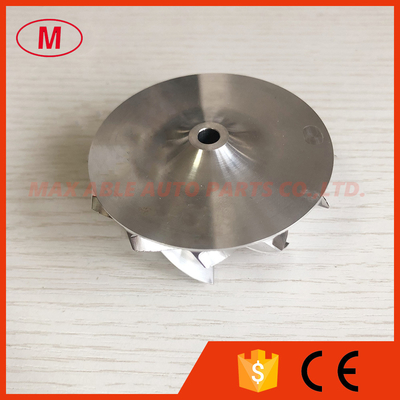

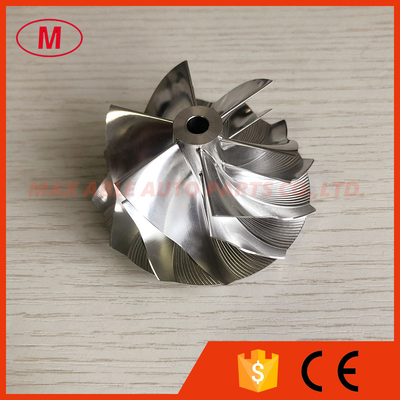

S100-EFR 53.90/67.00mm 1167-123-2000 6+6 blades performance Billet/milling/Aluminum 2618 compressor wheel for EFR6758

1. MODEL:S100-EFR forward

2.S100-EFR 53.90/67.00mm 1167-123-2000 6+6 blades performance Billet/milling/Aluminum 2618 compressor wheel for EFR6758 179388/179374

3.Size:

Nose diameter:13.40mm

inducer:53.90mm

Inducer:67.00mm

Tapered tip exducer:71.36mm

Tip height:4.77mm

Superback:4.20mm

Overall height:35.60mm

bore size :6.00mm

bore type:through

Trailing angle:50

SP height angle:-0.60

Blade height:29.30mm

Splitter height:18.40mm

Tapered tip Angle: 30 degree

Cutback:0.0

6+6 blades

forward rotation

It is for OE compressor housing

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheel have been balanced.
