Model Number: | TD05H |
Minimum Order Quantity: | 1PC |
---|---|
Packaging Details: | neutral packing |
Delivery Time: | 3-7 days |
Payment Terms: | TT ,western union ,paypal |
Supply Ability: | 1000 |
Type: | Turbochargers |
---|
1. MODEL:TD05H reverse

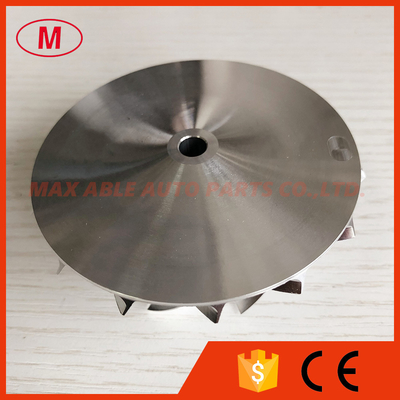

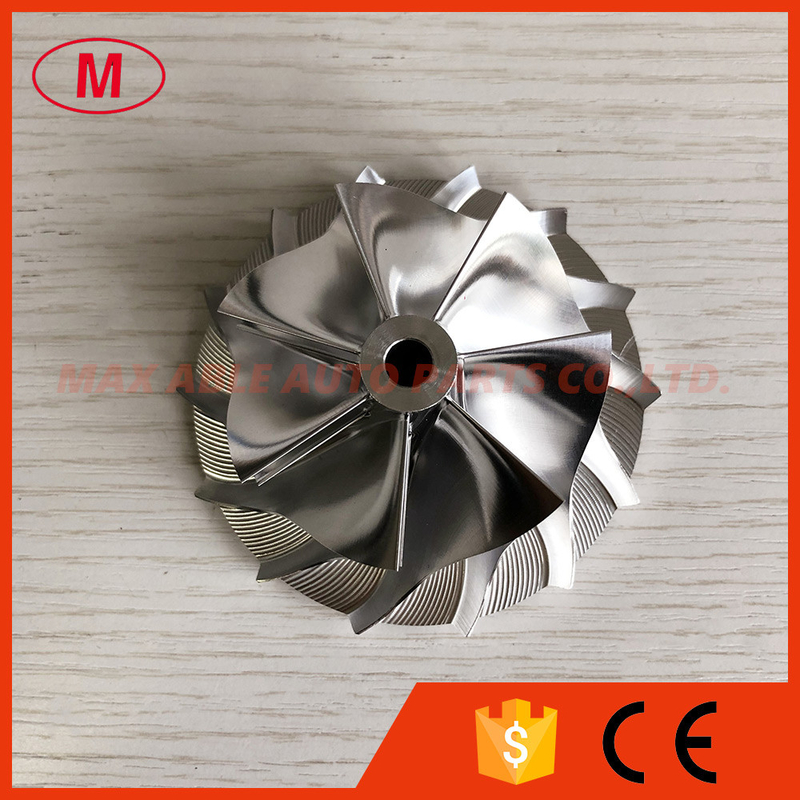

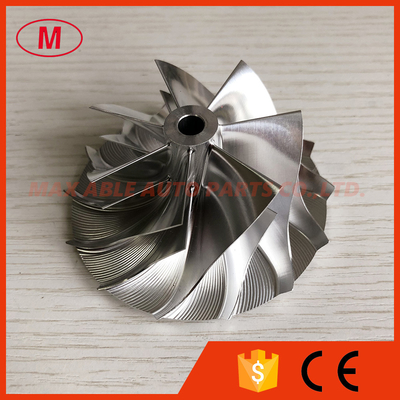

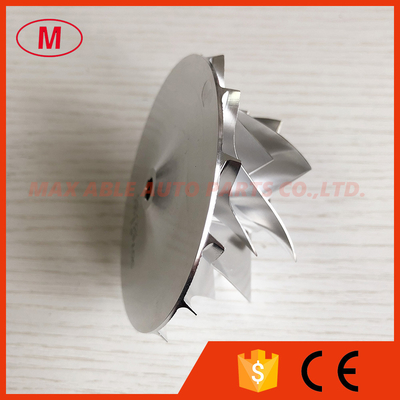

2. TD05H reverse 55.50/76.13mm 7+7 blades Turbocharger milling/aluminum 2618/billet compressor wheel
3.Size:
Nose diameter:13.52mm
Inducer:55.50mm
Exducer:76.13mm
Tapered tip exducer:80.54mm
Tip height:4.82mm
Superback:2.90mm
Overall height:35.55mm
Bore:6.50mm
bore type:through
Trailing angle:65
Blade height:31.67mm
Cutback:-2.5
Splitter height:20.10mm
SP height angle:-9.50
7 long 7 short
reverse rotation
Tapered tip angle: 30 degree
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.Any questions please send email to me
We can produce as your requirement.
All the compressor wheels have been balanced.
