| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | K26 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |

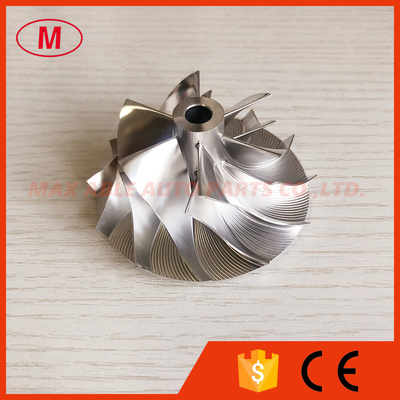

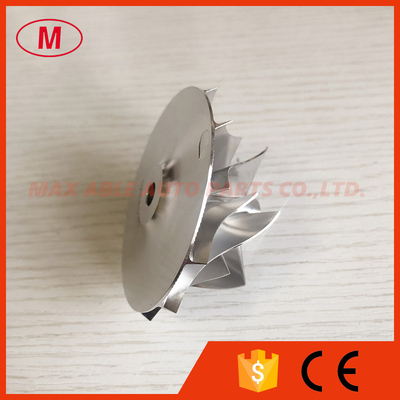

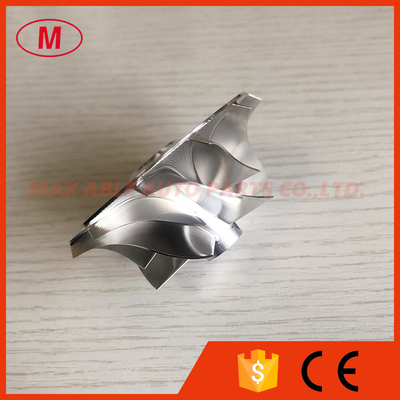

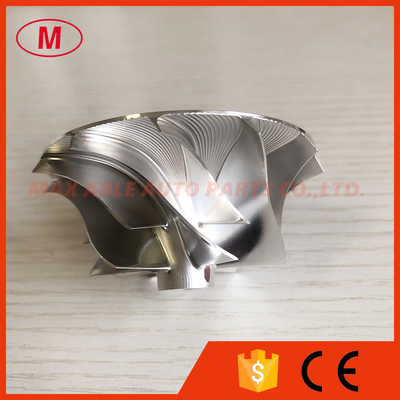

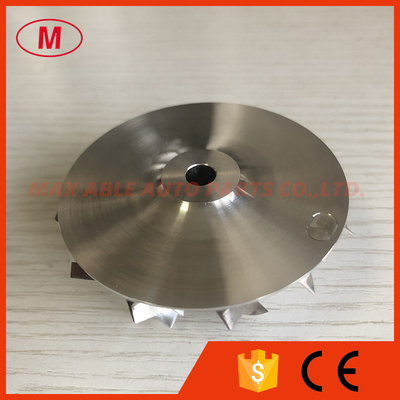

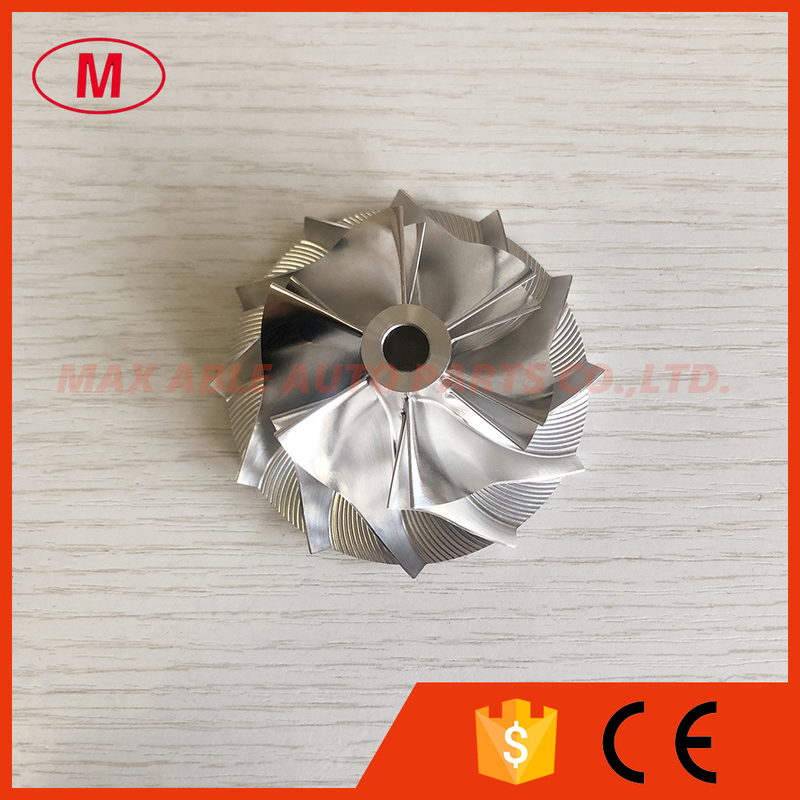

1.Model:K26 forward
2.K26 47.42/65.95mm 5326-123-2202 6+6 blades turbo milling/aluminum 2618/billet compressor wheel for 5324-970-7200
3.SIZE:
Nose Diameter:13.52mm
inducer:47.42mm
Exducer:65.95mm
Tapered tip exducer:70.39mm
Tip height:4.85mm
Superback:2.70mm
Overall height:33.64mm
bore size :7.02mm
Trailing angle:65
Cutback:0.0
Splitter height:19.45mm
sp height angle:-9.00
Blade height:26.65mm
6+6blades
forward rotation
Tapered tip angle:30 degree
It is for OE compressor housing
4.Good quality and competitive price
5. aluminum 2618/milling/ billet high performance compressor wheel
6.Application:
5324-970-7200
7.Please send email to me or talk to me on online ,if you want to know more details.
All the compressro wheel have been balanced.
