Home ProductsBillet compressor wheel

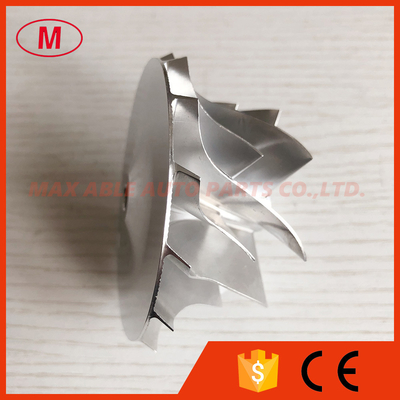

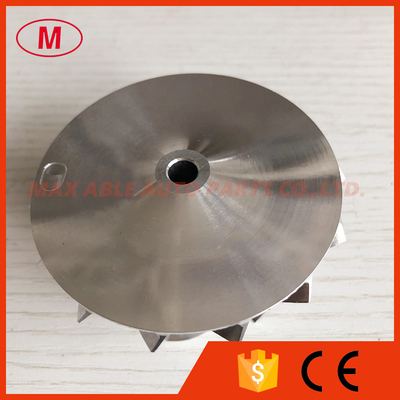

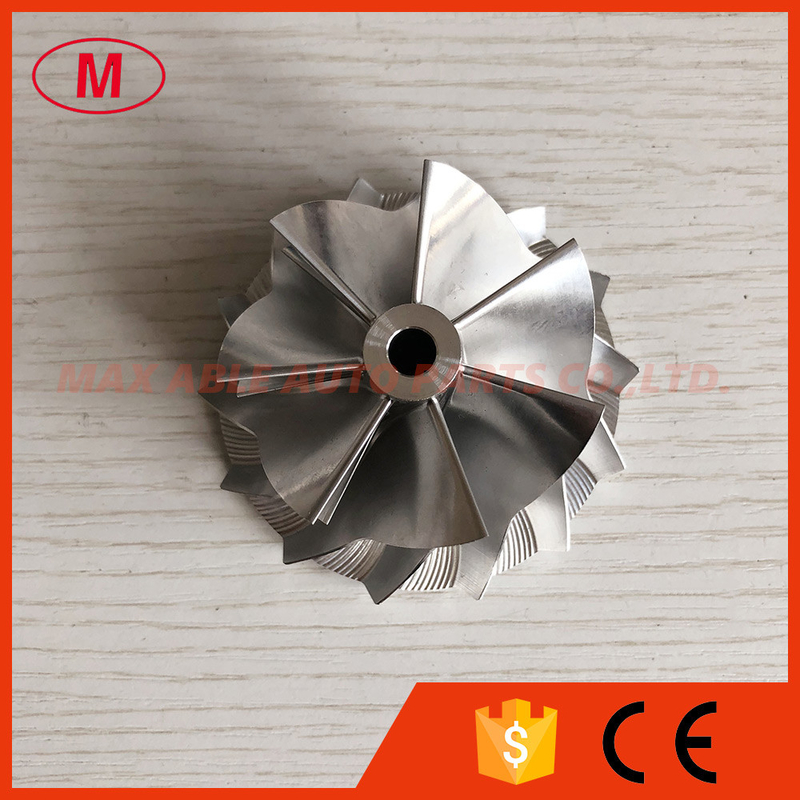

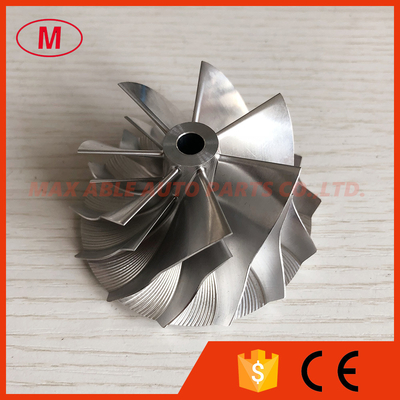

TD05H 20G reverse 49179-43400 52.56/68.01mm 7+7 blades performance cutback:-10.00 turbo billet compressor wheel

TD05H 20G reverse 49179-43400 52.56/68.01mm 7+7 blades performance cutback:-10.00 turbo billet compressor wheel

    • TD05H 20G reverse 49179-43400 52.56/68.01mm 7+7 blades performance cutback:-10.00 turbo billet compressor wheel
    • TD05H 20G reverse 49179-43400 52.56/68.01mm 7+7 blades performance cutback:-10.00 turbo billet compressor wheel
    • TD05H 20G reverse 49179-43400 52.56/68.01mm 7+7 blades performance cutback:-10.00 turbo billet compressor wheel
    • TD05H 20G reverse 49179-43400 52.56/68.01mm 7+7 blades performance cutback:-10.00 turbo billet compressor wheel
    • TD05H 20G reverse 49179-43400 52.56/68.01mm 7+7 blades performance cutback:-10.00 turbo billet compressor wheel

    Product Details:

    Brand Name: NO
    Certification: ISO
    Model Number: TD05H 20G

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Price: DISCUSS
    Packaging Details: neutral packing
    Delivery Time: 3-7 DAYS
    Payment Terms: T/T, Western Union, MoneyGram,PAYPAL
    Supply Ability: 1000PCS
    Contact Now
    Detailed Product Description

    .

    1.Model:TD05H 20G Reverse

    2.TD05H 20G REVERSE 49179-43400 52.56/68.01mm 7+7 blades high performance High Blade Height turbo billet/milling/aluminum 2618 compressor wheel

    3.Size:
    Nose diameter:13.42mm
    Inducer:52.56mm
    Exducer:68.01mm
    Tapered tip exducer:73.05mm
    Tip height:5.37mm
    Superback:2.90mm
    Overall height:36.40mm
    Bore size:6.50mm
    bore type:through
    Trailing angle:60
    Cutback:-10.0
    SP Height angle:-10.00
    Blade height:34.88mm
    Splitter height:22.70mm
    7+7 blades
    Reverse rotation
    Tapered tip angle:30 degree
    It is custom size ,please check carefully before buying.

    4.High quality ,competitive price and good service.

    5.We can also produce as your requirement.
    All the compressor wheels have been balanced.

    6.If you want more details, please send email to me or talk to me online.
    We will try our best to meet your needs.



    Skype: maxabledieselparts

    Wechat/Whatsapp:+86-18018657719

    TD05H 20G reverse 49179-43400 52.56/68.01mm 7+7 blades performance cutback:-10.00 turbo billet compressor wheelTD05H 20G reverse 49179-43400 52.56/68.01mm 7+7 blades performance cutback:-10.00 turbo billet compressor wheelTD05H 20G reverse 49179-43400 52.56/68.01mm 7+7 blades performance cutback:-10.00 turbo billet compressor wheelTD05H 20G reverse 49179-43400 52.56/68.01mm 7+7 blades performance cutback:-10.00 turbo billet compressor wheelTD05H 20G reverse 49179-43400 52.56/68.01mm 7+7 blades performance cutback:-10.00 turbo billet compressor wheel
