| Brand Name: | NO |
| Model Number: | TD04H |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:TD04H 15T Forward

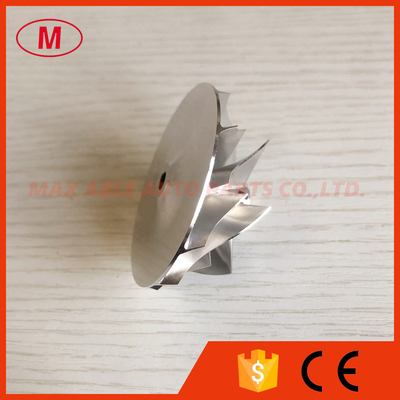

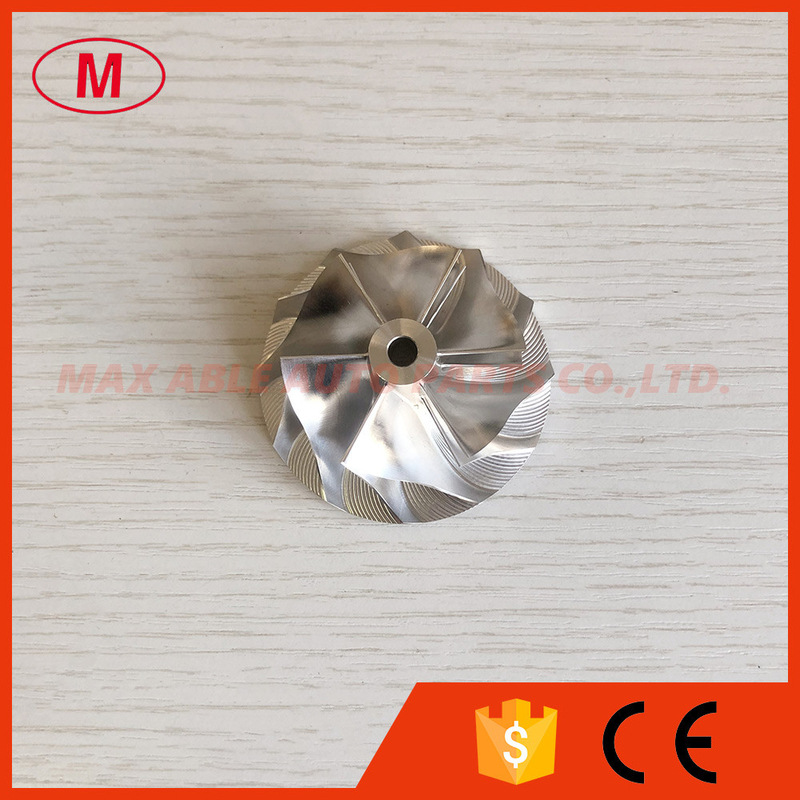

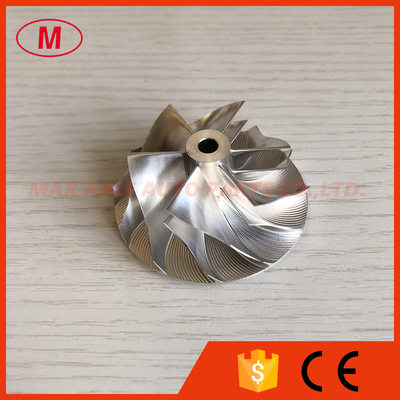

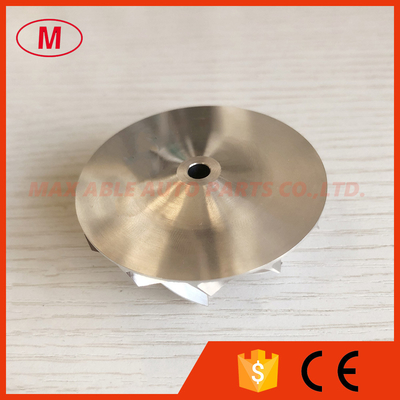

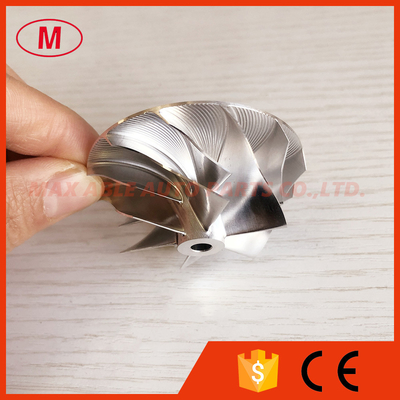

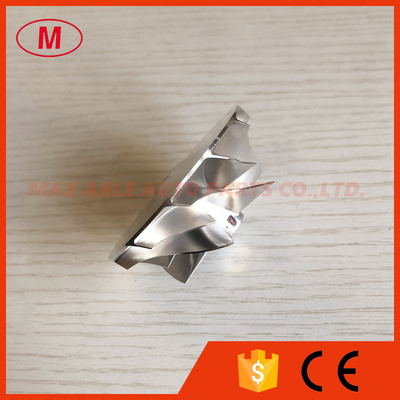

2. TD04H 15T 41.93/55.69mm 6+6 blades Turbo Billet/Milling/aluminum 2618 compressor wheel .
3.Size:
Nose diameter:11.56mm
Inducer:41.93mm
Exducer:55.69mm
Tip height:5.20mm
Superback:1.90mm
Overall height:23.90mm
Bore size:5.00mm
Trailing angle:60
Cutback:0.0
SP height angle:-6.00
Blade height:20.17mm
Splitter height:13.50
6+6 blades
Forward
Tapered tip angle:0 degree
IT is for OE compressor housing
4.High quality and competitive price.
5.Any questions please send email to me.
6.Application: M-itsubishi
All the compressor wheels have been balanced.
we can do as the requirement ,the. minimun order is 5pcs
