| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | TD05 18G |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |

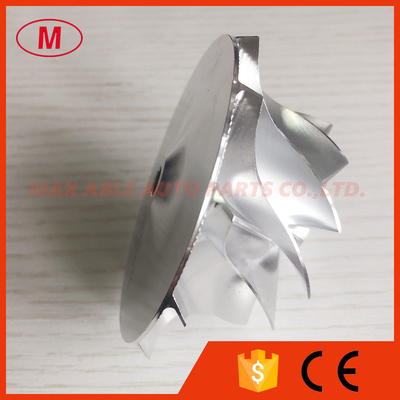

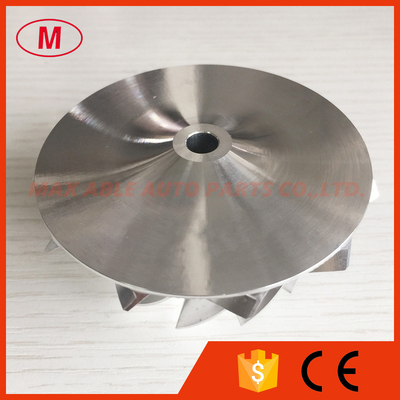

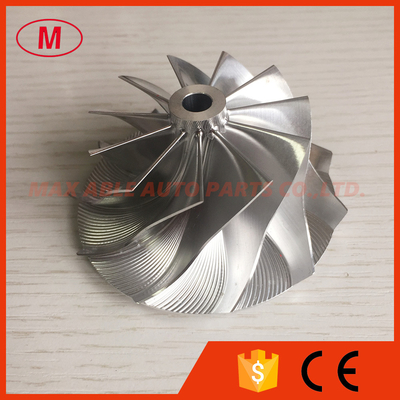

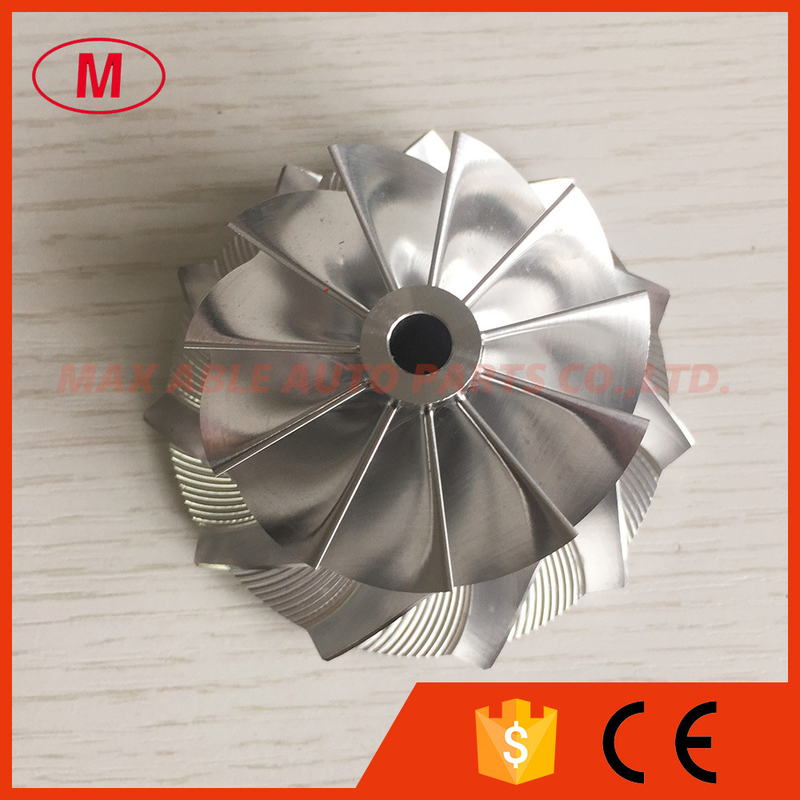

1.Model:TD05H 18G reverse
3.Size:
Nose diamter:12.80mm
inducer:50.39mm
Exduder:68.01mm
Tapered tip exducer:72.46mm
Tip height:4.85mm
Superback:2.90mm
Overall height:35.20mm
bore size :6.50mm
bore type:through
Trailing Angle:50 degree
Cutback:0.00
Sp height angle:0.00
Splitter height:0.00
Blade height:28.90mm
Tapered tip Angle:30 degree
11+0 blades
Forward rotation
Fit for OE compressor housing
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
