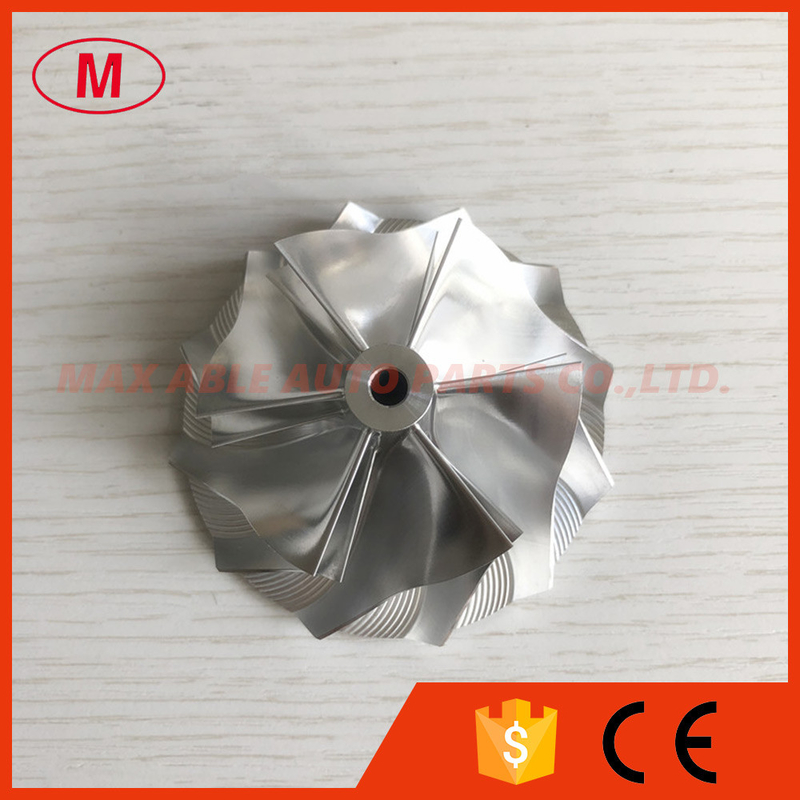

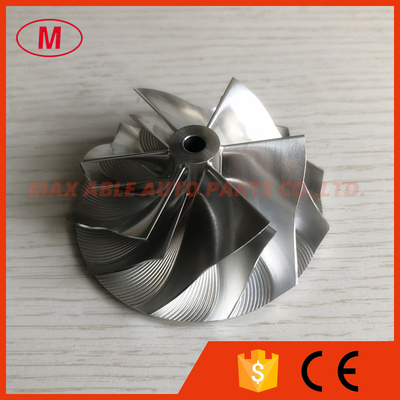

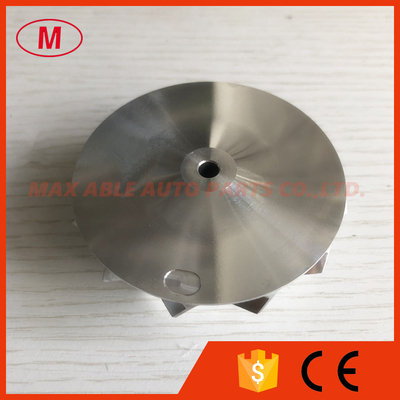

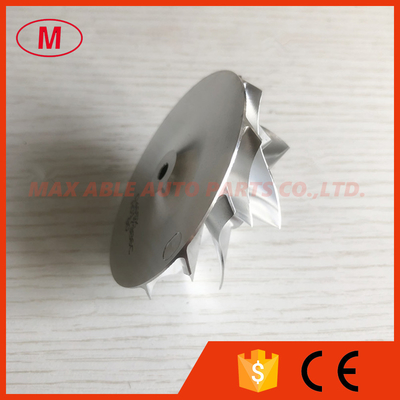

TD04H 20G reverse 6+6 blades performance 52.56/68.00mm Small Nose High Blade aluminum 2618/billet compressor wheel

TD04H 20G reverse 6+6 blades performance 52.56/68.00mm Small Nose High Blade aluminum 2618/billet compressor wheel

    • TD04H 20G reverse 6+6 blades performance 52.56/68.00mm Small Nose High Blade aluminum 2618/billet compressor wheel
    • TD04H 20G reverse 6+6 blades performance 52.56/68.00mm Small Nose High Blade aluminum 2618/billet compressor wheel
    • TD04H 20G reverse 6+6 blades performance 52.56/68.00mm Small Nose High Blade aluminum 2618/billet compressor wheel
    • TD04H 20G reverse 6+6 blades performance 52.56/68.00mm Small Nose High Blade aluminum 2618/billet compressor wheel
    • TD04H 20G reverse 6+6 blades performance 52.56/68.00mm Small Nose High Blade aluminum 2618/billet compressor wheel

    Product Details:

    Brand Name: NO
    Certification: ISO
    Model Number: TD04H 20G

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT ,western union ,paypal
    Supply Ability: 1000
    Contact Now
    Detailed Product Description

    1. MODEL:TD04H 20G reverse
    2.TD04H 20G 6+6 blades high performance 52.56/68.00mm Small Nose, High Blade turbo Billet/milling/aluminum 2618 compressor wheel
    3.Size:
    Nose Diameter:12.09mm
    Inducer:52.56mm
    exducer:68.00mm
    Tapered tip exducer:71.02mm
    Tip height:5.64mm
    Superback:1.90mm
    bore size :5.00mm
    Bore type:through
    Overall height:28.70mm
    Trailing Angle:45
    Cutback:0.0
    Blade height:25.08mm
    Splitter height:17.40mm
    Sp height angle:-5.00
    6+6 blades Reverse
    Tapered tip angle:18 degree
    It is custom size ,please check carefully before buying.
    4.High quality and competitive price.
    5.if you want more details, please send email to me.

    All the compressor wheels have been balanced.
