| Model Number: | TD05H 16G |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |

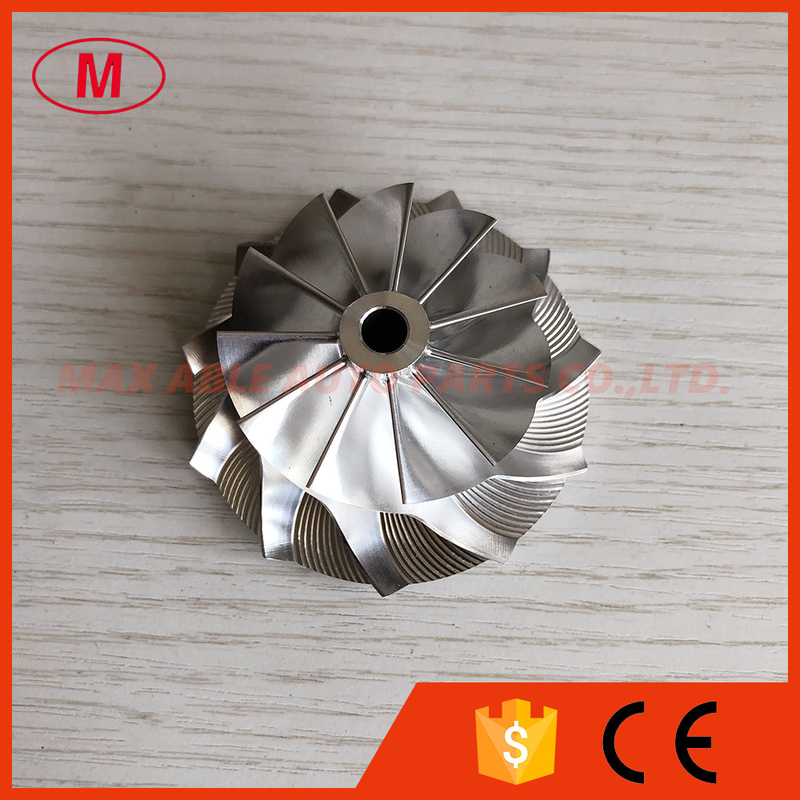

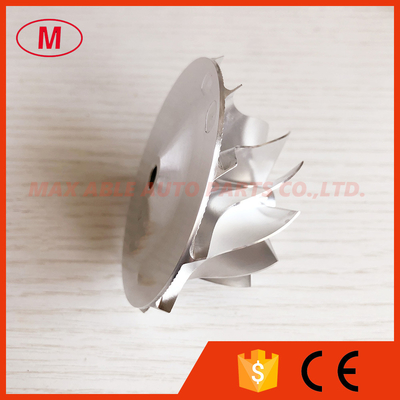

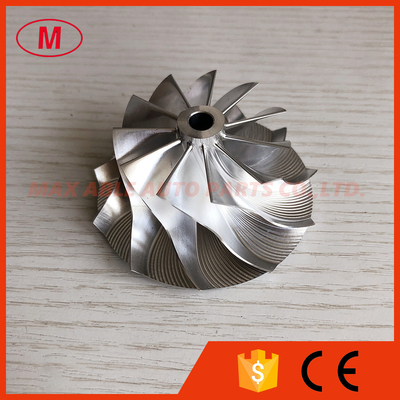

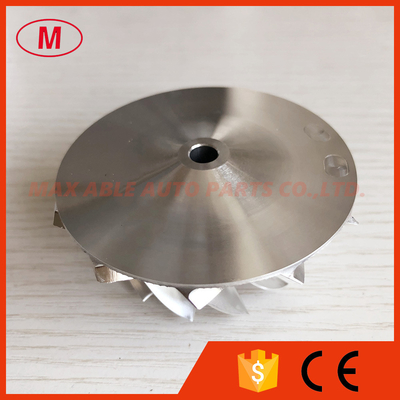

1. MODEL:TD05H 16G Forward
2.TD05H 16G 48.30/68.01mm 11+0 blades 49178-01560 high performance Turbo Billet/milling/Aluminum 2618 compressor wheel
3.Size:
Nose diameter:12.80mm
inducer:48.30mm
Inducer:68.01mm
Tapered tip exducer:72.18mm
Tip height:4.61mm
Superback:2.90mm
Overall height:35.00mm
bore size :6.50mm
bore type:through
Trailing Angle:45 degree
Cutback:0.0
Sp height Angle:0.00
Splitter height:0.00mm
Blade height:28.90mm
11+0 blades
forward
Tapered tip angle:30 degree
It is fit for OE Compressor housing
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the compressor wheels have been balanced.
