| Model Number: | TD04HL 13T |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |

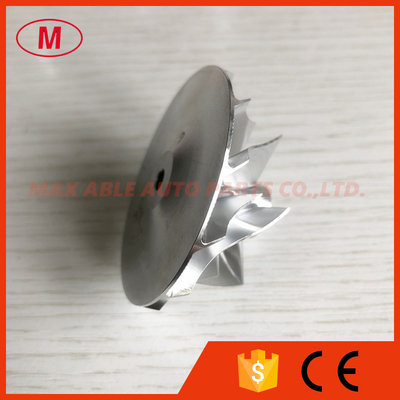

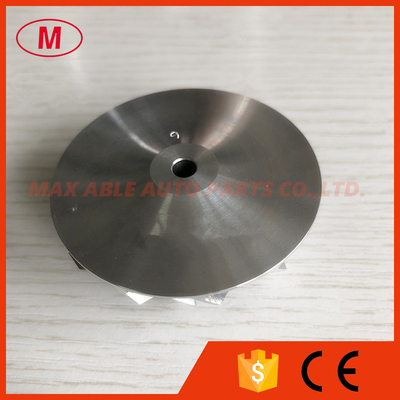

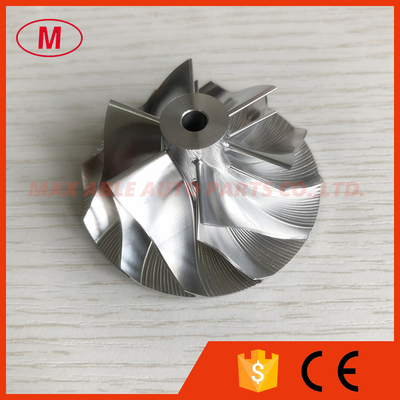

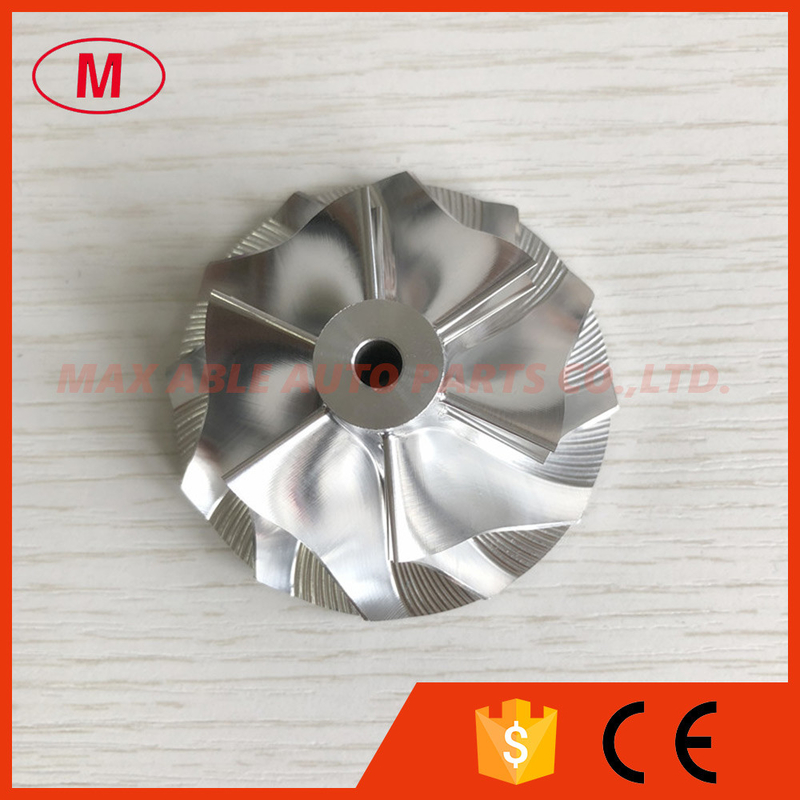

1.Model:TD04HL 13T 40.61/56.02mm 49377-04200 6+6 blades turbo milling/aluminum 2618/ billet compressor wheel
2.turbo Part no.:49377-04200 6+6 blades
3.SIZE:
Nose diameter:13.68mm
Inducer:40.61mm
Exducer:56.02mm
Tip height:5.00mm
Superback:1.83mm
Overall height:26.22mm
bore size :5.00mm
bore type:through
Trailing angle:45 degree
Cutback:0.0
Blade height:20.72mm
Splitter height:13.50mm
Sp height angle:0.30
6+6 blades
Forward rotation
Tapered tip angle:0 degree
It is for OE compressor housing.
4.Good quality and competitive price
5.all the billet compressor wheels have been balanced.
