Model Number: | TD04HL 13T |
Minimum Order Quantity: | 1PC |
---|---|
Packaging Details: | neutral packing |
Delivery Time: | 3-7 days |
Payment Terms: | TT ,western union ,paypal |
Supply Ability: | 1000pcs |

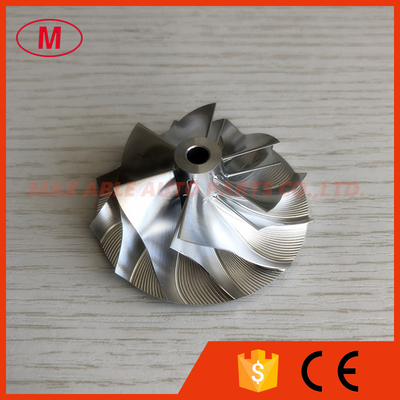

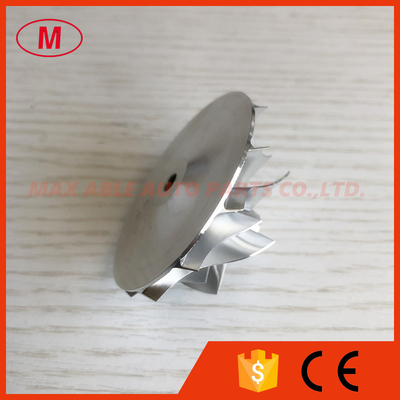

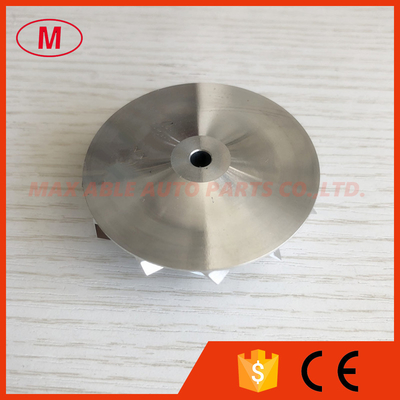

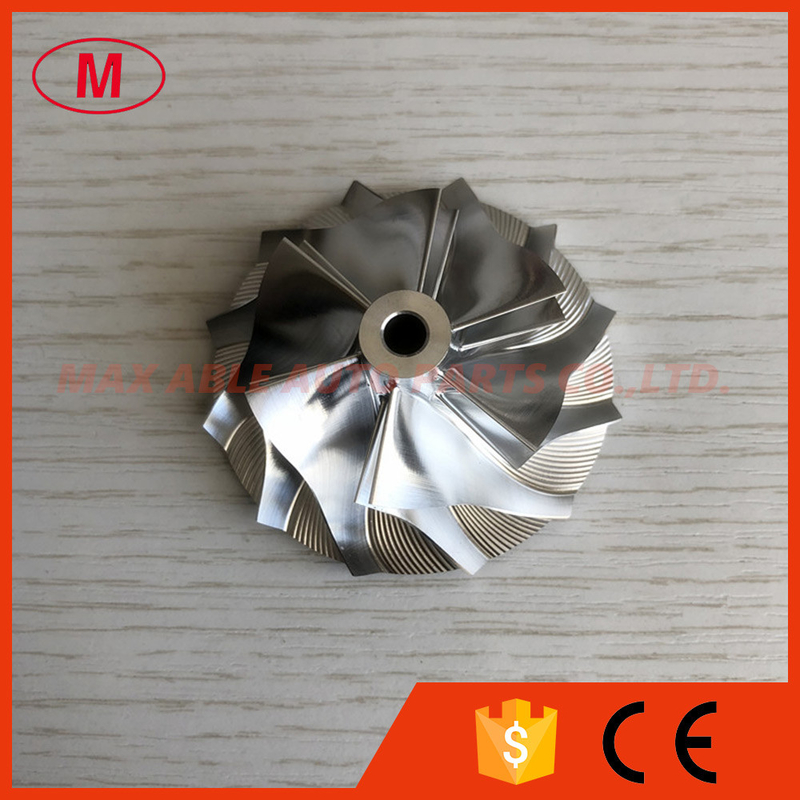

1.Model:TD04HL 13T 40.61/56.02mm 49377-04200 6+6 blades turbo milling/aluminum 2618/billet compressor wheel
2.turbo Part no.:49377-04200 6+6 blades
3.SIZE:
Nose diameter:10.91mm
Inducer:40.61mm
Exducer:56.02mm
Tapered tip exducer:58.45mm
Tip height:4.74mm
Superback:1.83mm
Overall height:25.71mm
bore size :5.00mm
bore type:through
Trailing angle:50 degree
Cutback:0.0
Sp height angle:-1.00
Splitter height:14.70mm
Blades height:20.06mm
6+6 blades
Forward
Tapered tip angle:18 degree
It is for OE compressor housing.
4.Good quality and competitive price
5.Billet compressor wheel
6.Please send email to me or talk to me on online ,if you want to know more details.
Skype: maxabledieselparts
Wechat/Whatsapp:+86-18018657719
