| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | TD05H |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:TD05H reverse

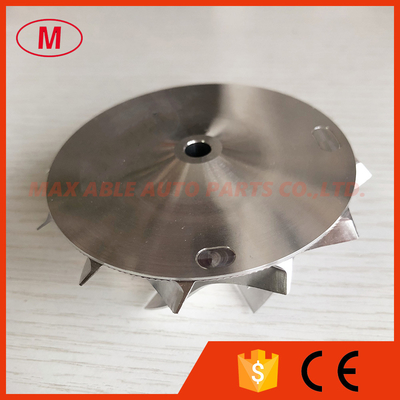

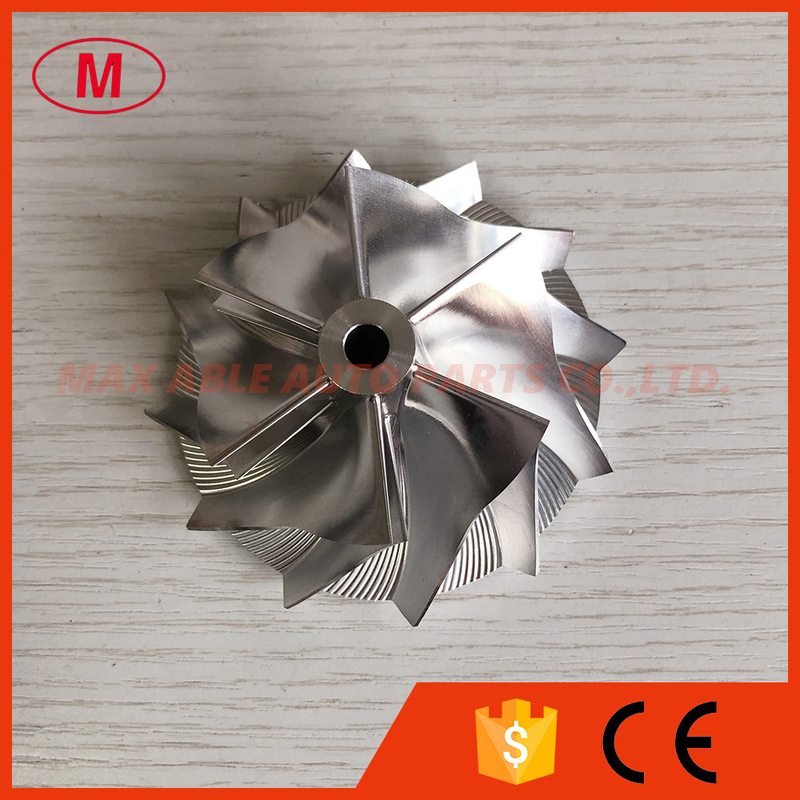

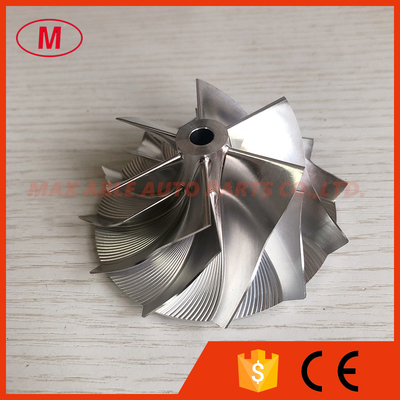

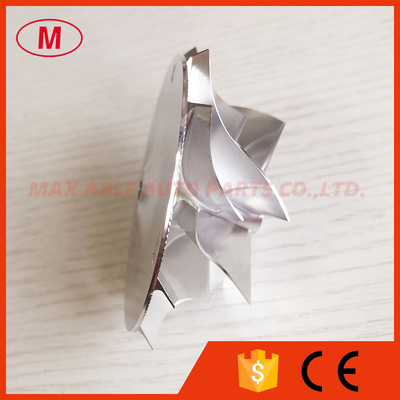

2.TD05H reverse 49179-02712 56.24/75.00mm 6+6 blades high performance lower blade turbo aluminum 2618/milling/ Billet compressor wheel
3.Size:
Nose diameter:14.28mm
Inducer:56.24mm
Exducer:75.00mm
Tapered tip exducer :83.80mm
Tip height:5.40mm
Superback:2.70mm
Overall height:34.80mm
Bore:6.50mm
Trailing angle:60
Cutback:0.0
Sp height angle:-2.90
Splitter height:19.30mm
Blade height:30.30mm
6+6 blades
Reverse rotation
Tapered tip angle: 45 degree
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.Any questions please send email to me.
We can produce as your requirement.
All the compressor wheel have been balanced.
