| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | TD05H 16G reverse |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |

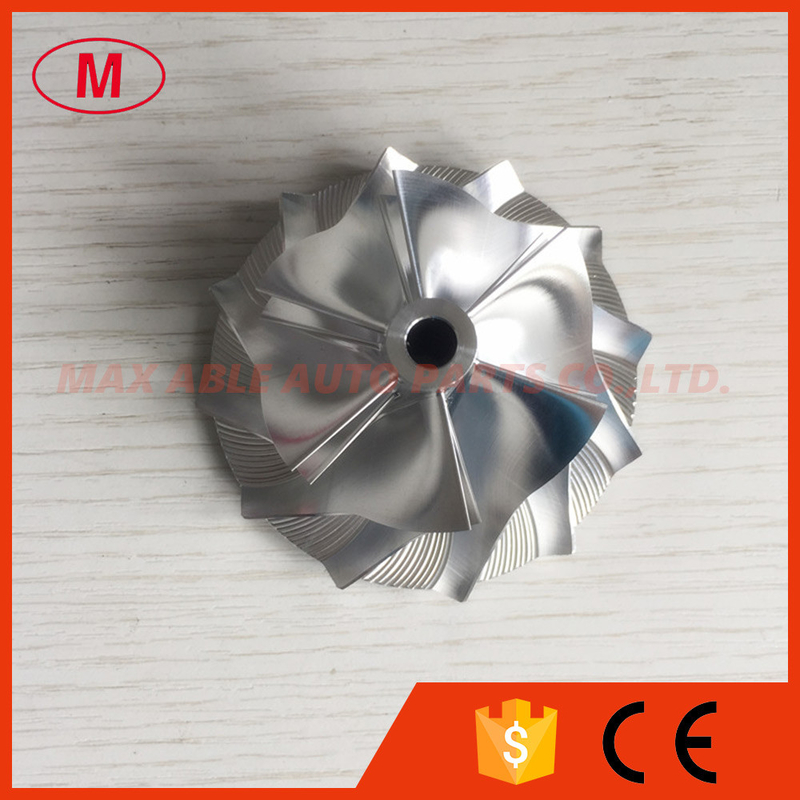

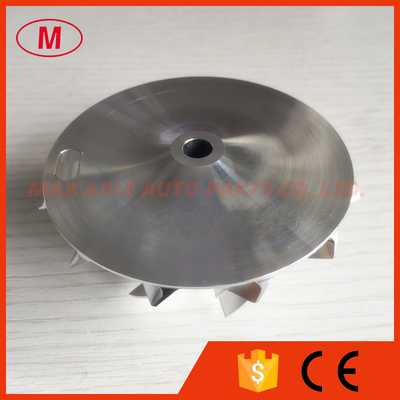

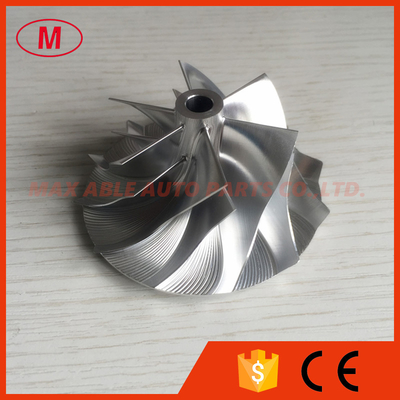

1. MODEL:TD05H 16G REVERSE
2.TD05H 16G reverse 48.30/68.01mm 6+6 blades high performance High Blade Height, Slimnose Billet/milling/aluminum 2618 compressor wheel for 49178-01500, 49178-01510, 49178-01520, 49178-01540, 49178-01550, 49178-01560, 49178-01570, 49178-01580, 49378-01510, 49378-01520, 49378-01530, 49378-01540, 49378-01550, 49378-01560, 49378-01580, 49378-01581
3.Size:
Nose diameter:11.51mm
Inducer:48.30mm
Exducer:68.01mm
Tapered tip exducer:72.18mm
Tip height:4.61mm
Superback:2.90mm
Ovearll height:35.00mm
Bore size:6.50mm
bore type:through
Trailing angle:45 degree
Cutback:0.0
SP Height angle:-2.00
Blades height:28.90mm
Splitter height:19.90mm
6+6 blades
reverse rotation
Tapered tip angle:30 degree
Fits OE Compressor Housing
4.High quality and competitive price.
5.Any questions please send email to me.
All the compressor wheel have been balanced.
