| Brand Name: | no |
| Certification: | ISO |
| Model Number: | TD05H 16G |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | Neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |
1. MODEL:TD05H 16G forward

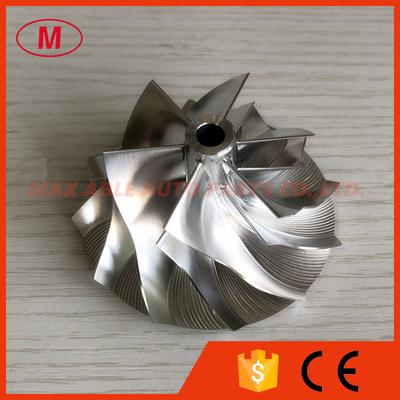

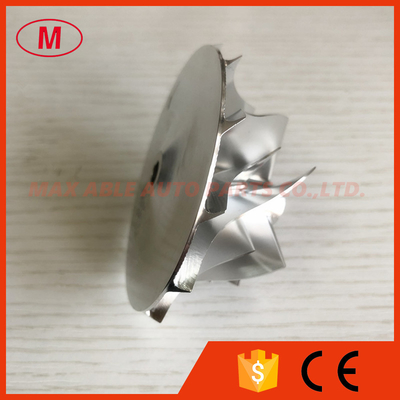

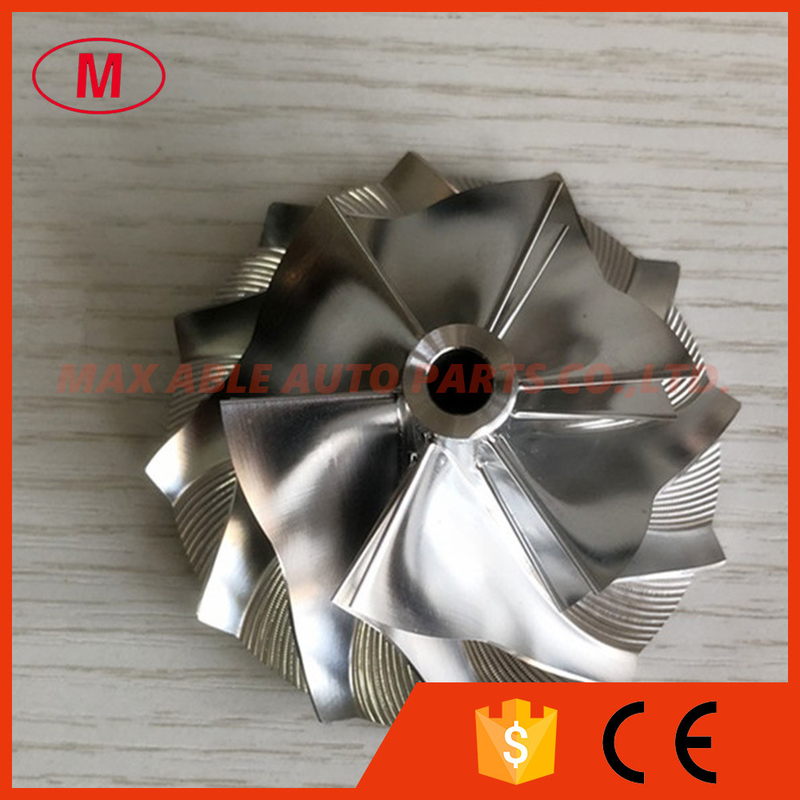

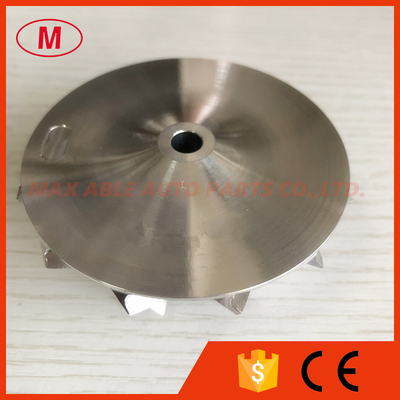

2.TD05H 16G 48.30/68.01mm 6+6 blades 49178-01560 high performance High Blade Height, Slimnose Turbo Billet/milling/Aluminum 2618 compressor wheel
3.Size:
Nose diameter:11.50mm
inducer:48.30mm
Inducer:68.01mm
Tapered tip exducer:72.18mm
Tip height:4.61mm
Superback:2.90mm
Overall height:35.00mm
bore size :6.50mm
bore type:through
Trailing Angle:60 degree
Blade height:28.90mm
Coutback:0.00mm
Splitter height:19.90mm
Sp height angle:-2.00
6+6 FORWARD
Tapered tip angle:30 degree
It is fit for OE Compressor housing
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the compressor wheels have been balanced.
