| Place of Origin: | CHINA |
| Brand Name: | NO |
| Model Number: | TF035 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT/western union/paypal |
| Supply Ability: | 1000 |
1. MODEL:TF035 13T/TF035HL-13TK3-4.0 forward

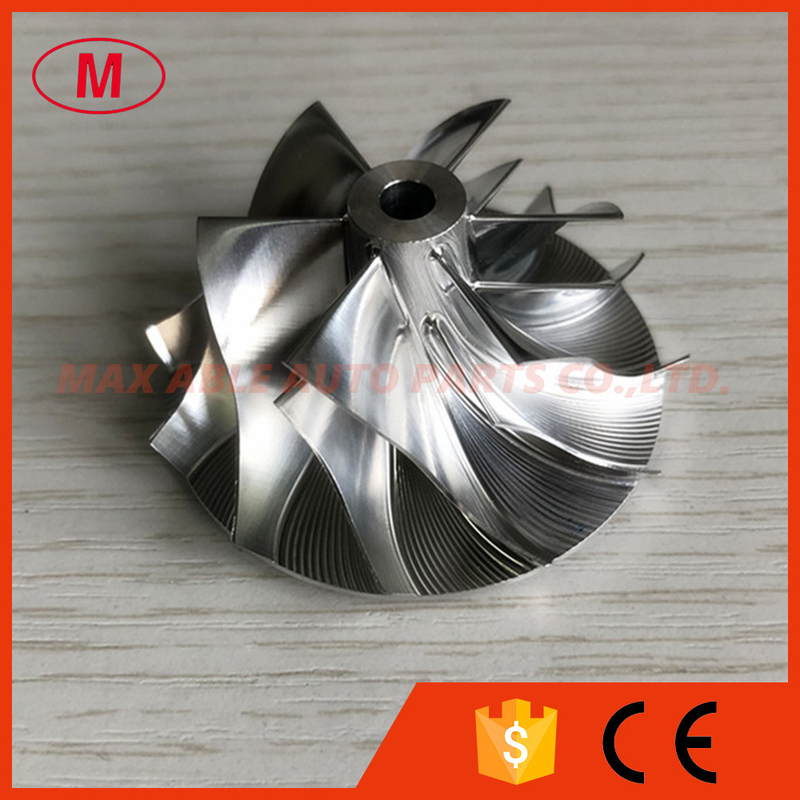

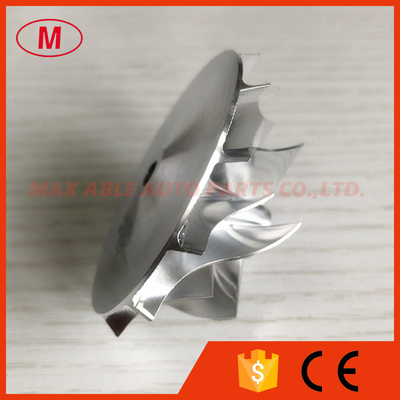

2.TF035 13T/TF035HL-13TK3-4.0 38.35/51.00mm 6+6 blades high performance Turbo aluminum 2618/milling/ Billet compressor wheel for 4M42T 49135-03802/ME194015
3.Size:
Nose diameter:10.59mm
Inducer:38.35mm
exducer:51.00mm
Tapered tip exducer:55.26mm
Tip height :4.69mm
superback:1.90mm
Overall height:24.20mm
Bore size:5.00mm
bore type:through
Trailing angle:65 DEGREE
Cutback:0.0
Blades height:20.35mm
Splitter height:14.05mm
SP Height angle:-3.00
6+6 blades
Forward rotation
Tapere tip angle:30 degree
It is for OE compressor housing
4.High quality and competitive price.
5.Any questions please send email to me.
All the compressor wheels have been balanced.
We can produce as your requirement.
