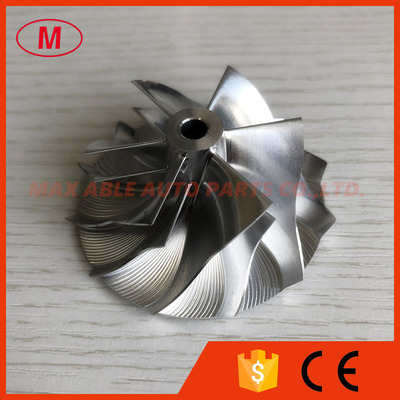

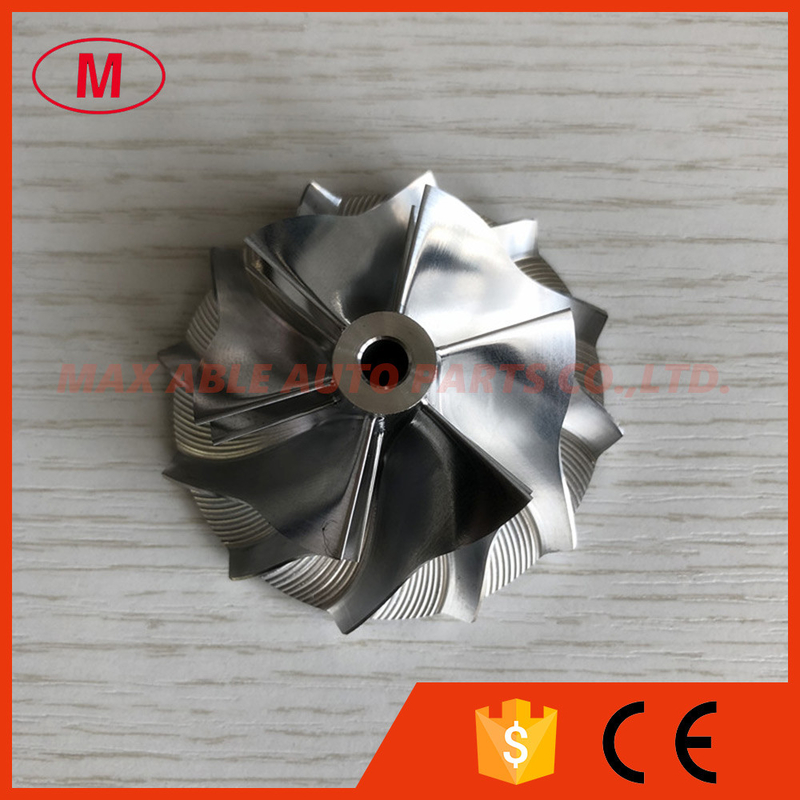

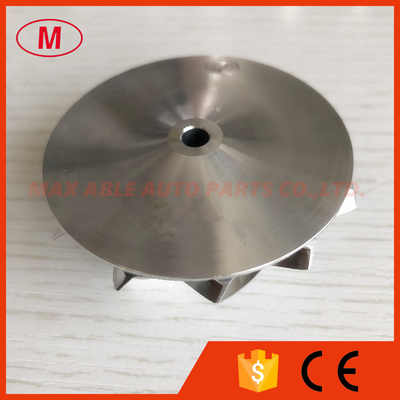

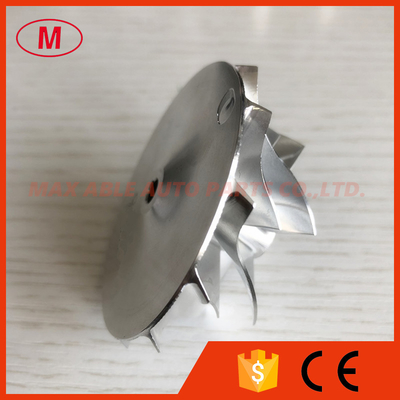

TD04HL 42.00/56.02mm 6+6 blades reverse turbo milling/aluminum 2618/billet compressor wheel for 49477-02003

3.Size:

Nose diamter:10.77mm

inducer:42.00mm

Exduder:56.02mm

Tapered tip exducer:59.95mm

Tip height:4.41mm

Superback:1.83mm

Overall height:26.20mm

bore size :5.00mm

bore type:through

Trailing Angle:55

Cutback:0.0

Sp height angle:-2.00

Splitter height:15.40mm

Blades height:22.38mm

It is custom size,please check carefully before buying.

6+6 blades

reverse rotation

Tapered tip angle:30 degree

4.High quality and competitive price.

5.if you want more details, please send email to me.

We can produce as your requirement.
