| Place of Origin: | CHINA |
| Brand Name: | NO |
| Model Number: | T88-38G |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT/western union/paypal |
| Supply Ability: | 1000 |
1.Model:T88-38G forward

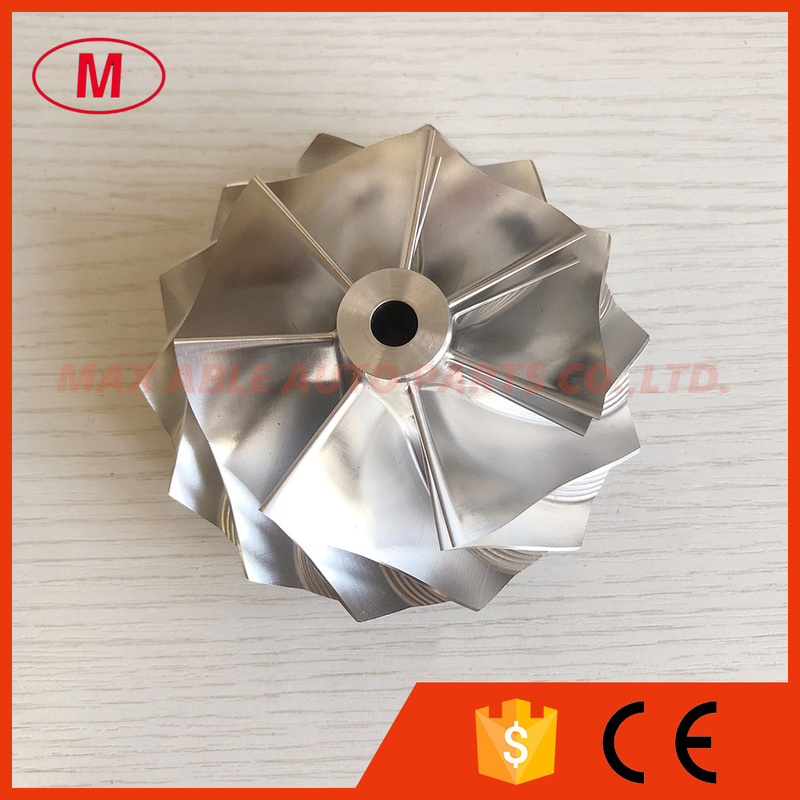

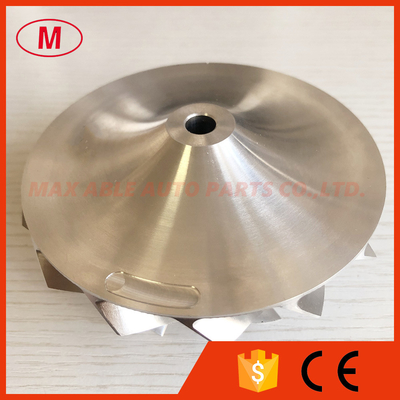

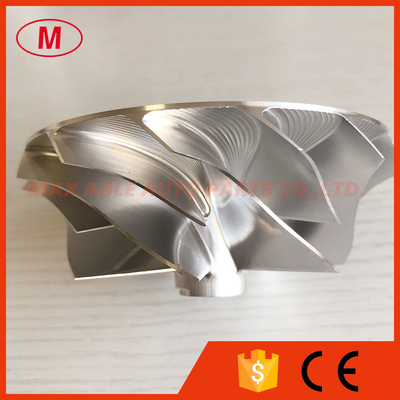

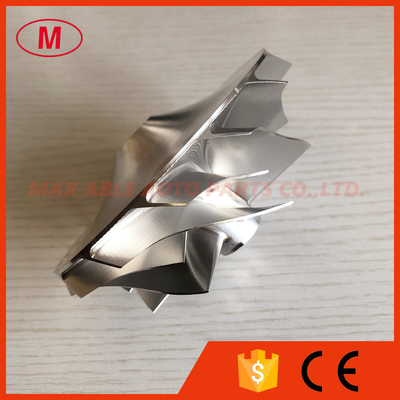

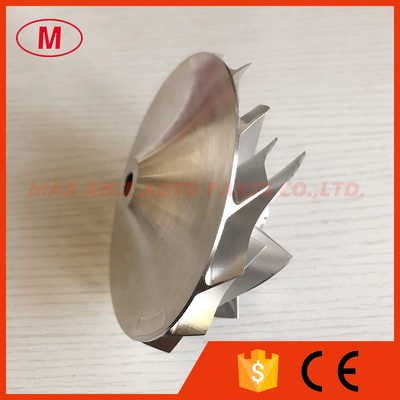

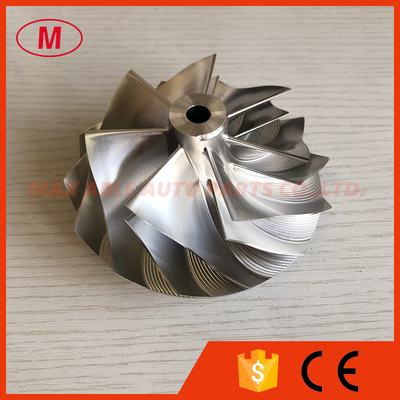

2.T88-38G 76.00/96.00mm 7+7 blades turbo billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diamter:19.33mm
inducer:76.00mm
Exduder:96.00mm
Tapered tip exducer:101.40mm
Tip height:9.31mm
Superback:11.00mm
Overall height:49.80mm
bore size :7.95mm
Trailing Angle:45
Cutback:0.00
SP height angle:-8.50
Splitter height:22.00
Blade height:32.58mm
It is custom size,please check carefully before buying.
7+7 blades
forward rotation
Tapered tip angle:18 degree
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
