| Model Number: | S200-EFR |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:S200-EFR forward

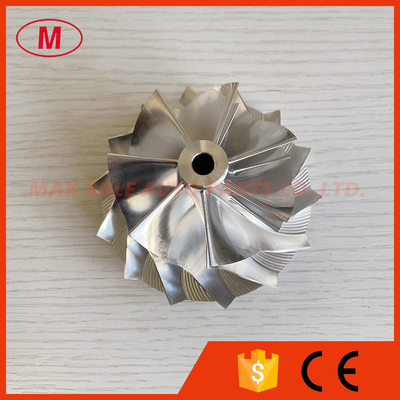

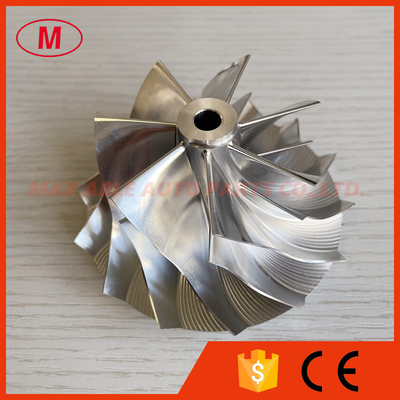

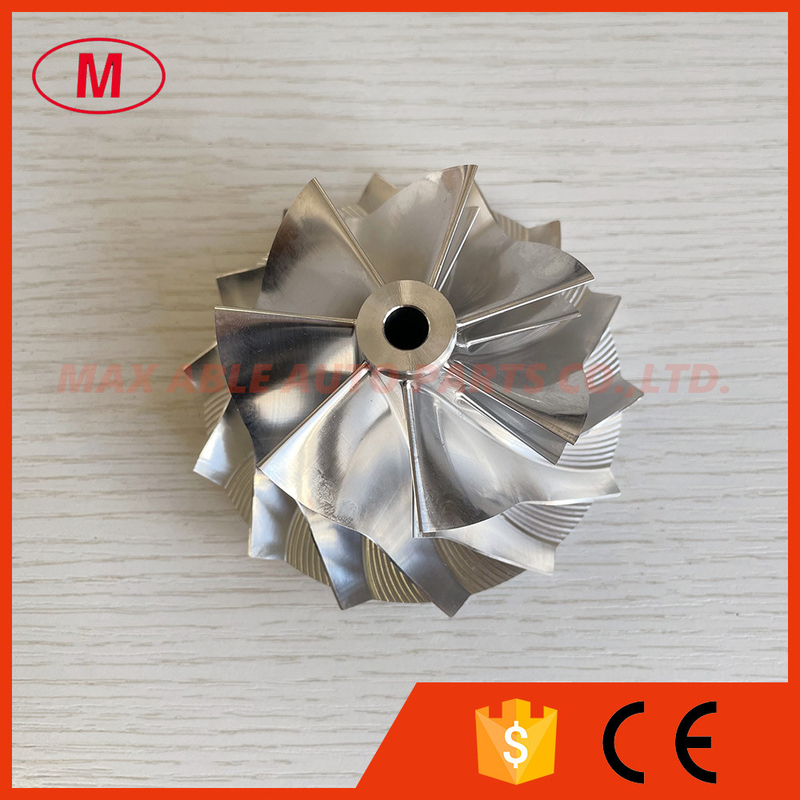

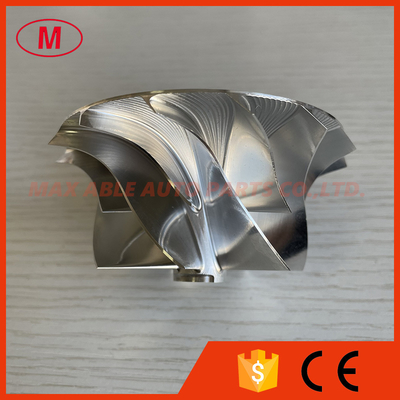

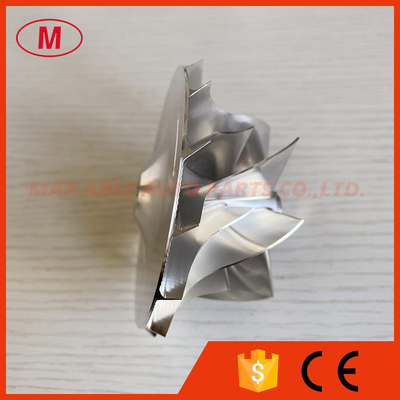

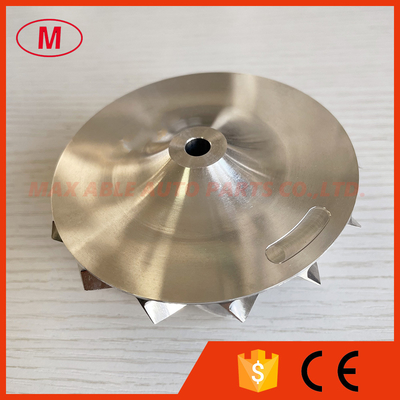

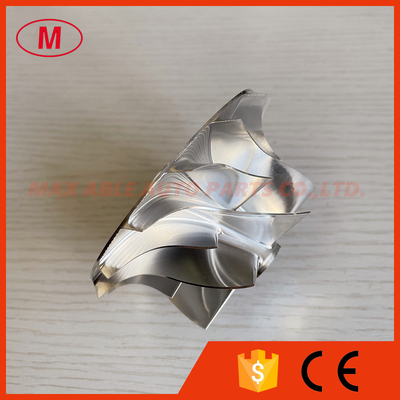

2.S200-EFR 1283-123-2007 62.60/84.48mm 7+7 blades high performance turbo aluminum 2618/milling/billet compressor wheel for EFR8374 179258/179357/179393
3.Size:
Nose diameter:15.68mm
Inducer:62.60mm
exducer:84.48mm
Tapered tip exducer:90.56mm
Tip height :6.27mm
superback:6.20mm
Overall height:48.00mm
Bore size:7.00mm
Trailing angle:55
Cutback:0.0
Splitter height:23.80mm
SP height angle:-6.00
Blades height:38.30mm
7+7blades
Forward rotation
Tapered tip angle:30 degree
It is for OE compressor housing.
4.High quality and competitive price.
5.Any questions please send email to me.
All the compressor wheel have been balanced.
We can produce as your requirement.
