Brand Name: | NO |
Certification: | ISO |
Model Number: | TD05H 20G reverse |
Minimum Order Quantity: | 1PC |
---|---|
Price: | DISCUSS |
Packaging Details: | neutral packing |
Delivery Time: | 3-7 DAYS |
Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
Supply Ability: | 1000PCS |
1. MODEL:TD05H 20G reverse

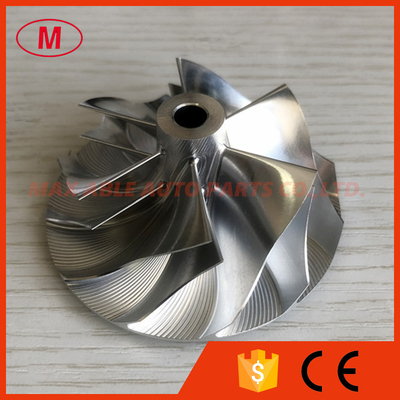

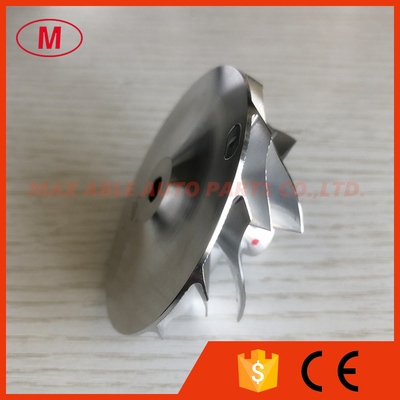

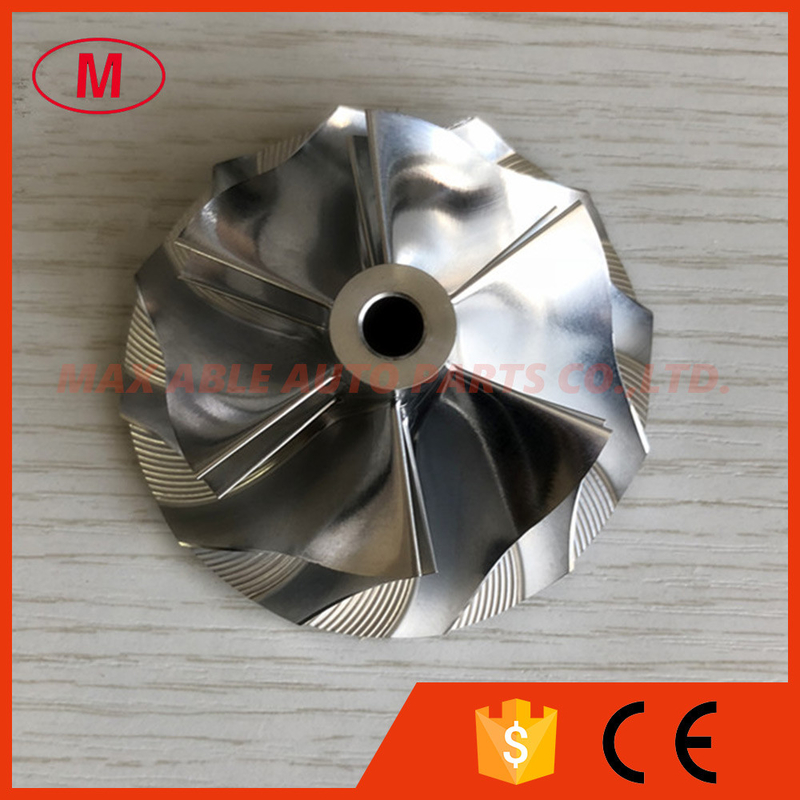

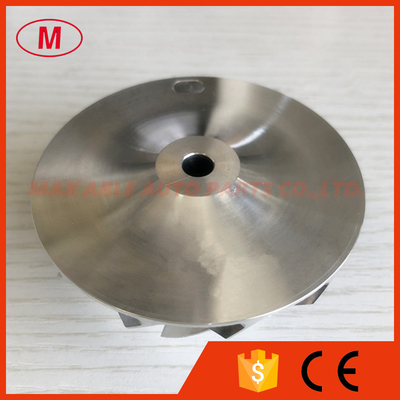

2.TD05H 20G reverse 6+6 blades 52.56/68.01mm 49179-43400 Turbo Billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:13.50mm
inducer:52.56mm
Inducer:68.01mm
Tip height:6.03mm
Superback:2.90mm
bore size :6.50mm
bore type:through
Trailing Angle:40
Cutback:0.0
Blades height:22.94mm
Splitter height:15.70mm
Sp height angle:-3.90
overall height:31.50mm
Tapered tip Angle:0 degree
6+6 blades
reverse rotation
It is for OE compressor housing
4.High quality and competitive price.
5.if you want more details, please send email to me.
