| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | TD05H 16G |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |
1. MODEL:TD05H 16G forward

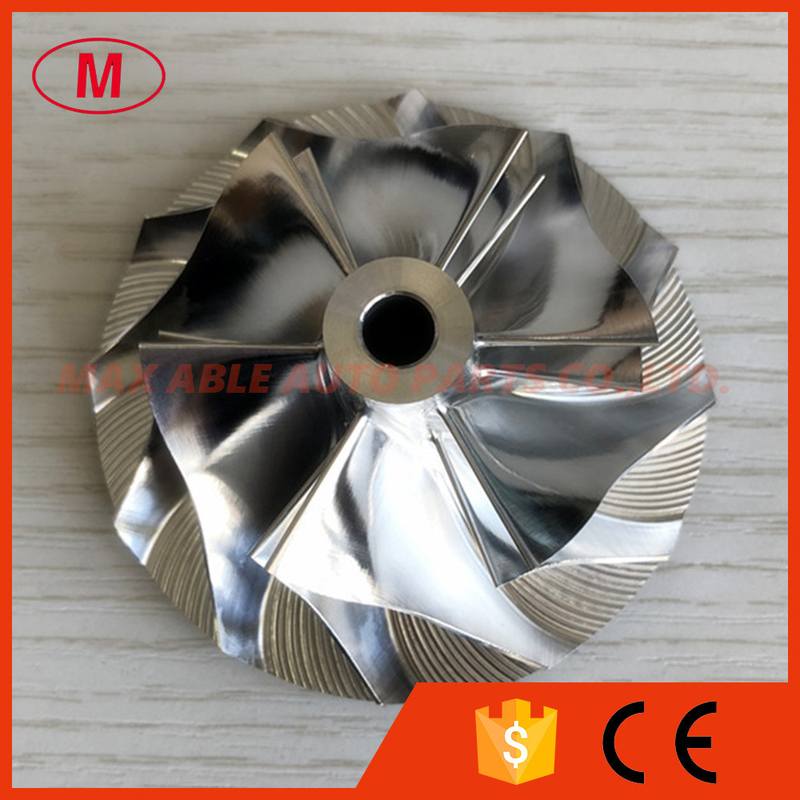

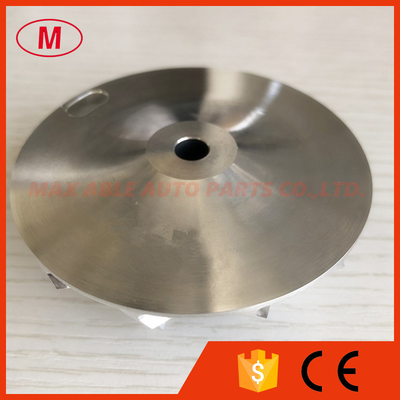

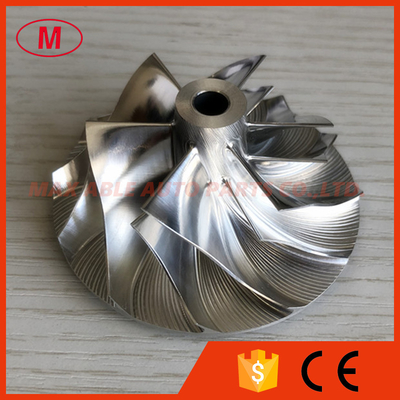

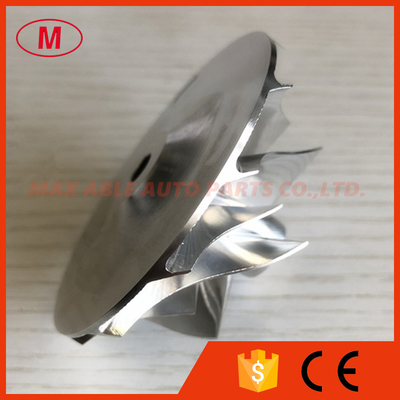

2.TD05H 16G 48.30/68.01mm 6+6 blades 49178-01560 Turbo Billet/milling/Aluminum 2618 compressor wheel
3.Size:
Nose diameter:13.50mm
inducer:48.30mm
Inducer:68.01mm
Tip height:5.10mm
Superback:2.90mm
Overall height:31.50mm
bore size :6.50mm
bore type:through
Blades height:22.94mm
Trailing Angle:40 degree
Tapered tip Angle: 0 degree
Cutback:0.0
Splitter height:15.45mm
Sp height angle:-3.80
6+6 FORWARD
It is for OE compressor housing
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the compressor wheel have been balanced.
