| Model Number: | TD04H 15T |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:TD04H 15T Forward

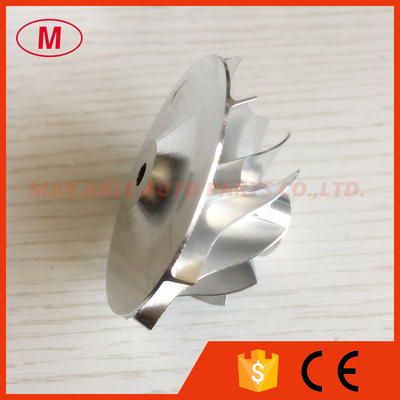

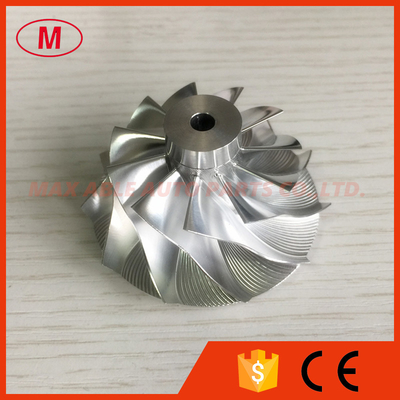

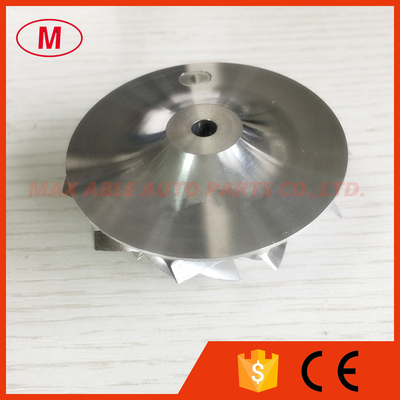

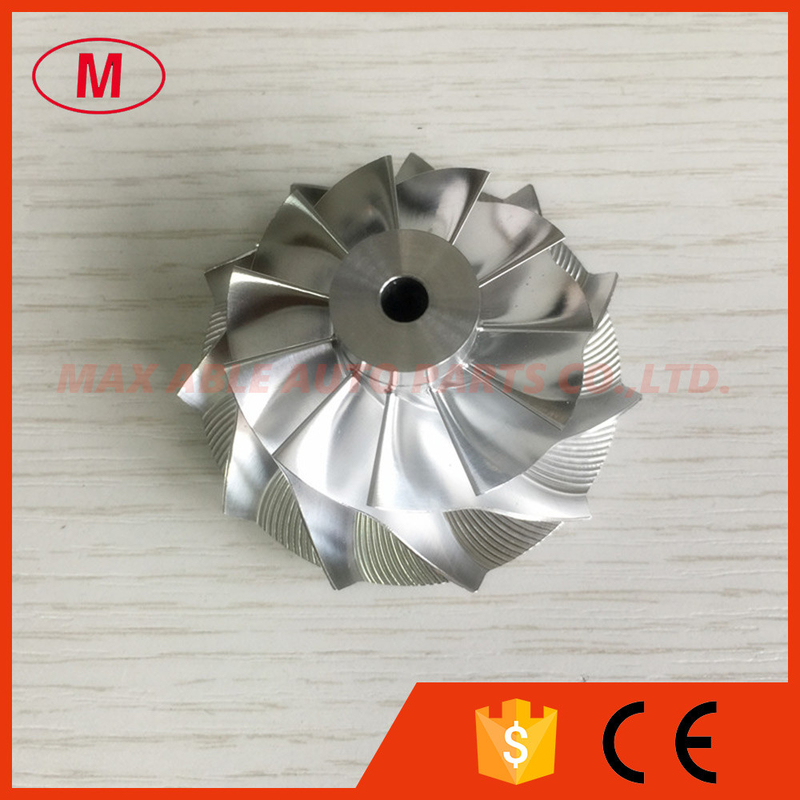

2. TD04H 15T 41.93/55.69mm 11+0 blades thicknose Turbo Billet/Milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:16.23mm
Inducer:41.93mm
Exducer:55.69mm
Tapered tip exducer:59.97mm
Tip height:4.71mm
Superback:3.70mm
Overall height:32.00mm
Bore size:5.00mm
bore type:through
Blades height:20.47mm
Trailing angle:60 degree
Cutback:0.0
SP height angle:0.00
Splitter height:0.00mm
Tapered tip angle:30 degree
11+0 blades
forward rotation
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.Any questions please send email to me.
6.Application: M-itsubishi
All the compressor wheels have been balanced.
