| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | TD04HL |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |

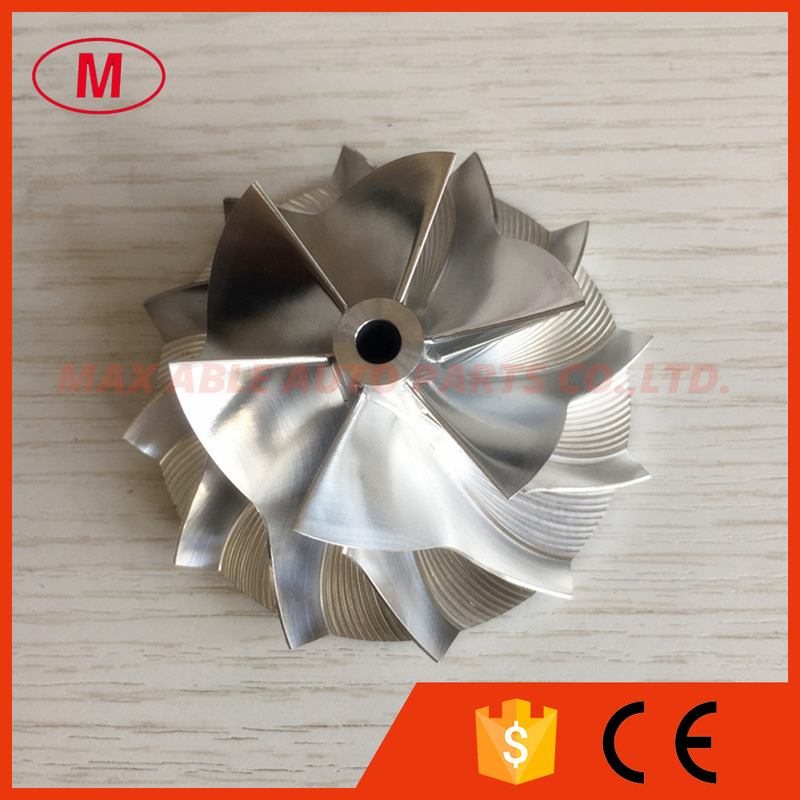

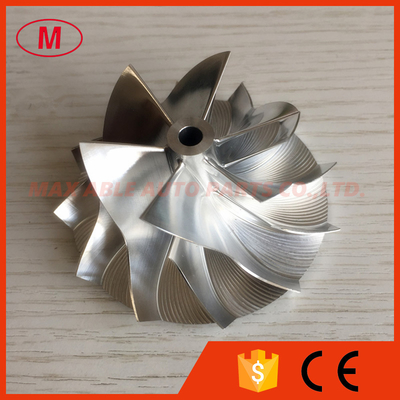

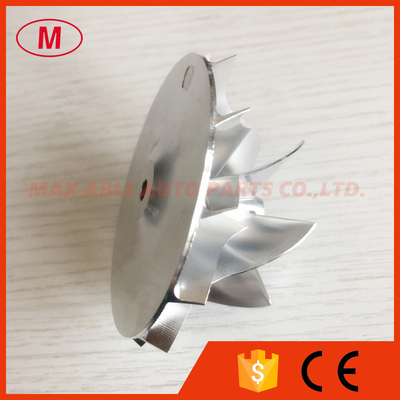

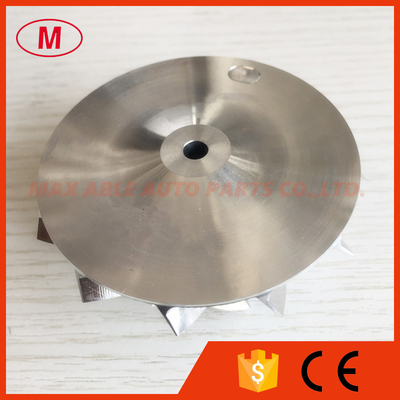

1.Model:TD04HL FORWARD
3.Size:
Nose diamter:10.05mm
inducer:45.00mm
Exduder:64.89mm
Tapered tip exducer:70.86mm
Tip height:6.28mm
Superback:1.85mm
Overall height:29.00mm
bore size :5.00mm
Trailing Angle:60
Cutback:-19.3
SP height angle:-8.50
Splitter height:15.00
Blade height:30.17mm
Tapered tip angle:29.5 degree
It is custom size,please check carefully before buying.
6+6 blades
Forward rotation
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
